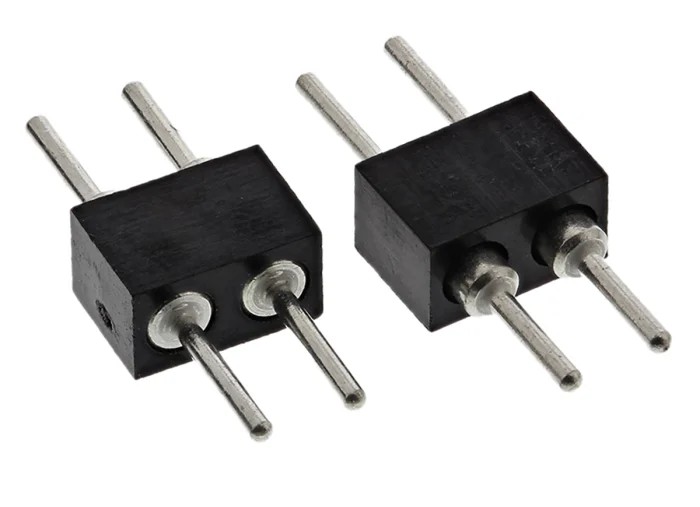

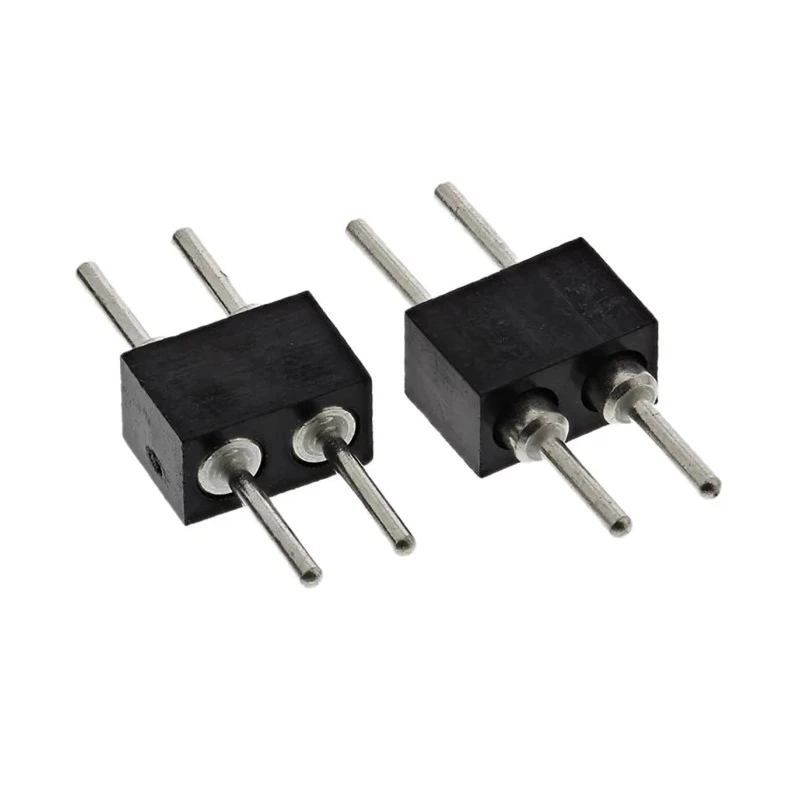

Preci-Dip 830 Series Straight Through Hole Pin Header 2 Contact 2 mm Pitch 1 Row Unshrouded 830-80-002-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Constructed with a fibreglass reinforced polymer housing for durability and insulation.
- Features brass male contacts with tin plating for excellent electrical conductivity.
- Designed for through hole mounting with solder termination for secure installation.
- Operates across a wide temperature range from -55°C to 125°C, suitable for various environments.
- Rated for a maximum current of 3 A and voltage of 150 V.
- Compact 2 mm pitch with a single row configuration optimizes PCB space.
- Unshrouded design allows easy access for mating connectors and maintenance.
- Manufactured according to UL 94V-0 standards ensuring flame retardant properties.
Product Description
Preci-Dip 830-80-002-10-001101 is a straight through hole pin header designed for printed circuit board (PCB) applications. This unshrouded pin header features 2 male contacts arranged in a single row with a precise 2 mm pitch, enabling high-density PCB layouts.
The housing is made from fibreglass reinforced polymer, providing strong mechanical integrity and electrical insulation. The brass contacts are tin-plated to ensure reliable electrical connection and corrosion resistance. Termination is through hole with a solder tail length of approximately 2.9 mm, facilitating secure solder joints.
Engineered to operate under demanding conditions, it sustains temperatures ranging from -55°C to 125°C, making it suitable for industrial, electronics manufacturing, laboratory, and commercial use cases. The connector is rated for 3 amperes current and up to 150 volts voltage, accommodating a variety of low-voltage circuit requirements.
The unshrouded design provides easy access to the pins for quick mating and disconnection, with a straight orientation and male contact gender optimizing assembly convenience. Fibreglass reinforced polymer housing enhances durability and electrical insulation.
Brass tin-plated male contacts ensure reliable conductivity and corrosion resistance. Through hole solder termination enables strong mechanical fixing on the PCB. Wide operating temperature range supports usage in diverse environments.
Rated for 3 A current and 150 V voltage for safe signal and power transmission. Compact 2 mm pitch single-row configuration conserves PCB space. UL 94V-0 standard compliant housing provides flame retardant safety. Designed for industrial, laboratory, and commercial electronics applications.
This product is made in Switzerland, reflecting high manufacturing standards. For further advanced PCB connector solutions, explore the complete range of Preci-Dip products available through EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3 A and a maximum voltage of 150 V.
The housing is made from fibreglass reinforced polymer, while the contacts are made of brass with tin plating for electrical conductivity.
It features a compact 2 mm pitch with a single row configuration, optimized for high-density PCB layouts.
It operates effectively across a wide temperature range from -55°C to 125°C, suitable for various environments.
This connector uses through hole solder termination for secure installation on the PCB.
The pin header has a straight orientation, which facilitates easy assembly and access to the contacts.
This model features 2 male contacts arranged in a single row.
Yes, it is manufactured according to UL 94V-0 standards, ensuring flame retardant properties.
This pin header is made in Switzerland, reflecting high manufacturing standards.
It is designed for use in industrial, laboratory, and commercial electronics applications.
The contacts in this model are male, designed for secure mating with compatible connectors.
The unshrouded design allows for easy access to the pins for quick mating and disconnection, enhancing usability.
