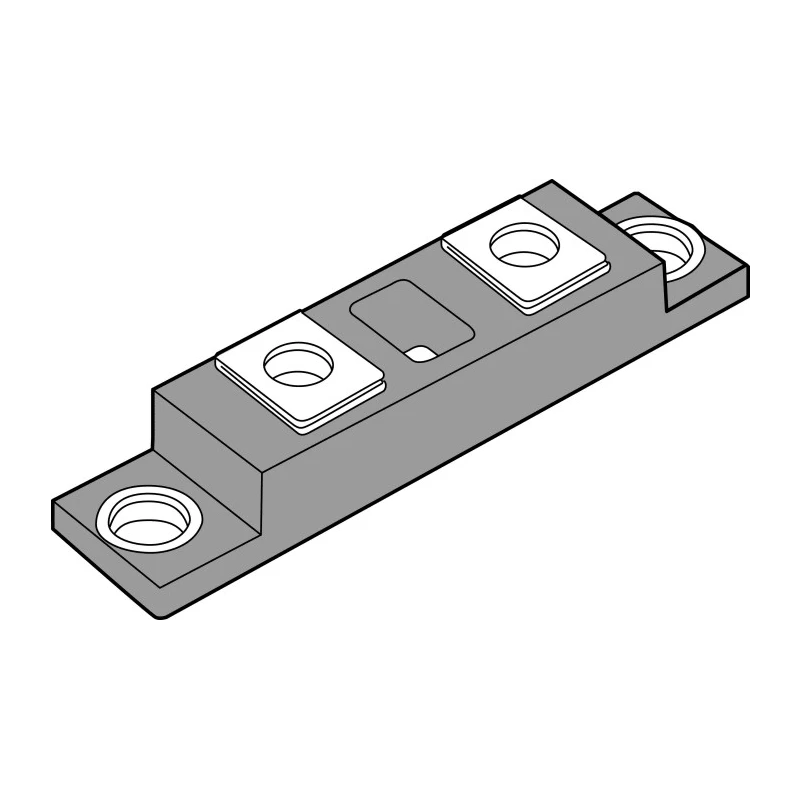

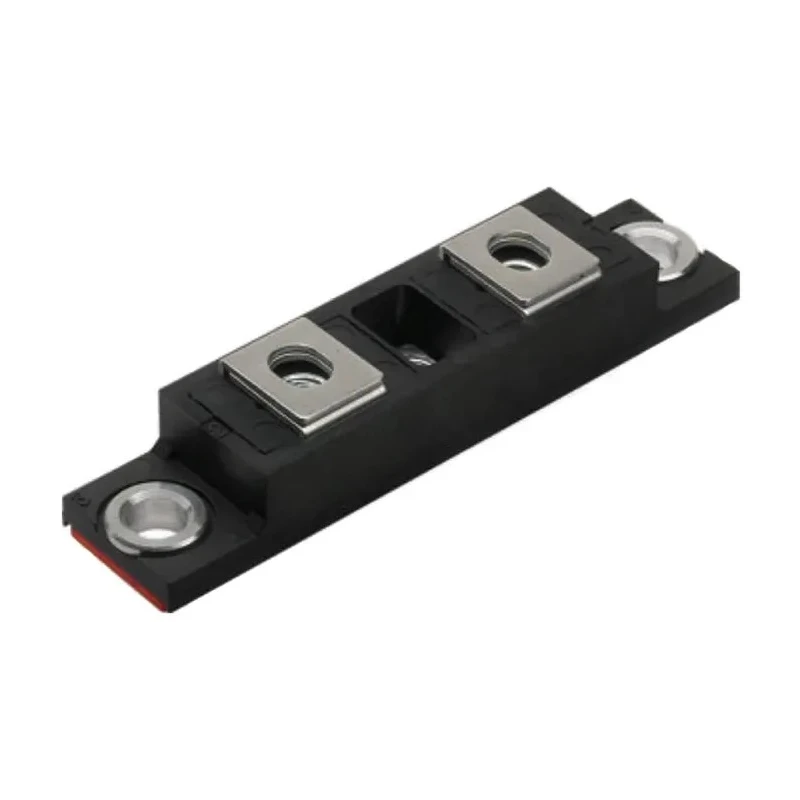

Vishay 100 V 400 A Schottky Diode 3-Pin Surface Mount TO-244 VS-403CNQ100PBF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.5mm |
| Brand | Vishay |
| Height | 17.5mm |
| Length | 93mm |
| Model | VS-403CNQ100PBF |
| Width | 21mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-244 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 400A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 80mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25.5kA |
| Maximum Forward Voltage Vf | 690mV |
Key Features
- Maximum continuous forward current rated at 400 A.
- Peak reverse repetitive voltage of 100 V ensures robust reverse blocking capability.
- Low maximum forward voltage drop of 690 mV for efficient power handling.
- Wide operating temperature range from -55°C to 175°C supports harsh industrial environments.
- Compact TO-244 surface mount package with 3 pins for reliable mounting and integration.
- Peak non-repetitive forward surge current rated at 25.5 kA for surge handling.
- Common cathode diode configuration suitable for power rectification applications.
- Designed for fast switching and low power loss in industrial electronic circuits.
Product Description
Vishay VS-403CNQ100PBF Schottky Diode is a high-performance semiconductor device designed for power and industrial applications requiring efficient rectification and fast switching. Housed in a TO-244 surface mount package with 3 pins, it features a maximum continuous forward current of 400 A and peak reverse repetitive voltage of 100 V, providing reliable operation under demanding electrical loads.
The diode exhibits a low maximum forward voltage drop of 690 mV, which minimizes power loss and improves system efficiency. Its robust design supports a peak non-repetitive forward surge current of 25.5 kA, enabling it to withstand high transient currents without degradation.
Operating over a broad temperature range from -55°C to 175°C, this Vishay diode is suitable for harsh industrial environments in sectors including power electronics, industrial automation, and electrical distribution. Its common cathode configuration and fast reverse recovery characteristics make it an ideal choice for high-frequency switching power supplies and rectifiers.
With precise dimensions of 93 mm length, 21 mm width, 17.5 mm height, and diameter of 17.5 mm, the TO-244 package ensures reliable mounting and effective heat dissipation. While the product does not carry specific automotive or industrial standards approval, its solid engineering ensures dependable performance.
Maximum continuous forward current rated at 400 A. Peak reverse repetitive voltage of 100 V. Low maximum forward voltage of 690 mV. Wide operating temperature range from -55°C to 175°C. Compact TO-244 surface mount package with 3 pins.
Peak non-repetitive forward surge current capability of 25.5 kA. Common cathode diode configuration. Fast switching performance for industrial electronics. Dimensions: Length 93 mm, Width 21 mm, Height 17.5 mm, Diameter 17.5 mm.
This Vishay Schottky diode is well suited for industrial power conversion, power supplies, and other electronic equipment requiring high current rectification with minimal losses. EnvMart offers this component to support your efficient and reliable electronics design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is rated at 400 A.
This diode has a peak reverse repetitive voltage of 100 V, which ensures robust reverse blocking capability.
The maximum forward voltage drop is 690 mV, which contributes to efficient power handling.
It operates over a wide temperature range from -55°C to 175°C, making it suitable for harsh industrial environments.
This model comes in a compact TO-244 surface mount package with 3 pins.
The diode is rated for a peak non-repetitive forward surge current of 25.5 kA, allowing it to handle high transient currents.
It features a common cathode diode configuration, suitable for power rectification applications.
The dimensions are 93 mm in length, 21 mm in width, and 17.5 mm in height, with a diameter of 17.5 mm.
This Schottky diode is well suited for industrial power conversion, power supplies, and other electronic equipment requiring high current rectification.
The peak reverse current is rated at 80 mA.
This model belongs to the VSX series of Schottky diodes.
The country of origin for this diode is India.
