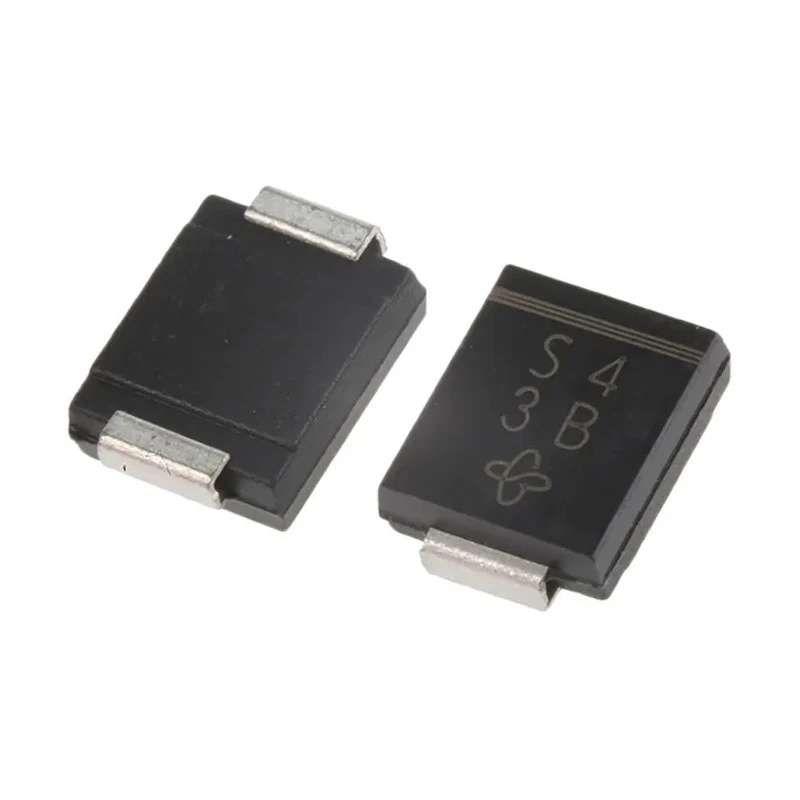

Vishay 40 V 3 A Schottky Diode Surface Mount DO-214AB Package with Single Diode Configuration SS34-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 7.11mm |
| Model | SS34-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SS34 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- Provides 3 A maximum continuous forward current.
- Supports peak reverse voltage of 40 V.
- Offers very low forward voltage drop of 0.5 V.
- Exhibits fast switching with extremely short reverse recovery time.
- Can handle peak non-repetitive forward surge current up to 100 A.
- Operates across a temperature range from -55°C to 125°C.
- Single Schottky diode configuration with 2 pins.
- Compact DO-214AB (SMC) surface mount package dimensions 7.11 x 6.22 mm.
Product Description
Vishay SS34-E3/57T is a high-performance Schottky diode designed to deliver 3 amps maximum continuous forward current and withstand a peak reverse voltage of 40 volts. Its surface mount DO-214AB (SMC) package enables compact PCB designs often required in power supply, rectifier, and industrial switching applications.
This diode exhibits an exceptionally low forward voltage drop of just 0.5 V, directly contributing to reduced power loss and higher energy efficiency in circuits. The fast switching speed and extremely short reverse recovery time make it especially suitable for high-frequency switching power supply and converter circuits.
Designed with robust electrical capabilities, it can comfortably handle peak non-repetitive forward surge currents up to 100 A, providing resilience to transient conditions commonly seen in industrial and consumer power electronics.
Operating temperature range from -55°C to 125°C ensures stable performance in harsh environments and varied operating conditions. The diode's low peak reverse current of 500 µA guarantees minimal leakage current under reverse bias, enhancing circuit reliability.
The single-diode Schottky configuration with 2 pins offers simple integration into existing designs. Its compact external dimensions of 7.11 mm length and 6.22 mm width allow usage in space-constrained electronics assemblies.
While not certified to automotive standards, the SS34-E3/57T is widely used in industrial, power electronics, consumer electronics, telecommunications, and general electronic manufacturing sectors.
Set contains 1 Pcs Vishay SS34-E3/57T Schottky Diode in DO-214AB package.
Explore more high-quality semiconductor components and Schottky diode solutions in the Electronics & Electricals category at EnvMart to enhance your industrial and electronic designs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 A.
It supports a peak reverse voltage of 40 V.
This diode exhibits a very low forward voltage drop of 0.5 V.
The operating temperature range is from -55°C to 125°C.
It can handle peak non-repetitive forward surge currents up to 100 A.
The compact DO-214AB package dimensions are 7.11 mm in length and 6.22 mm in width.
This model has a single-diode configuration with 2 pins.
The peak reverse current is 500 µA.
It uses a surface mount type for installation.
It is widely used in industrial, power electronics, consumer electronics, telecommunications, and general electronic manufacturing sectors.
The country of origin is India.
This model belongs to the SS34 series of Schottky diodes.
