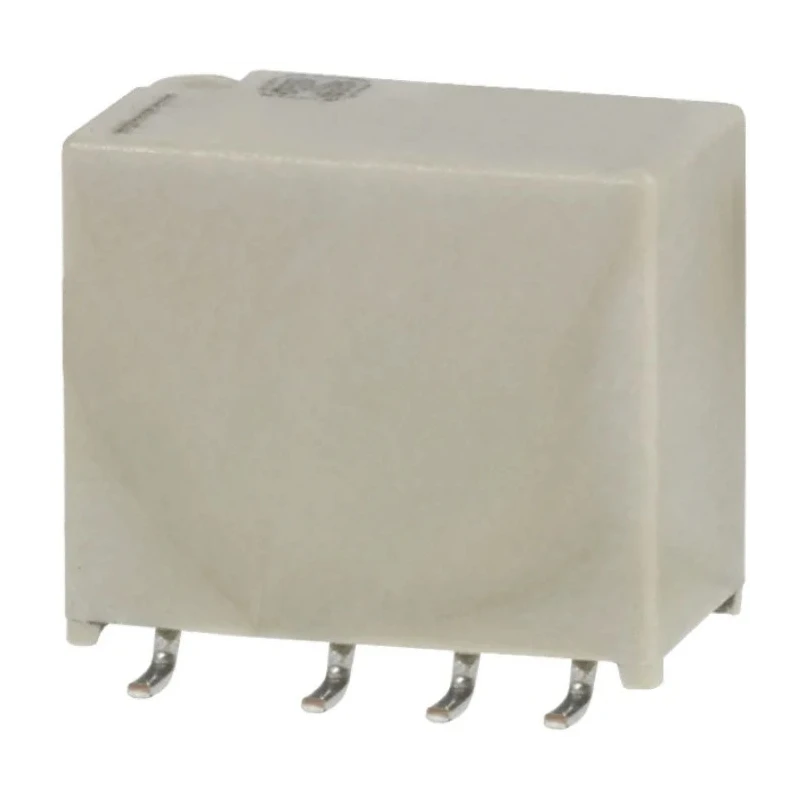

Panasonic Signal Relay 4.5V DC Coil 1A DPDT PCB Mount AGN200S4H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.9mm |
| Model | AGN200S4H |
| Width | 5.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 110V ac |
| Coil Power | 140mW |
| Panasonic PCB Signal Relay, 4.5V dc Coil, 1A, DPDTBrand | Panasonic |
Key Features
- Compact slim body with height of 9mm and footprint of 5.7 x 10.9mm suitable for high-density PCB applications.
- Gold plated silver aluminium contacts ensure excellent conductivity and reliability.
- High surge resistance with sealed construction allows automatic washing and enhanced durability.
- Operating temperature range from -40°C to 85°C suitable for a variety of industrial and commercial uses.
- Low coil power consumption of 140mW with coil resistance of 145Ω for energy-efficient operation.
- Designed for applications including telecommunications, measurement equipment, and audio-visual devices.
- PCB terminal mount type for easy and secure PCB integration.
Product Description
Panasonic AGN200S4H signal relay features a 4.5V DC coil voltage, rated switching current of 1A, and a double-pole double-throw (DPDT) contact configuration designed for PCB mounting. This relay boasts a compact slim body measuring 9mm in height and a small surface area of 5.7 x 10.9 mm, allowing for increased packaging density on circuit boards.
The relay utilizes gold plated silver aluminium contacts ensuring high contact reliability and excellent electrical performance. Its sealed construction supports automatic washing processes and provides high surge resistance, making it suitable for demanding industrial environments.
Operating reliably within a temperature range of -40°C to 85°C, the Panasonic AGN200S4H is ideal for use in telecommunications, measurement, audio-visual equipment, and other industrial and commercial applications where dependable signal relay performance is essential.
Power consumption is minimized with a coil resistance of 145Ω and coil power of just 140mW, optimizing energy efficiency. It supports a switching voltage of up to 110V AC and 110V DC, ensuring versatility in handling a wide range of switching tasks.
The PCB terminal mount allows secure connection to printed circuit boards, simplifying integration into various electronic assemblies. Compact slim body with height of 9mm and footprint of 5.7 x 10.9mm suitable for high-density PCB applications.
Gold plated silver aluminium contacts ensure excellent conductivity and reliability. High surge resistance with sealed construction allows automatic washing and enhanced durability. Operating temperature range from -40°C to 85°C suitable for a variety of industrial and commercial uses.
Low coil power consumption of 140mW with coil resistance of 145Ω for energy-efficient operation. Wide switching voltage capability: 110V AC and 110V DC supports versatile load types. Designed for applications including telecommunications, measurement equipment, and audio-visual devices.
PCB terminal mount type for easy and secure PCB integration. This Panasonic signal relay is manufactured in Japan, ensuring high-quality production standards. Explore more electronics and electrical products in the Signal Relay category at EnvMart for reliable industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AGN200S4H signal relay has a coil voltage of 4.5V DC.
This relay has a maximum switching current of 1A.
The contact configuration of this model is double-pole double-throw (DPDT).
The dimensions of the AGN200S4H relay are 9mm in height, 5.7mm in width, and 10.9mm in length.
The operating temperature range for the AGN200S4H is from -40°C to 85°C.
This relay uses PCB terminal mounting for secure integration into printed circuit boards.
The coil resistance of this relay is 145Ω.
The coil power consumption of the AGN200S4H relay is 140mW.
This relay is suitable for applications in telecommunications, measurement equipment, and audio-visual devices.
The contact material used in this relay is gold plated silver aluminium.
The maximum switching voltage for this relay is 110V AC and 110V DC.
Yes, the AGN200S4H relay complies with RoHS standards.
