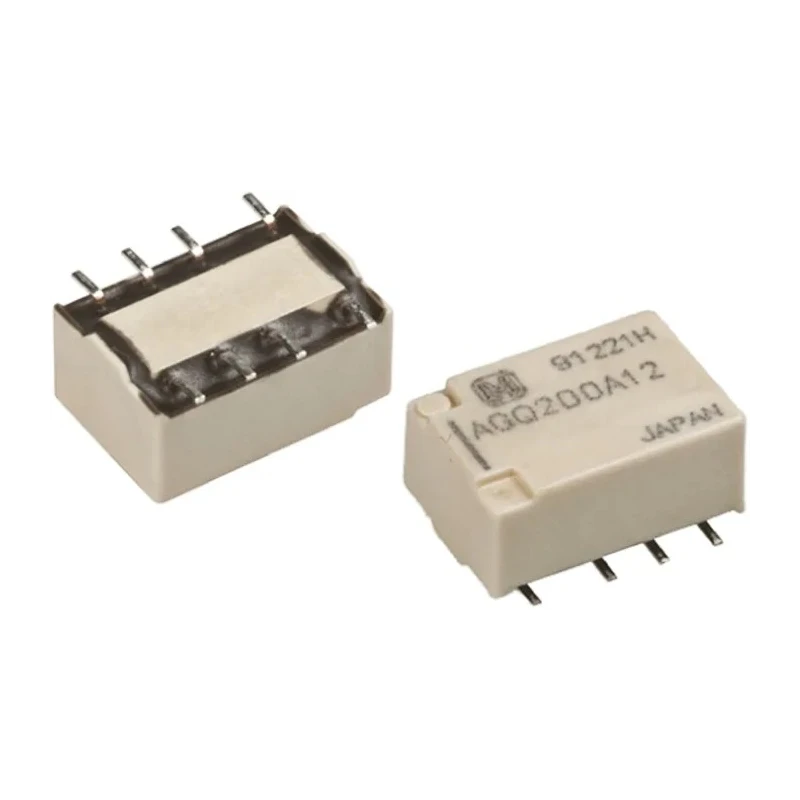

Panasonic Surface Mount Signal Relay 12V DC Coil 1A DPDT, 10.6 x 7.2 x 5.4 mm Compact Flat Body AGQ210A12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 10.6mm |
| Model | AGQ210A12 |
| Width | 7.2mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | AGQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.44kΩ |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features
- Compact flat body with footprint of 10.6 x 7.2 mm and height of 5.4 mm.
- Coil power consumption of only 100 mW ensures energy efficiency.
- Gold plated contacts provide excellent conductivity and corrosion resistance.
- Operating temperature range from -40°C to 85°C allows use in harsh environments.
- High surge resistance enhances durability and system stability.
- Sealed construction enables automatic washing and protects internal components.
- Rated switching current of 1 A with switching AC voltage up to 125 V and DC voltage up to 110 V.
- Surface mount type suitable for compact PCB applications.
Product Description
Panasonic AGQ210A12 Surface Mount Signal Relay features a 12V DC coil voltage and a DPDT (Double Pole Double Throw) contact configuration. It is designed with a compact flat body measuring 10.6 x 7.2 x 5.4 mm, making it ideal for applications requiring high packaging density and small footprint.
The relay consumes nominal operating power of 100 mW, contributing to efficient power usage. It is constructed with gold plated contacts ensuring low contact resistance and improved reliability. The coil resistance is measured at 1.44 kΩ, sustaining consistent coil operation.
Recommended for industrial and consumer electronics, this relay offers a wide operating temperature range from -40°C to 85°C, allowing it to function in demanding conditions. Its sealed construction design supports automatic washing processes, enhancing manufacturing flexibility and reliability in humid or contaminated environments.
The Panasonic AGQ series relay is engineered for high surge resistance withstanding up to 2500 V (2 x 10 μs) and 1500 V (2 x 160 μs), ensuring protection against voltage spikes. It offers functional shock resistance of 705 m/s² and vibration resistance of 10 to 55 Hz to maintain stable switching operations.
With switching capabilities of 1 A current, it supports switching AC voltages up to 125 V and DC voltages up to 110 V with a maximum switching power of 30 W. The surface mount terminal type supports automatic PCB assembly techniques.
This relay finds applications in telecommunications equipment, security systems, consumer electronics, telephone switchboards, audio visual devices, and measurement instruments requiring reliable signal relay performance.
Compact design with 10.6 x 7.2 x 5.4 mm dimensions. Energy-efficient 100 mW coil power consumption. Gold plated contacts for superior conductivity. Wide operating temperature range from -40°C to 85°C. High surge and vibration resistance.
Sealed construction suitable for automatic washing. Surface mount type for compact PCB integration. Suitable for industrial, telecommunications, and consumer electronics applications. Explore more Panasonic Signal Relays and related components on EnvMart to fulfill your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a rated switching current of 1 A.
This model operates with a coil voltage of 12V DC.
The relay has dimensions of 10.6 mm in length, 7.2 mm in width, and 5.4 mm in height.
It can switch AC voltages up to 125 V and DC voltages up to 110 V.
The coil power consumption is 100 mW, contributing to energy efficiency.
It features a DPDT (Double Pole Double Throw) contact configuration.
The operating temperature range is from -40°C to 85°C.
The contacts are made of gold plated material, ensuring excellent conductivity.
Yes, it has a sealed construction that supports automatic washing processes.
The coil resistance is measured at 1.44 kΩ.
The maximum switching power is 30 W.
This relay complies with RoHS standards.
