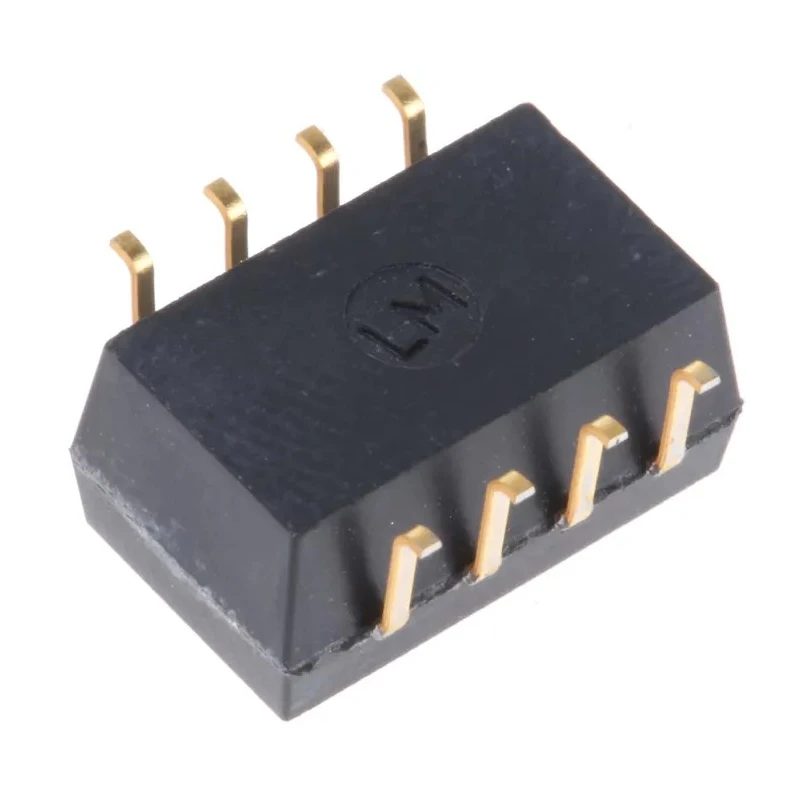

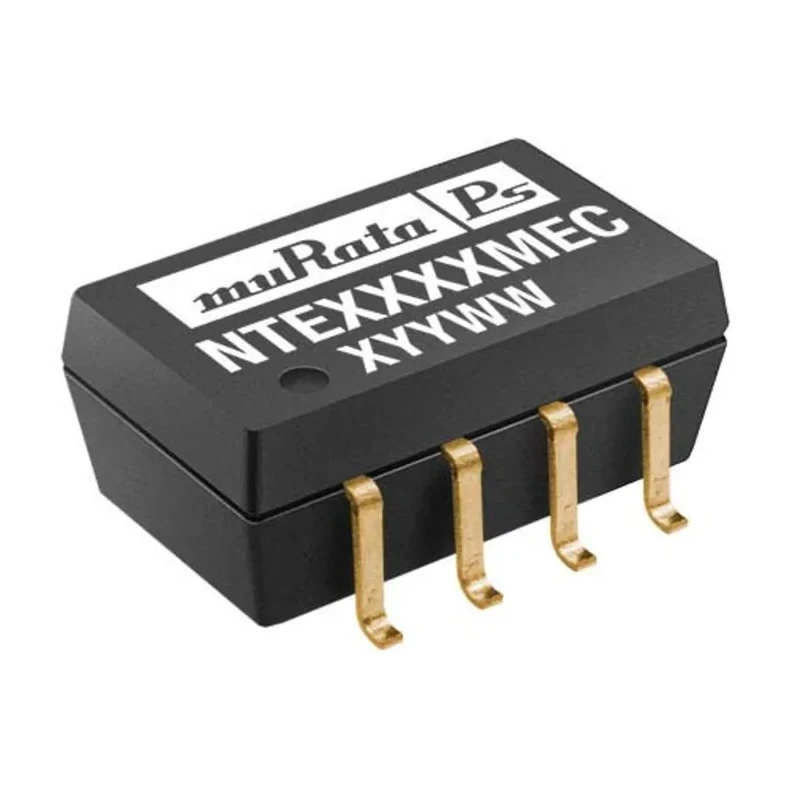

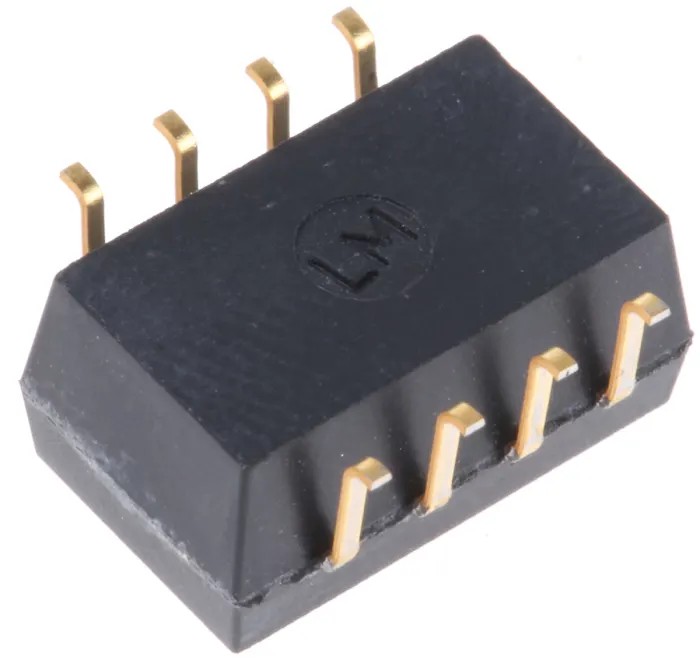

Murata Power Solutions DC/DC Converter Surface Mount, 5V DC Output, 200 mA, 5V DC Input, 2.97 V Minimum Input, 1 W NTE0505MC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NTE DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 68% |
| Length | 12.7mm |
| Model | NTE0505MC |
| Depth | 6.35mm |
| Gross Weight | 1.2g |
| Width | 7.7mm |
| Mount Type | Surface Mount |
| Series | NTE |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 6.8mH |
| Number of outputs | 1 |
| Ripple and Noise | 170mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.97V |
| Number of Pins | 14 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- This converter supports a maximum operating temperature of 85 °C ensuring reliability in demanding applications.
- It features 1kV DC isolation voltage for safe voltage conversion and noise reduction.
- The compact surface mount package allows easy PCB integration with a small size of 12.7mm length, 7.7mm width, and 6.35mm depth.
- It operates efficiently with a 68% efficiency rating, providing steady ripple and noise of 170mV peak-to-peak.
- Designed with 14 pins and a plastic case with UL 94V-0 flame retardant material to meet safety standards.
- Wide operating temperature range from -40°C to 85°C accommodates industrial and commercial environments.
- The converter series NTE ensures matured technology for isolated DC power conversion.
Product Description
Murata Power Solutions NTE0505MC DC/DC Converter is a compact, reliable, and efficient isolated voltage converter designed for surface mount PCB integration. It features a 5V DC output voltage capable of delivering 200 mA output current powered by a 5V DC input with a minimum input voltage of 2.97V and maximum output power of 1 watt. The device operates at up to 85 °C maximum temperature, suitable for industrial and commercial electronic equipment.
This converter provides 1 kV DC isolation voltage which protects sensitive electronic components by isolating input and output circuits. Its ripple and noise are maintained around 170mV peak-to-peak, ensuring stable output performance required in precision applications. The compact size with dimensions 12.7mm length, 7.7mm width, and 6.35mm depth allows installation in tight PCB layouts.
Constructed with an encapsulated UL 94V-0 plastic package and furnished with 14 pins for reliable connections, the surface mount device complies with RoHS standards demonstrating environmental safety. Operating efficiency is approximately 68%, enabling power saving in continuous operation scenarios.
Typical applications include power supplies in industrial instrumentation, telecommunications, measurement devices, and other electronics requiring regulated isolated DC power conversion. The device supports extended temperature conditions from -40 °C up to 85 °C to endure harsh environmental conditions found in industrial fields.
This DC/DC converter is ideal for industrial, laboratory, telecommunications, and commercial electronics applications. Its surface mount design facilitates automated assembly and compact system design. Compliance with RoHS standards ensures eco-friendly manufacturing and usage.
The isolation voltage enhances safety for sensitive circuits and reduces electrical noise interference. Murata's NTE series product line is recognized for durability and performance in power conversion. Set your designs up for reliability and efficiency with Murata Power Solutions NTE0505MC DC/DC converter. Explore more DC/DC Converters and power supply solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 5V DC output voltage with a maximum output current of 200 mA.
The converter operates with a 5V DC input, with a minimum input voltage of 2.97V and a maximum input voltage of 5V DC.
It has a compact size of 12.7mm in length, 7.7mm in width, and 6.35mm in depth.
The NTE0505MC operates with an efficiency rating of approximately 68%.
The maximum operating temperature for this converter is 85 °C, making it suitable for demanding applications.
This converter features an isolation voltage of 1 kV DC, which enhances safety for sensitive electronic components.
It maintains a ripple and noise level of 170mV peak-to-peak, ensuring stable output performance.
This model is designed with 14 pins for reliable connections in surface mount applications.
It is a surface mount device, facilitating easy integration into PCB layouts.
Typical applications include power supplies in industrial instrumentation, telecommunications, and measurement devices.
This converter complies with RoHS standards, ensuring environmental safety in its manufacturing and usage.
The minimum operating temperature for the NTE0505MC is -40 °C, accommodating harsh environmental conditions.
