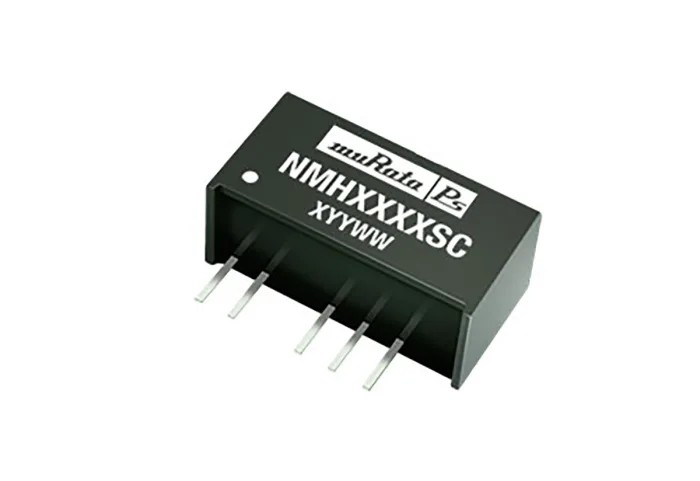

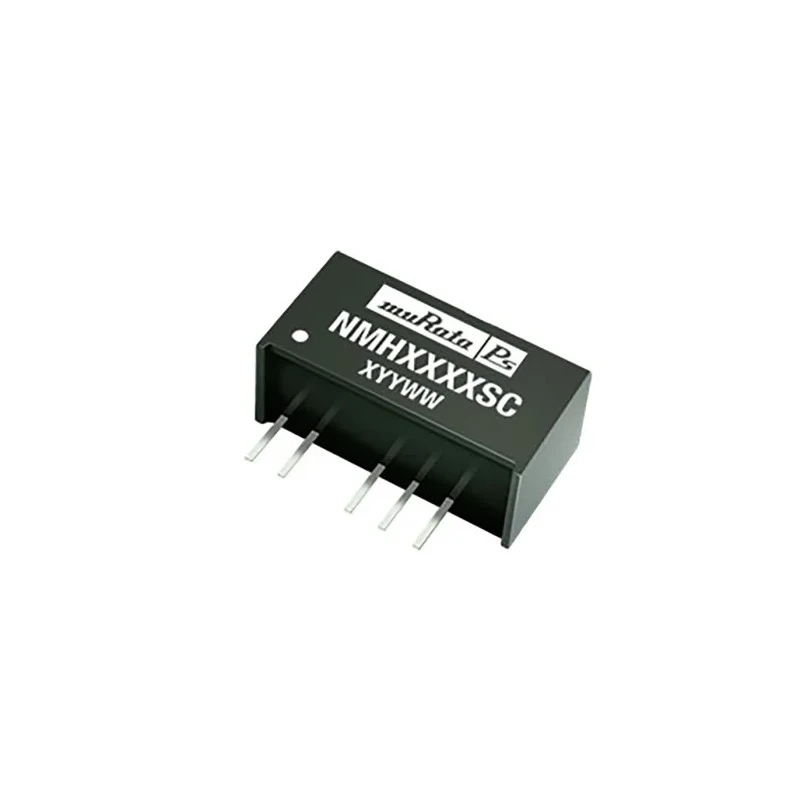

Murata Power Solutions NMH 2W SIP Dual Output Unregulated Isolated DC/DC Converter, 9V DC Output, 5.5V/4.5V Input NMH0509SC

Murata Power Solutions NMH0509SC is a 2 Watt SIP Dual Output Unregulated Isolated DC/DC Converter offering reliable power conversion with electrical isolation. This module provides +9V and -9V DC outputs from a low input voltage range of 4.5 to 5.5 Volts DC, making it suitable for compact electronic circuits requiring isolated dual supplies.

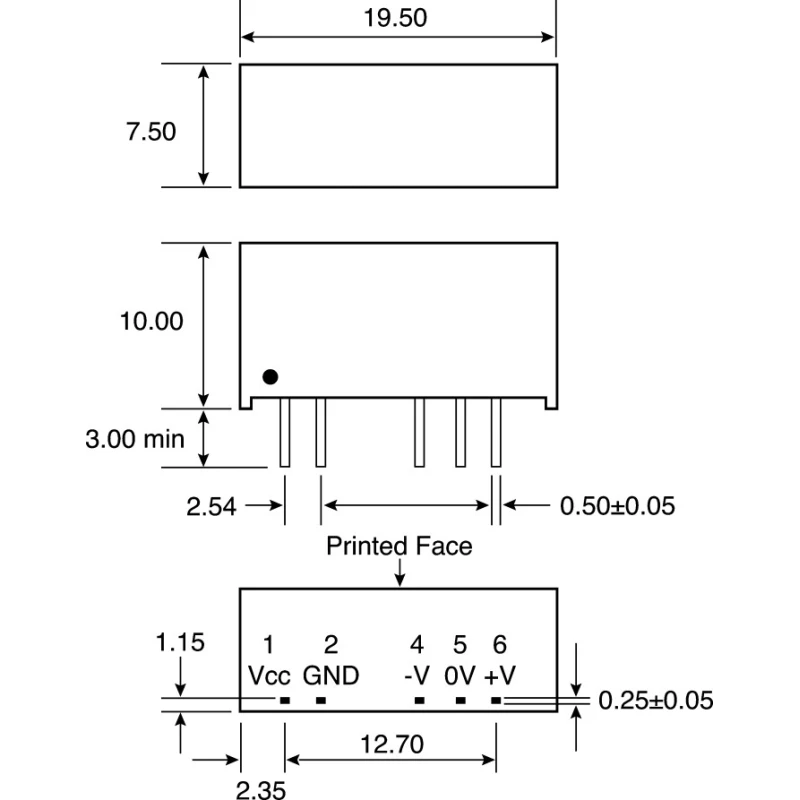

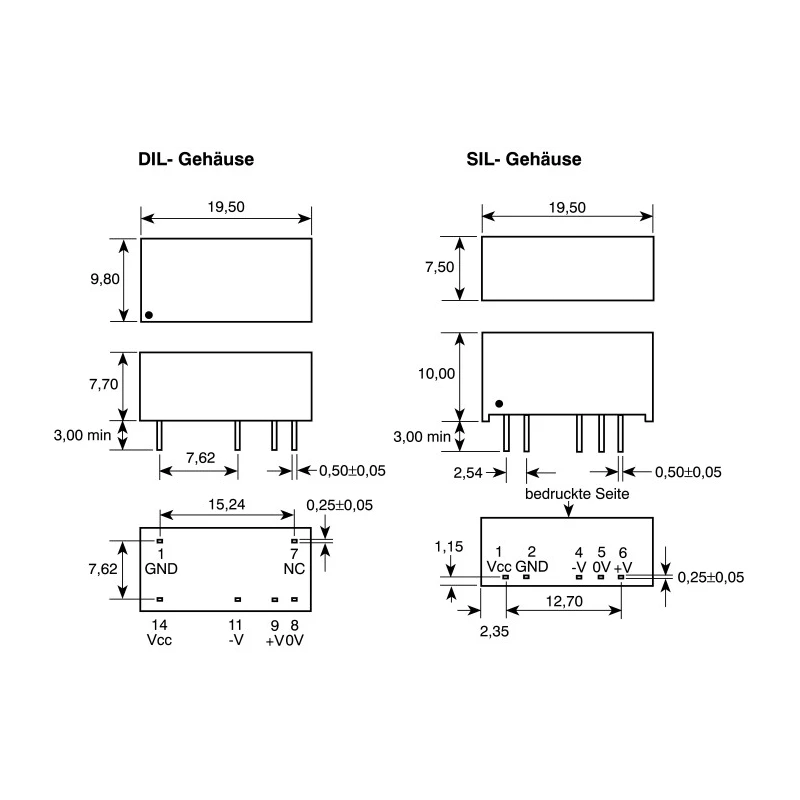

Encased in a compact SIP7 plastic package with a length of 19.5mm, width and depth of 10mm, it supports through-hole mounting for robust mechanical installation on PCBs. The unit is built with internal surface-mount technology and complies with UL 94V-0 flammability rating for safety.

Operating efficiently at 81%, this converter minimizes heat generation and improves overall system reliability. The isolation voltage of 1kV DC ensures electrical separation between input and output, crucial for sensitive instrumentation and industrial applications.

With a maximum output current of 111 mA per output and ripple and noise of 200mV peak-to-peak, this device suits power supplies where unregulated dual outputs are acceptable. Its operating temperature range extends from -40°C to 85°C, enabling use in demanding environments typical in industrial, laboratory instrumentation, communication equipment, and other commercial electronics.

No external components are necessary for standard operation, simplifying integration and reducing assembly costs. The high MTBF of 663000 hours to MIL-HDBK-217F at 25°C confirms its suitability for long-term deployment in critical applications.

Provides dual output voltages of +9V and -9V DC from 4.5V to 5.5V input. Delivers maximum output current of 111 mA in a compact SIP7 package. Electrical isolation rated at 1kV DC ensures safety and noise reduction. High efficiency of 81% minimizes power loss and thermal buildup.

Wide operating temperature range of -40°C to 85°C supports harsh conditions. RoHS compliant construction for environmental friendliness. Mean Time Between Failures of 663000 hours for dependable performance. No need for external components eases PCB design.

This DC/DC converter is ideal for industrial electronics, communication equipment, medical instruments, laboratory power supplies, and other embedded systems requiring stable isolated dual outputs with minimal footprint. Explore the complete range of Murata Power Solutions DC/DC Converters and related power supply components at EnvMart for your next project.
