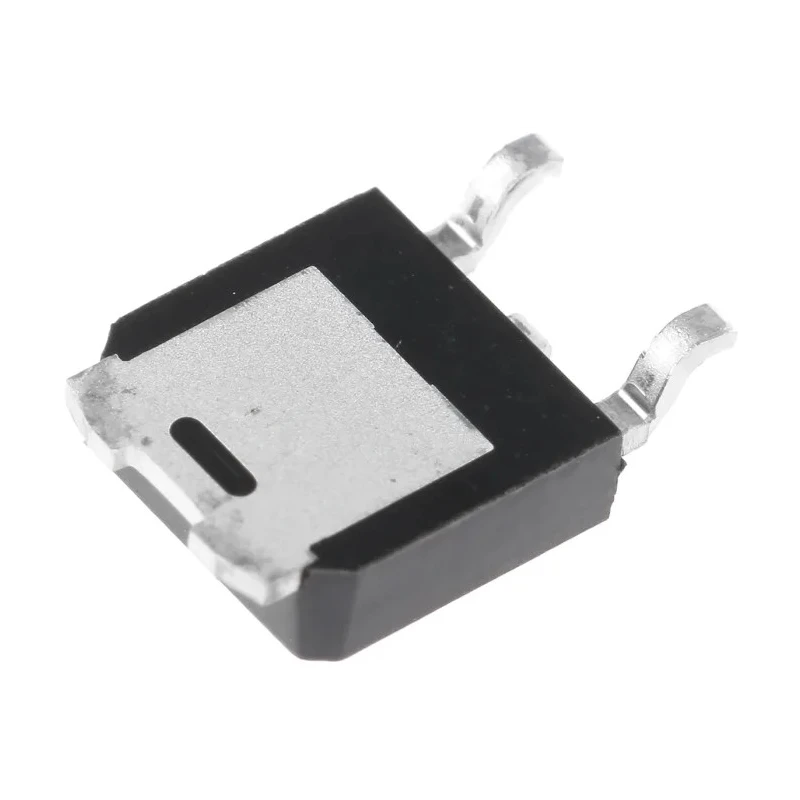

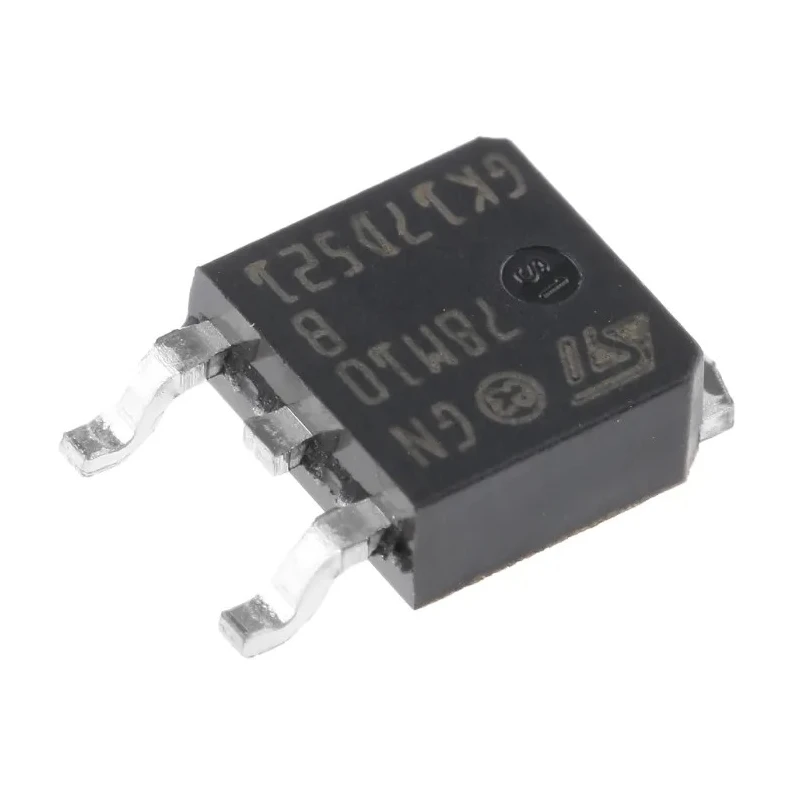

STMicroelectronics Voltage Regulator L78M10ABDT-TR 35V 3-Pin Surface Mount 6mA Quiescent Current L78Mxx Series
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L78M10ABDT-TR, Voltage Regulator 35V 3-Pin RS Stoc |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | L78M10ABDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | L78Mxx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- Provides a fixed positive output voltage suitable for local on-card regulation.
- Features a quiescent current consumption of 6mA to ensure efficient power usage.
- Compact dimensions of 6.6mm length, 6.2mm width, and 2.4mm height enable space-saving PCB layouts.
- Includes thermal shutdown, current limiting, and safe operating area protection for enhanced durability.
- Operates reliably up to a maximum temperature of 125°C, suitable for demanding environments.
- Available in the robust L78Mxx series with a 500mA current capacity.
- Requires no external components unless voltage or current adjustment is needed.
- Designed for use in a variety of applications including power distribution systems.
Product Description
STMicroelectronics L78M10ABDT-TR is a fixed positive linear voltage regulator designed for reliable power management in electronic systems. This surface mount device features a 3-pin package with compact dimensions of 6.6mm length, 6.2mm width, and 2.4mm height, making it ideal for space-constrained PCB applications.
Part of the L78Mxx series, it supports maximum input voltages up to 35V and provides a stable output voltage with low quiescent current of 6mA, enhancing overall efficiency. The device includes built-in protections such as thermal shutdown, current limiting, and safe operating area to ensure long-term durability and safe operations under various conditions.
This voltage regulator is widely suitable for on-card regulation, power distribution systems, and other industrial and commercial electronic applications requiring consistent voltage levels. It operates at a maximum temperature rating of 125°C, ensuring reliable performance in harsh environments.
No external components are required for standard operation, though voltage and current outputs can be adjusted externally if needed. The robust design supports reliable integration into power management circuits, aiding in smooth and efficient power supply tasks.
Provides fixed output voltage for stable power delivery. Compact 3-pin surface mount design for PCB integration. Built-in safety features including thermal shutdown and current limiting. High operating temperature rating of 125°C for reliability.
Low quiescent current reduces overall power consumption. Suitable for electronics, industrial, and manufacturing power systems. Easy installation without need for external components by default. Part of STMicroelectronics L78Mxx series with proven performance.
This product is essential for professional power regulation needs and is categorized under voltage regulators, suitable for industrial, manufacturing, and commercial electronics. Explore more Voltage Regulators and power management integrated circuits at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V.
It features a low quiescent current of 6mA, which enhances overall power efficiency.
The dimensions are 6.6mm in length, 6.2mm in width, and 2.4mm in height.
This model uses a surface mount design, making it suitable for compact PCB layouts.
The maximum operating temperature is 125°C, allowing reliable performance in demanding environments.
No external components are required for standard operation, unless voltage or current adjustments are needed.
It includes built-in protections such as thermal shutdown, current limiting, and safe operating area protection.
This voltage regulator is part of the L78Mxx series, known for its reliable performance.
The output voltage is positive, suitable for various applications requiring stable voltage levels.
It is suitable for on-card regulation, power distribution systems, and other electronic applications requiring consistent voltage levels.
This voltage regulator features a 3-pin configuration.
The country of origin for this product is India.
