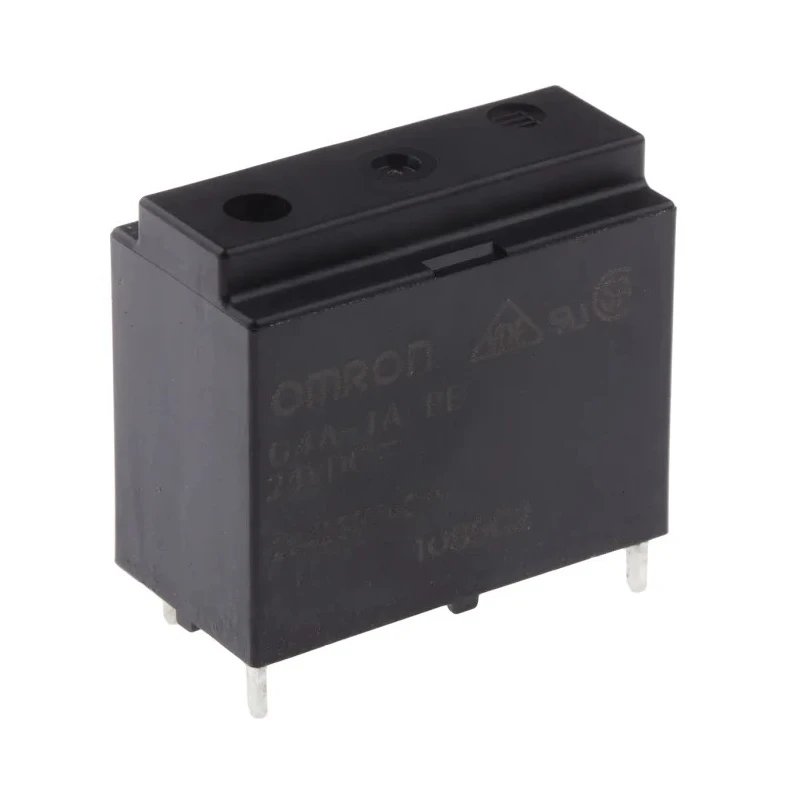

Omron PCB Power Relay 24V DC Coil 20A Switching Current SPST G4A-1A-PE DC24

Omron G4A-1A-PE DC24 is a professional-grade PCB power relay featuring a 24V DC coil and a single-pole, single-throw (SPST) contact configuration designed for industrial and automation applications. Its switching current capacity of 20A and the ability to handle a switching AC voltage up to 250V AC makes it suitable for a wide range of control and power switching tasks on printed circuit boards.

This relay is designed with through-hole terminals to facilitate robust soldering and long-term reliability in PCB mounting scenarios. Compact dimensions of 30.5mm length, 16mm width, and 26.8mm height allow it to fit in space-constrained electronic assemblies efficiently.

The coil resistance of 640 ohms helps maintain optimal electrical performance with low coil current, enhancing energy efficiency in switching applications. It has an operating temperature range from -25°C to 60°C, making it adaptable to various environmental conditions encountered in industrial and commercial equipment.

The use of silver alloy for contact material ensures superior conductivity and mechanical durability, supporting switching power up to 5kVAC and handling surge currents up to 80A, which is ideal for switching motor loads or other inductive loads.

This relay series meets globally recognized certifications including RoHS compliance, VDE, UL, and CSA approvals, providing users with confidence in safety and environmental standards. Manufactured in China, the product combines quality, performance, and compliance suited for electronics assemblies in manufacturing, industrial automation, and electrical equipment manufacturing.

Designed for PCB mounting with through hole terminals for secure installation. Supports switching AC voltage up to 250V AC with a surge current capacity of 80A. Compact size with dimensions of 30.5mm length, 16mm width, and 26.8mm height.

Coil resistance is 640 ohms optimizing power consumption during operation. Operates reliably within temperature range of -25°C to 60°C. Constructed with silver alloy contacts to ensure durability and excellent conductivity.

Complies with RoHS, VDE, UL, and CSA standards for safety and quality assurance.

This Omron G4A-1A-PE DC24 PCB Power Relay is suitable for industrial automation systems, electrical control panels, manufacturing equipment, and other applications requiring dependable power relay switching.
