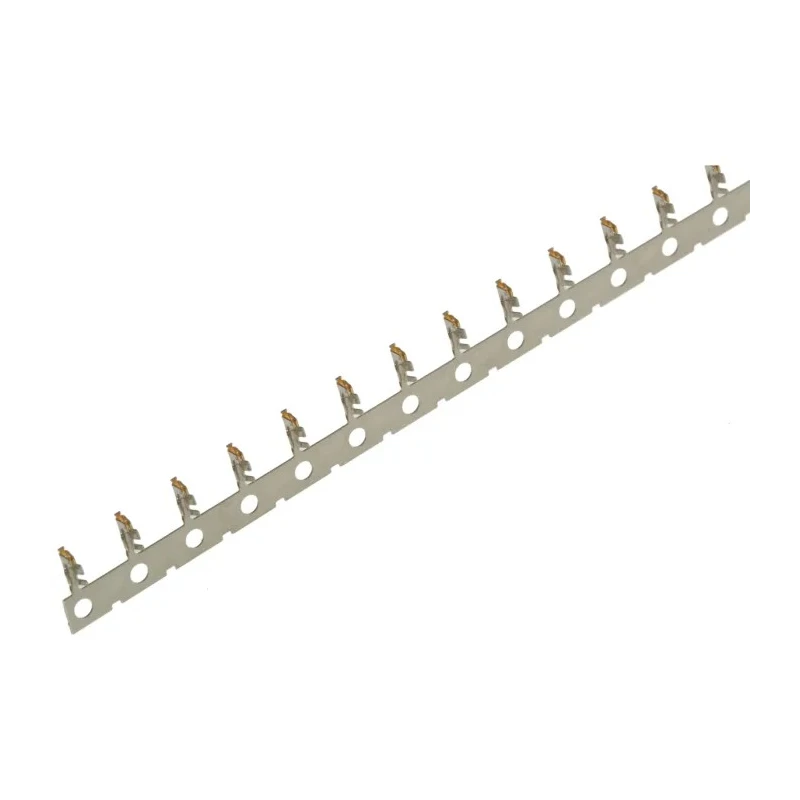

Hirose DF20 Series Female Crimp Terminal, 1A Current, 30 AWG Min/28 AWG Max, Gold Plated Copper Alloy

Hirose DF20F-2830SCFA female crimp terminal is a precision-engineered component designed for reliable electrical connections in electronic circuits. It is specifically made to be used with DF20A connector housings as part of the broader DF20 series of connectors.

This crimp terminal supports wire sizes ranging from 30 AWG minimum to a maximum of 28 AWG, with an electrical current rating of 1 ampere, suitable for low current electronic applications.

The contact material is a copper alloy plated with gold, ensuring excellent conductivity and corrosion resistance. The maximum contact resistance is limited to 30 milliohms, which helps maintain signal integrity.

Operating reliably in a temperature range from -35°C to 85°C, this terminal accommodates various environmental conditions commonly encountered in industrial, commercial, and electronic manufacturing settings.

The terminal termination is by crimping, which provides a secure mechanical and electrical connection with the wire. The design incorporates a low-profile form factor with a 1.0 mm double-row connector pitch and a mating height of only 5.8 mm above the PCB, allowing compact assembly.

Additionally, it features mechanisms to prevent mis-insertion, ensuring proper alignment and secure mating with the socket connectors.

These attributes make the Hirose DF20F-2830SCFA female crimp terminal ideal for use in industrial automation, electronic component manufacturing, and precision electrical assemblies requiring dependable wire-to-board connections.

The crimp terminal features gold plating on copper alloy for reliable conductivity. It supports a maximum contact resistance of 30 milliohms. Designed to operate within temperatures of -35°C to 85°C. The termination type is crimp, allowing secure wire connections.

Manufactured in Japan ensuring quality and durability. Compatible with DF20 series socket connectors with 1.0mm double-row pitch. Low profile design provides a mating height of 5.8mm above PCB. Includes a mechanism to prevent mis-insertion during assembly.
