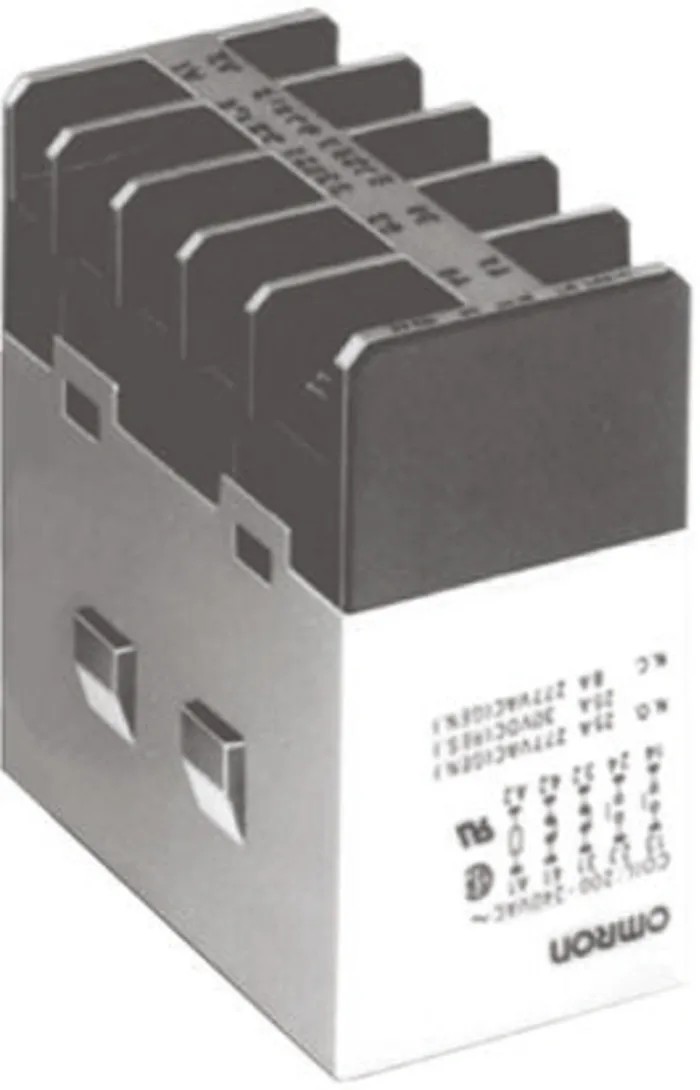

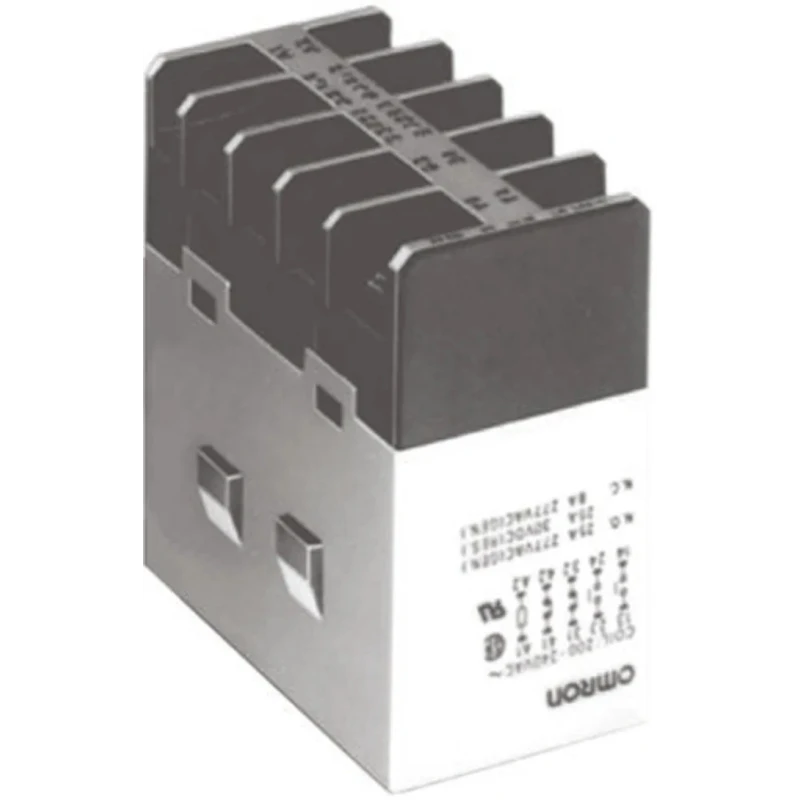

Omron Panel Power Relay 12V DC Coil Voltage 25A Switching Current Silver Alloy Contacts G7J-3A1B-B 12VDC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 64mm |
| Length | 51.5mm |
| Model | G7J-3A1B-B 12VDC |
| Width | 34.5mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | G7J |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PST-NO, SPST-NC |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 72Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2W |
Key Features
- Equipped with silver alloy contacts for durability and low contact resistance.
- Provides a contact configuration of 3PST-NO and SPST-NC for versatile circuit designs.
- Supports switching voltages up to 250V AC and 125V DC for wide applicability.
- Operates reliably in temperatures ranging from -25°C to 60°C.
- Mounts easily to panels via a W-bracket with screw terminal connections.
- Low coil power consumption of 2W with 72Ω coil resistance for efficient control circuit operation.
- Compact dimensions of 51.5mm length, 34.5mm width, and 64mm height for space-saving installation.
- Conforms to UL and CSA standards ensuring recognized safety compliance.
Product Description
Omron G7J-3A1B-B 12VDC Panel Power Relay is a compact and robust electromechanical switching device intended for use in industrial environments. It operates with a 12V DC coil and can switch currents up to 25A, making it suitable for controlling high power loads reliably. This relay supports multiple contact configurations including three normally open poles and one normally closed pole, enabling complex and flexible circuit designs.
The unit features silver alloy contacts with low contact resistance of 100mΩ to ensure minimal energy loss and long operational life. It can switch alternating current voltages up to 250V AC and direct current voltages up to 125V DC, making it versatile for many electrical load switching applications.
Its coil requires only 2 watts of power and offers 72 ohms coil resistance, reducing the load on control circuits. The relay is designed for panel mounting using a W-bracket and provides screw terminals for secure and easy wiring connections. It can reliably operate within an environmental temperature range from -25°C to 60°C, suitable for a variety of industrial indoor settings.
Applications include HVAC controls, motor control systems, industrial automation panels, and control cabinets requiring dependable high-current switching functionality. The product complies with recognized safety standards UL and CSA, giving assurance for safe industrial use.
Equipped with silver alloy contacts for durability and low contact resistance. Provides versatile contact configuration: 3PST-NO and SPST-NC. Supports switching voltages of 250V AC and 125V DC. Compact panel mount design with W-bracket and screw terminals.
Operates reliably from -25°C to 60°C. Low coil power of 2 watts with 72Ω coil resistance. Dimensions: 51.5mm (L) x 34.5mm (W) x 64mm (H). Certified to UL and CSA standards for safety and reliability.
This Omron power relay is ideal for industrial automation, electrical load switching in machinery, HVAC, and motor control systems. It ensures efficient, robust control of electrical circuits within complex control panels and machinery environments. Discover more Power Relay products and components at EnvMart to upgrade your industrial automation and electrical control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It can switch currents up to 25A.
The dimensions are 51.5mm in length, 34.5mm in width, and 64mm in height.
It features a contact configuration of 3PST-NO and SPST-NC.
It operates reliably in temperatures ranging from -25°C to 60°C.
It is equipped with silver alloy contacts for durability and low contact resistance.
The coil resistance is 72Ω.
It supports switching voltages up to 250V AC and 125V DC.
It mounts easily to panels using a W-bracket with screw terminal connections.
The coil power consumption is 2W.
It conforms to UL and CSA standards, ensuring recognized safety compliance.
It is suitable for applications such as HVAC controls, motor control systems, and industrial automation panels.
