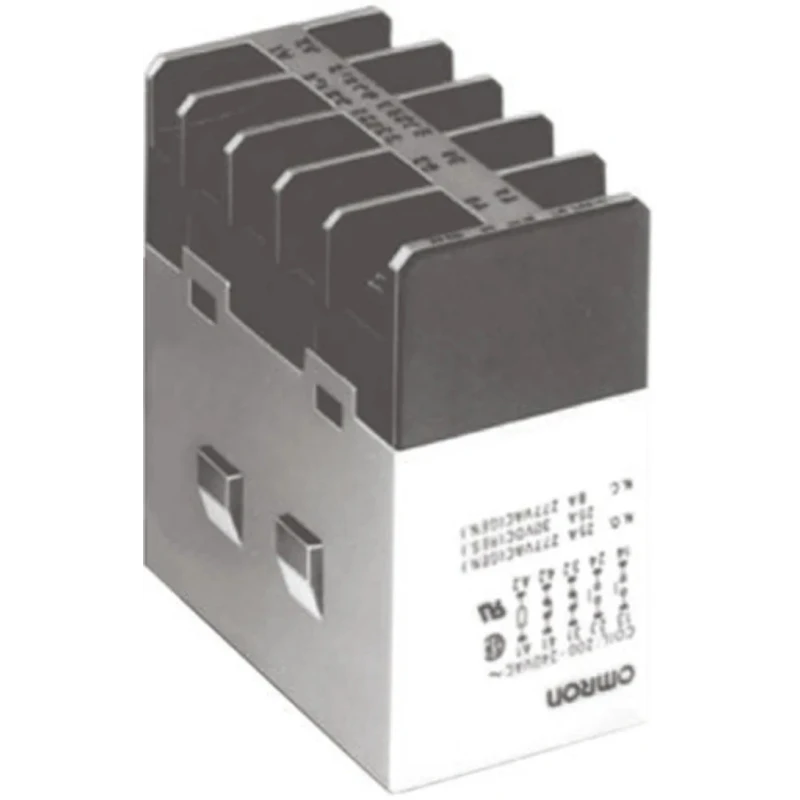

Omron Panel Power Relay 12V DC Coil Voltage 25A Switching Current DPST-NO DPST-NC Silver Alloy Contacts G7J-2A2B-B DC12

Omron G7J-2A2B-B DC12 Panel Power Relay delivers reliable, compact, and high-performance switching for industrial automation and control systems. This relay operates with a 12V DC coil voltage and supports switching currents up to 25A, making it suitable for controlling medium to high current AC and DC loads.

Designed for panel mounting via a sturdy W-bracket and equipped with screw terminals, installation is secure and convenient. The DPST contact configuration includes both normally open (NO) and normally closed (NC) contacts, enabling independent circuit control.

The relay's silver alloy contacts ensure durability and low contact wear under load, enhancing longevity in demanding industrial applications. With a coil power of just 2W and coil resistance of 72Ω, the device minimizes power consumption while maintaining predictable coil current draw for efficient operation.

It supports switching up to 1.76 kVA power, handling AC voltages up to 250V and DC voltages up to 100V. Operating temperature range from -25°C to 60°C allows use in typical factory environments. The contact resistance is low at 100mΩ, ensuring effective switching performance.

Safety and reliability are assured with certifications from UL and CSA, aligning with industrial standards for control equipment. Its compact size (64mm height, 51.5mm length, 34.5mm width) is ideal for space-constrained panel setups.

This relay is ideal for motor control circuits, heater switching, resistive load management, and integration in machinery relay interlocks. It accommodates retrofit installations in existing industrial control cabinets and is designed to offer dependable performance in industrial, manufacturing, and automation settings.

The relay features a DPST-NO and DPST-NC contact configuration for dual circuit switching. Silver alloy contacts provide high durability and reduced wear during operation. Screw-type terminals enable secure and easy wiring connections.

The relay is designed for panel mounting with a W-bracket for robust installation. Operates reliably within an ambient temperature range of -25°C to 60°C suitable for industrial environments. 1.76 kVA switching power supports both AC (250V) and DC (100V) loads effectively.

2W coil power reduces driving energy consumption, with 72Ω coil resistance for consistent coil current. Approvals from UL and CSA ensure compliance with industrial safety standards. Compact dimensions (64mm height, 51.5mm length, 34.5mm width) optimize space usage in control panels.

The relay is suitable for motor start/stop controls, heaters, resistive loads, and relay-based interlocks in machinery. Explore more reliable control relays and Power Relays on EnvMart for robust industrial application solutions.
