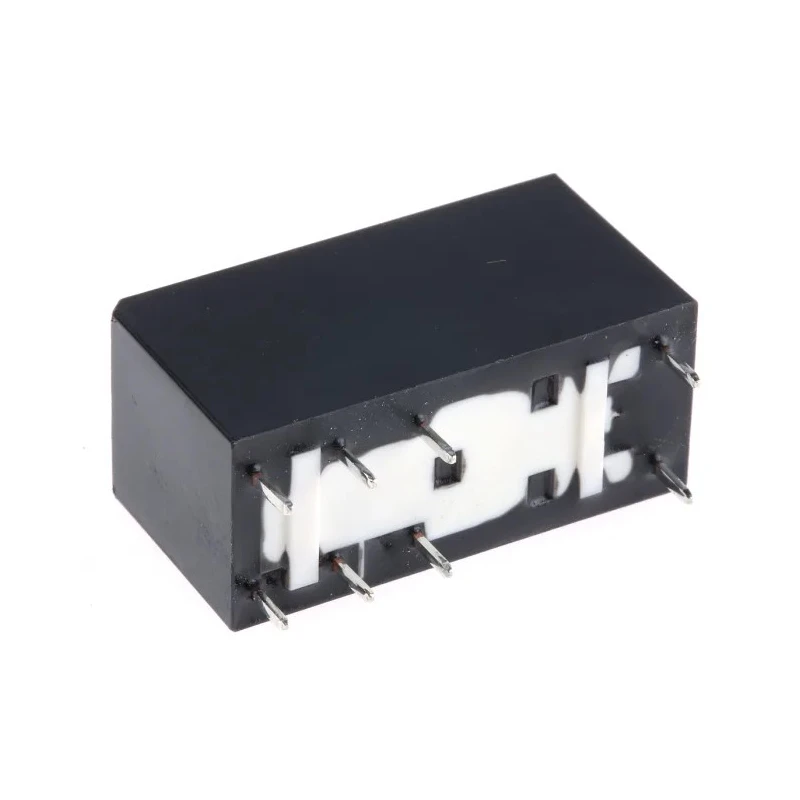

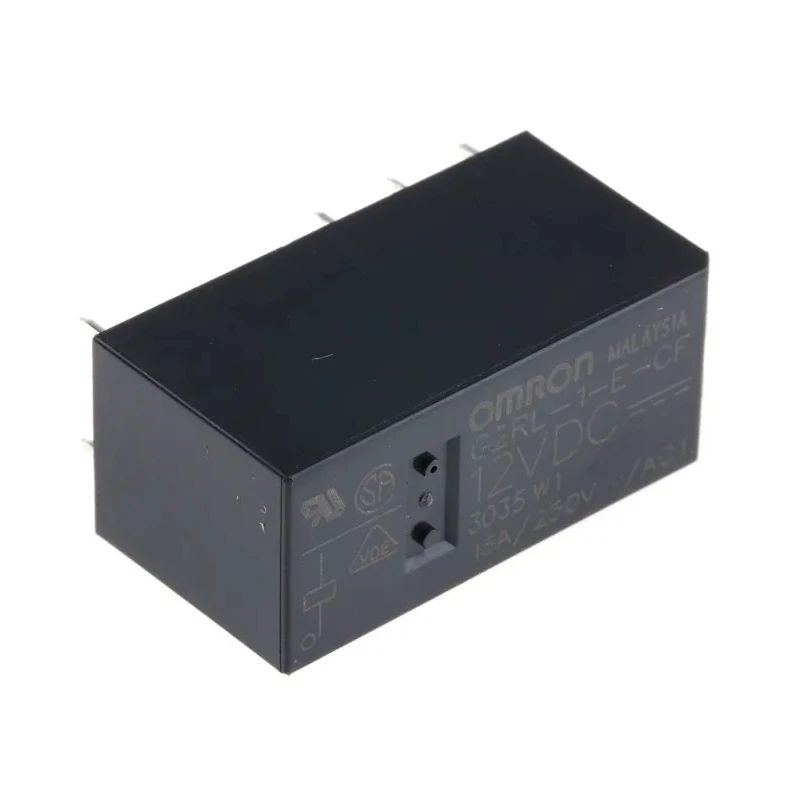

Omron Power Relay PCB Mount SPDT 12V DC Coil 16A Switching Current G2RL-1-E-CF DC12

Omron G2RL-1-E-CF DC12 power relay is a high-performance PCB-mounted power relay designed for industrial, automation, and electrical applications requiring reliable switching of moderate currents. Featuring a single-pole double-throw (SPDT) contact configuration, this relay operates with a 12V DC coil and supports switching currents of up to 16A, making it ideal for controlling power circuits, signal conditioning, and automation devices.

The relay is compact with dimensions of 15.7mm height, 12.7mm width, and 29mm length, allowing space-efficient mounting on printed circuit boards. It utilizes silver alloy contacts for improved conduction and durability, maintaining a low contact resistance of 100 milliohms, thereby reducing signal loss during operation.

Designed for PCB mounting with solder terminals, this power relay consumes only 400mW coil power with a coil resistance of 360 ohms, ensuring energy-efficient activation. It can switch voltages up to 300V DC and 440V AC, accommodating a wide range of industrial electrical requirements. The device is rated for operation within a broad temperature range from -40°C to +85°C, suitable for demanding environmental conditions.

This Omron model meets key industry standards including IEC/EN 60079-15, RoHS directives, and VDE approvals. Additionally, it is UL recognized and CSA certified, guaranteeing quality and safety for commercial and industrial applications. Its superior tracking resistance with CTI greater than 250 further enhances electrical reliability by preventing surface tracking and leakage currents.

Applications include industrial control systems, automation equipment, HVAC controls, and various power switching applications requiring robust and compact relay solutions. The relay comes ready for easy integration into machinery, improving operational efficiency and durability.

PCB mounting type with solder terminals for secure installation. Silver alloy contacts provide low resistance and high conductivity. Compatible with 12V DC coil voltage and 16A switching current capacity. Compliant with IEC/EN 60079-15, RoHS, VDE, UL, and CSA certifications.

Compact size fits in limited PCB space with 15.7mm height. Explore the wide range of Omron Power Relays and related electrical components available at EnvMart for your industrial and automation needs.
