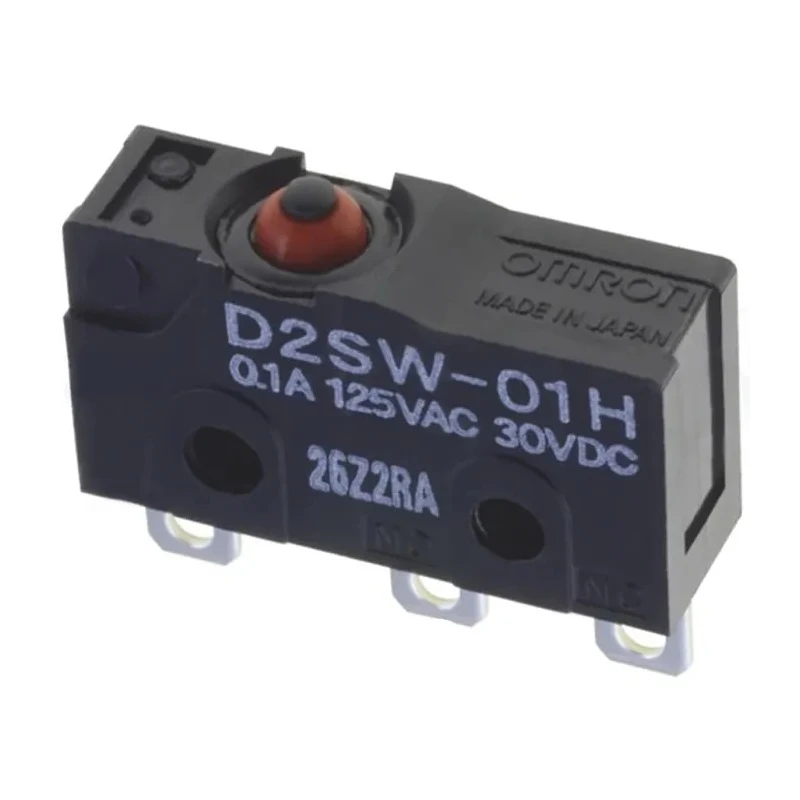

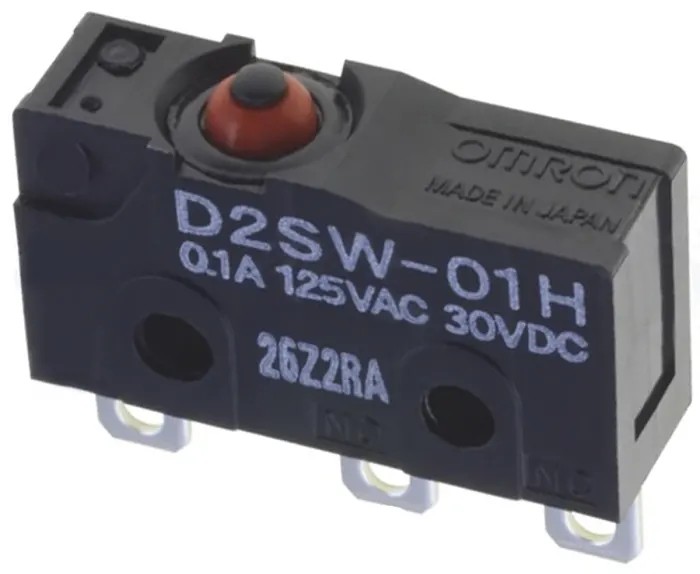

Omron Pin Plunger Micro Switch, Solder Terminal, 100mA Contact Current, 30 V dc, SPDT, IP67 Sealed Subminiature D2SW-01H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Operating Temperature Range | -40 to +80°C |
| Model | D2SW-01H |
| IP Rating | IP67 |
| Series | D2SW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A@30Vdc/125Vac, 2A@250Vac |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.77N |
| Mechanical Life | 5000000Operations |
| Microswitch Type | Sealed Subminiature |
Key Features
- Pin plunger actuator type ensures precise and reliable switching.
- Solder terminal facilitates easy and secure wiring connections.
- Compact sealed subminiature design protects against dust and water ingress.
- Operating temperature range from -40°C to 85°C for versatile environments.
- Mechanical life rated for 5 million operations ensures durable performance.
- Contact rating supports 3A at 30Vdc/125Vac and 2A at 250Vac.
- IP67 rated for robust protection against dust and water jets.
- RoHS compliant, meeting environmental and safety standards.
Product Description
Omron D2SW-01H Pin Plunger Micro Switch is a high-quality sealed subminiature microswitch with a solder terminal, designed for reliable operation in demanding industrial and electrical environments. It features a pin plunger actuator and an SPDT contact configuration, suitable for precise control applications. The contact current is rated at 100mA with a contact DC voltage of 30 V dc, providing effective switching performance in low-power circuits.
This micro switch is constructed as a sealed miniature switch in an industry-standard V4 housing with a monoblock design that ensures high sealing capability, making it ideal for use in dusty locations or environments exposed to water spray. The IP67 rating guarantees protection against dust and water jets, suitable for harsh conditions.
Operating force is calibrated at 1.77N, and the switch supports an operating temperature range from -40°C to 85°C, ensuring versatility across various industrial and laboratory settings. The device’s mechanical life expectancy is rated at five million operations, promising long-lasting durability.
The contact rating is 3A at 30Vdc and 125Vac, and 2A at 250Vac, enabling broad applicability including automation, HVAC control systems, and manufacturing machinery. This micro switch is RoHS compliant, reflecting adherence to environmental standards.
Manufactured in Japan, the Omron D2SW-01H is trusted for precision and reliability in control systems requiring compact and sealed switching solutions. Pin plunger actuator ensures accurate switching. Solder terminal type for secure connections.
Rated IP67 for dust and water resistance. Operating temperature range from -40°C to 85°C. Mechanical life of 5 million operations. Contact rating: 3A @ 30Vdc / 125Vac, 2A @ 250Vac. Sealed subminiature construction in industry-standard housing.
RoHS compliant and environmentally safe. Ideal for electrical automation and industrial use. Manufactured in Japan. Explore more Micro Switch products and components in the Electronics & Electricals category on EnvMart to find suitable solutions for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 3A at 30Vdc and 125Vac, and 2A at 250Vac, allowing it to handle various low-power applications effectively.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
This micro switch features a pin plunger actuator type, which ensures precise and reliable switching.
The mechanical life is rated for 5 million operations, indicating its durability for long-term use.
It has an IP67 rating, providing robust protection against dust and water jets.
The D2SW-01H is equipped with a solder terminal, facilitating easy and secure wiring connections.
The operating force is calibrated at 1.77N, which is necessary for activating the switch.
Yes, it is RoHS compliant, meeting environmental and safety standards.
This micro switch is manufactured in Japan, ensuring high standards of quality.
The contact current rating is 100mA, suitable for low-power circuits.
It uses a Single Pole Double Throw (SPDT) contact configuration, which is versatile for various applications.
This micro switch is suitable for applications in automation, HVAC control systems, and manufacturing machinery due to its reliable performance.
