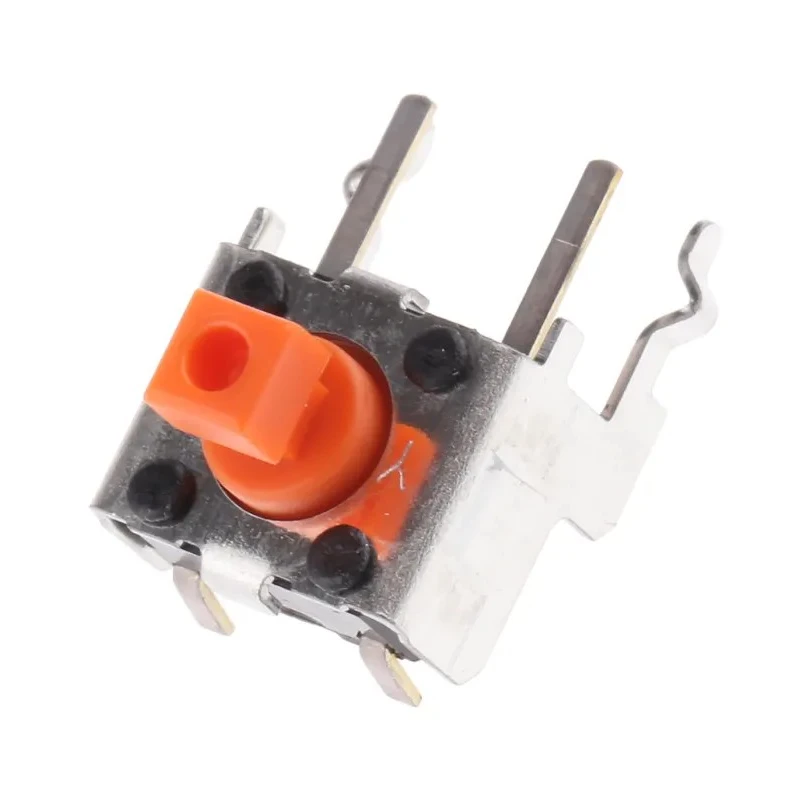

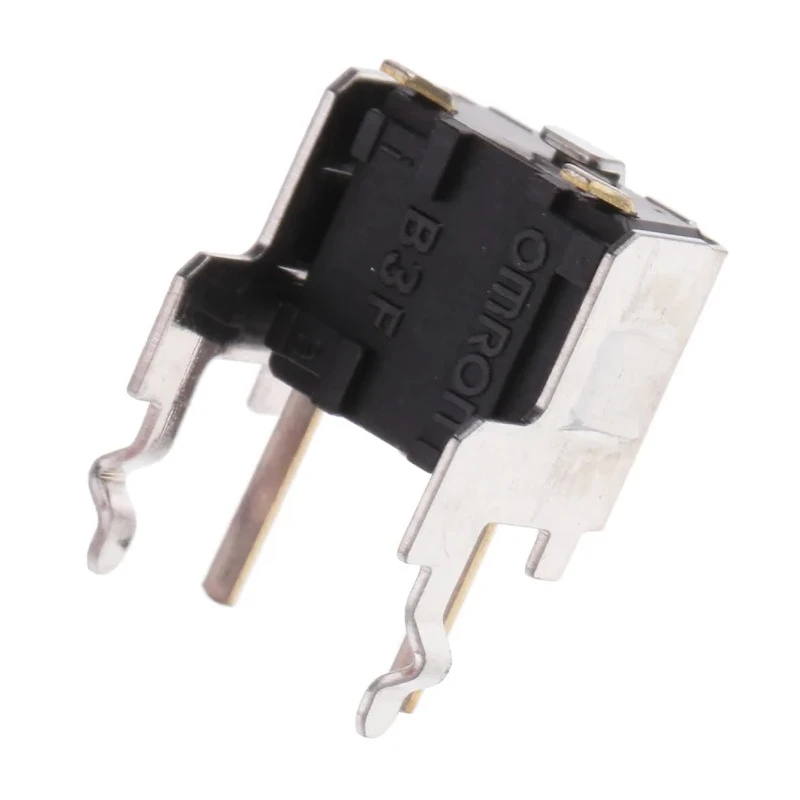

Omron Orange Tactile Switch Plunger SPST 50mA 24V dc Through Hole B3F-3155
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 6.15mm |
| Length | 7.4mm |
| Model | B3F-3155 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | Not Found |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Actuator Colour | Orange |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 2.55N |
| Mechanical Life | 1000000Operations |
| Omron Ivory Tactile Switch Plunger, SPST 50mA 24 V dc, Through HoleBrand | Omron |
Key Features
- The switch offers a plunger actuator style with orange color for easy identification.
- It supports a maximum contact current of 50mA at 24 V dc supply voltage.
- The mount type is through hole ensuring stable PCB installation.
- Operating temperature ranges from -25°C to 70°C suitable for various environments.
- The switch has a mechanical life of one million operations ensuring durability.
- It requires an operating force of 2.55 newtons for actuation.
- The compact dimensions measure approximately 7.4mm length, 6mm width, and 6.15mm height.
- This product complies with RoHS standards ensuring environmental safety.
Product Description
Omron B3F-3155 Orange Tactile Switch Plunger is a precision electrical component designed for reliable switching applications on printed circuit boards. Featuring a single pole single throw (SPST) contact configuration, this tactile switch operates at 50mA and 24 V dc rated voltage.
The plunger-style actuator is colored orange for easy visual identification and provides a distinct tactile feedback with an operating force of 2.55 newtons. Its through hole mount type facilitates secure and stable placement on PCBs during assembly.
The switch dimensions are compact with a length of 7.4 mm, width of 6 mm, and height of 6.15 mm, making it suitable for space-constrained electronic devices. It operates reliably within temperature ranges from -25°C up to 70°C, providing flexibility across various industrial and commercial environments.
With a robust mechanical life rated at one million operations, the B3F-3155 switch is ideal for frequent use in automation systems, electronics manufacturing, and control panels. Compliance to RoHS directives ensures that this component meets environmental and sustainability standards.
This product is manufactured in Japan, reflecting Omron’s commitment to quality and precision engineering. Suitable industrial applications include automation systems, consumer electronics, telecommunications, and other equipment requiring dependable tactile switch performance.
The switch features an orange plunger actuator for tactile operation. Single pole single throw (SPST) contact configuration. Contact current rating of 50mA at 24V dc for low-power circuits. Through hole mounting for secure PCB integration.
Operating temperature range from -25°C to 70°C. Mechanical life span of 1,000,000 operations. Operating force of 2.55 N for consistent actuation feel. Compact dimensions of 7.4 mm x 6 mm x 6.15 mm. RoHS compliant for environmental safety.
Manufactured in Japan ensuring quality standards. Explore more Tactile Switches and related components in EnvMart’s Electronics & Electricals category for advanced automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole single throw (SPST) contact configuration, which allows it to make or break a single circuit.
This model supports a maximum contact current of 50mA at a rated voltage of 24V dc.
The dimensions of the switch are approximately 7.4mm in length, 6mm in width, and 6.15mm in height.
It operates reliably within a temperature range of -25°C to 70°C, making it suitable for various environments.
The switch uses a through hole mount type, ensuring stable and secure installation on printed circuit boards (PCBs).
The required operating force for actuation is 2.55 newtons, providing a consistent tactile feedback during operation.
The mechanical life of this switch is rated for one million operations, ensuring longevity in use.
Yes, this product complies with RoHS standards, ensuring it meets environmental safety regulations.
This switch is manufactured in Japan, reflecting the brand's commitment to quality and precision engineering.
It is suitable for various applications including automation systems, consumer electronics, and telecommunications equipment.
The actuator of this switch is orange, allowing for easy visual identification during operation.
The terminal type for the B3F-3155 is through hole, which is compatible with standard PCB designs.
