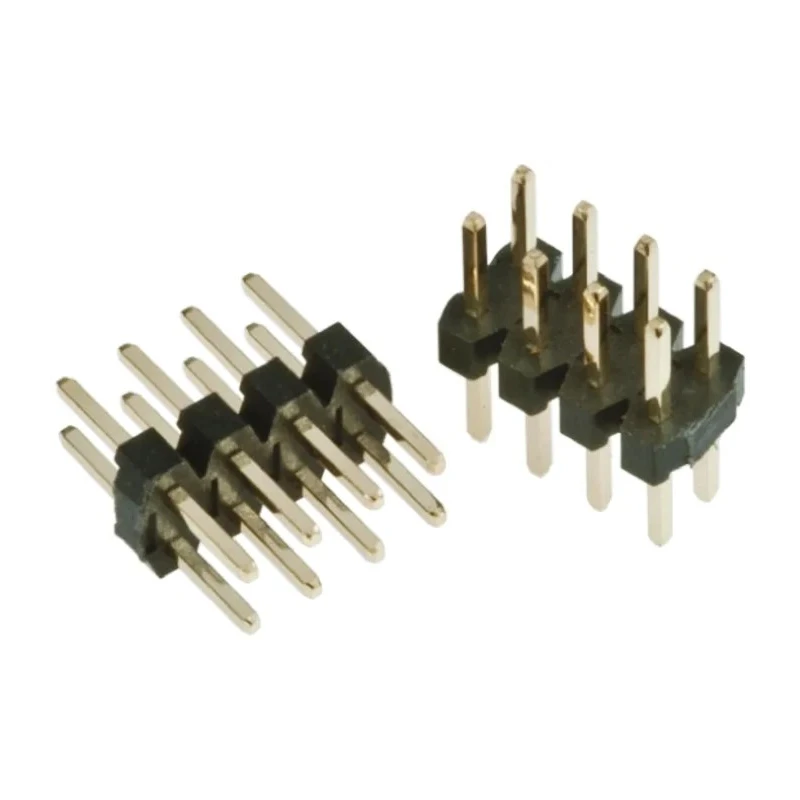

HARWIN M22 Series 2 mm Pitch 8 Contact Straight Through Hole Unshrouded Pin Header M22-2020405

HARWIN M22-2020405 is a 2 mm pitch, 8 contact, 2-row straight through hole unshrouded PCB Pin Header designed for board-to-board connectors. This component features phosphor bronze male contacts plated with gold ensuring excellent conductivity and resistance to corrosion. The housing material comprises high temperature nylon, capable of withstanding standard reflow soldering processes used in modern electronics manufacturing.

This pin header has a tail pin length of 3.4 mm and a mating pin length of 3.5 mm, providing reliable and secure connections. It operates efficiently over a wide temperature range from -40°C to 105°C, suitable for industrial and commercial applications. The unshrouded design allows easy access for insertion and maintenance tasks.

The M22 series is well-known for its versatility, supporting multiple configuration options including dual and single rows, vertical and right angle orientations. Its castellated housing design allows customization by cutting to required sizes, ensuring adaptability in complex board layouts.

Applications include embedded PC systems, communication devices, drives and controls, industrial monitoring, consumer electronics, and personal computing equipment. The connector mates perfectly with M22 series PCB sockets, housings, and jumpers, facilitating modular and scalable electronic assemblies.

Manufactured in Taiwan, this product adheres to stringent quality standards, delivering reliable performance and durability in demanding environments. It is ideal for integration into both commercial and industrial electronic equipment requiring stable, precise connectivity.

Constructed with phosphor bronze male contacts plated in gold for reliable conductivity. Housing made of high temperature nylon suitable for reflow soldering processes. Compact 2.00 mm pitch and 2-row configuration enables versatile board-to-board connection.

Designed to withstand operating temperatures from -40°C to 105°C. Termination type is solder, with tail pin length of 3.4 mm and mating pin length of 3.5 mm. Unshrouded design allows ease of insertion and maintenance. Suitable for embedded PCs, motherboards, and large electronic systems applications.

Manufactured in Taiwan, Province Of China with high manufacturing standards. Compatible with M22 series PCB sockets, housings, and jumpers for modular setups. Explore the full range of PCB headers and related electronic components available at EnvMart for comprehensive industrial and commercial applications.
