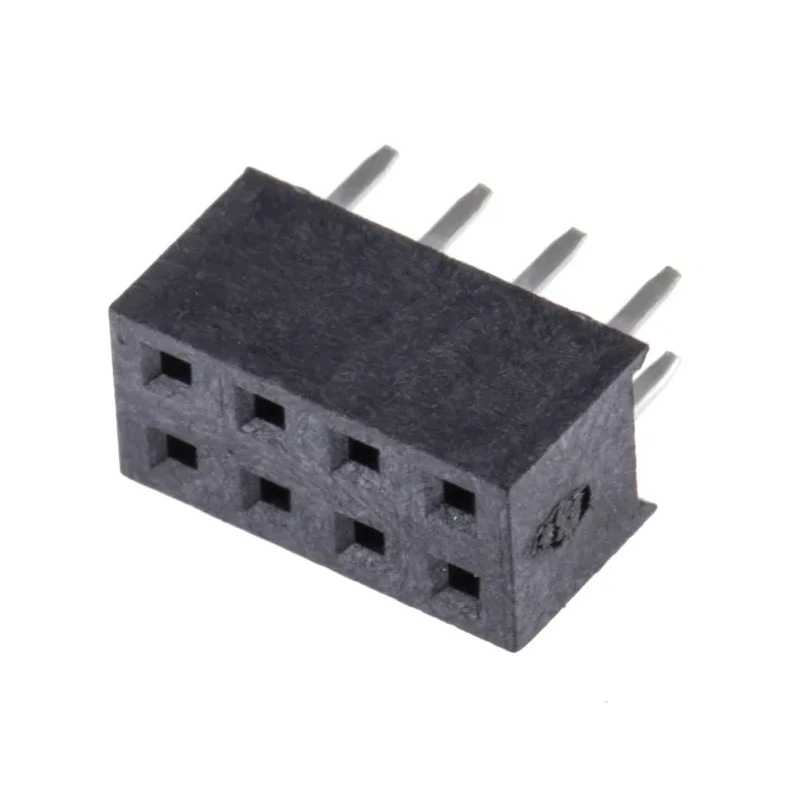

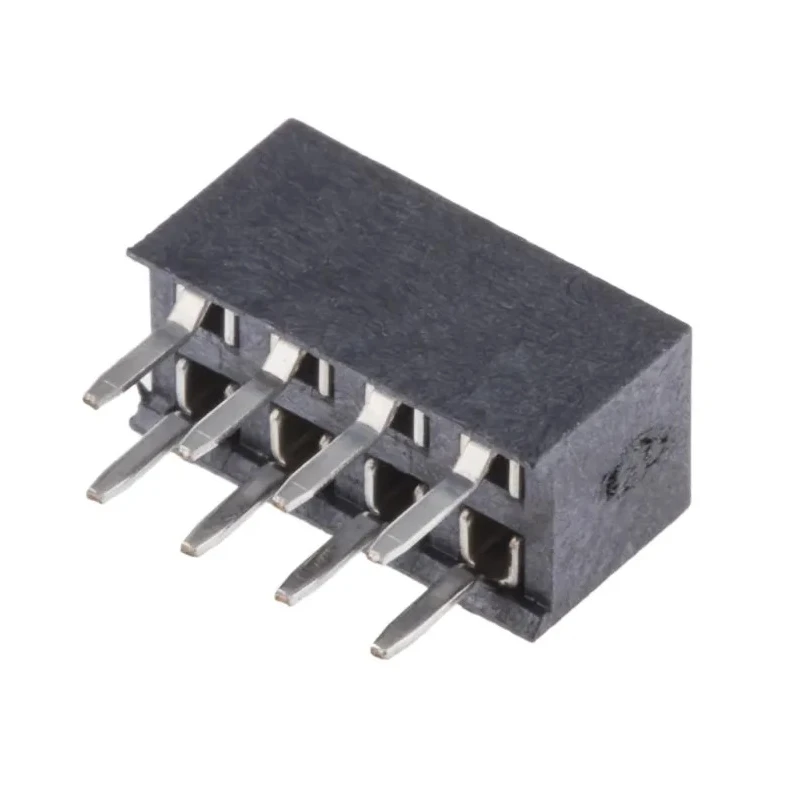

HARWIN M22 Series Straight Through Hole PCB Socket 8-Contact 2 Row 2 mm Pitch Solder M22-7140442
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7140442 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact design supporting high PCB density and height restrictions.
- Made from high temperature UL94V-0 Liquid Crystal Polymer housing.
- Gold plated dual beam contacts for enhanced electrical connection reliability.
- Rated for 12 A current and 500 V voltage operation.
- Suitable for industrial, consumer electronics, communications, and control applications.
- Operating temperature range from -25°C to 105°C ensures durability in various environments.
- Supports up to 300 mating cycles for reliable usage.
- Through hole mounting type with straight orientation.
Product Description
HARWIN M22-7140442 is a premium Straight Through Hole PCB Socket designed for board-to-board connections in electronic assemblies. Featuring 8 contacts arranged in 2 rows with a fine 2 mm pitch, this socket provides a compact and reliable interconnection solution.
The housing is constructed from UL94V-0 high temperature Liquid Crystal Polymer, providing excellent thermal stability and resistance to reflow soldering processes. The gold plated dual beam contacts made from bronze material ensure exceptional durability and electrical performance. The socket is rated for currents up to 12 A and voltages up to 500 V, making it suitable for a broad range of demanding industrial and electronic applications.
Operating effectively over a temperature range from -25°C to 105°C, the M22 series socket is suitable for consumer electronics, communications equipment, drives and controls, industrial monitoring systems, and personal computing devices. The through hole mount and straight orientation ensure secure installation on printed circuit boards.
Designed to withstand up to 300 mating cycles, this connector offers long-lasting performance and reliability. Its compact design addresses PCB density and height constraints, meeting the needs of modern embedded PC and motherboard layouts.
Compact 2 mm pitch socket with two rows of 8 contacts. High temperature Liquid Crystal Polymer housing with UL94V-0 rating. Gold plated bronze dual beam contacts improve conductivity and reliability. Current rating of 12 A and voltage rating of 500 V.
Supports over 300 mating operations for extended lifecycle. Through hole mounting with straight orientation for easy PCB installation. Suitable for industrial, consumer electronics, communications, and control systems. Operating temperature range from -25°C to 105°C.
For engineers and designers looking for a robust and reliable board-to-board connection, the HARWIN M22 Series PCB Socket offers a proven solution with high performance and industry-standard compatibility. This connector is widely adopted in a multitude of industrial, laboratory, consumer, and commercial electronic applications.
Explore more in the Electronics Components > PCB Socket category on EnvMart for related connectors and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M22-7140442 PCB socket is rated for a current of 12 A and a voltage of 500 V.
This model operates effectively within a temperature range of -25°C to 105°C.
The M22-7140442 socket features 8 contacts arranged in 2 rows.
The housing of this socket is constructed from high temperature UL94V-0 Liquid Crystal Polymer, providing excellent thermal stability.
This PCB socket utilizes solder termination for secure connections.
The contacts in this model have a pitch size of 2 mm.
The M22-7140442 socket is designed to withstand up to 300 mating cycles for reliable usage.
This socket features a straight orientation for through hole mounting on printed circuit boards.
This socket is suitable for industrial, consumer electronics, communications, and control applications.
The socket has gold plated dual beam contacts made from bronze material, enhancing electrical connection reliability.
The HARWIN M22-7140442 PCB socket is manufactured in India.
This model uses a board-to-board connector system for interconnection.
