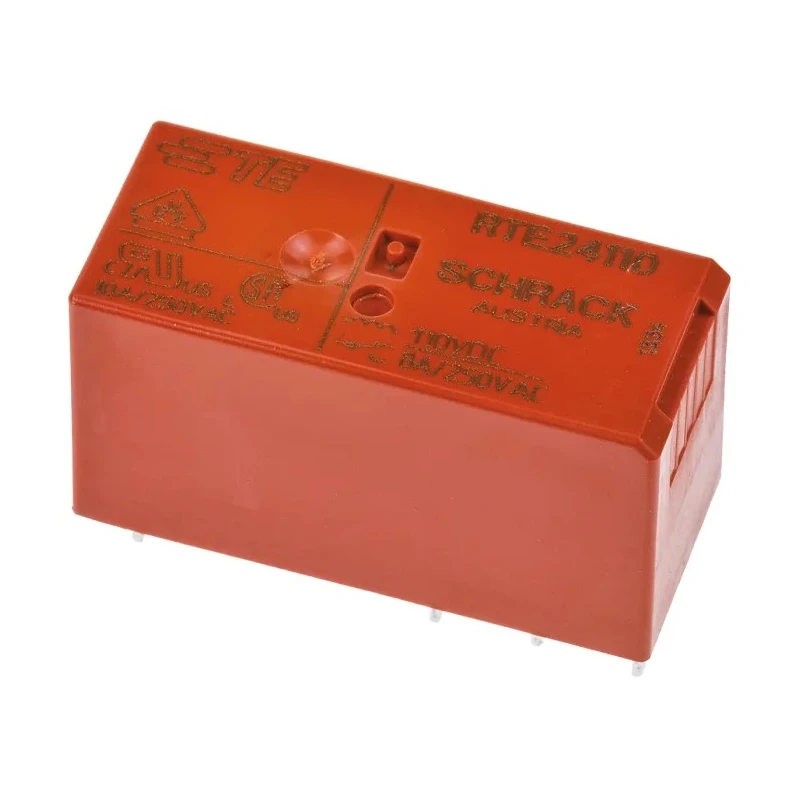

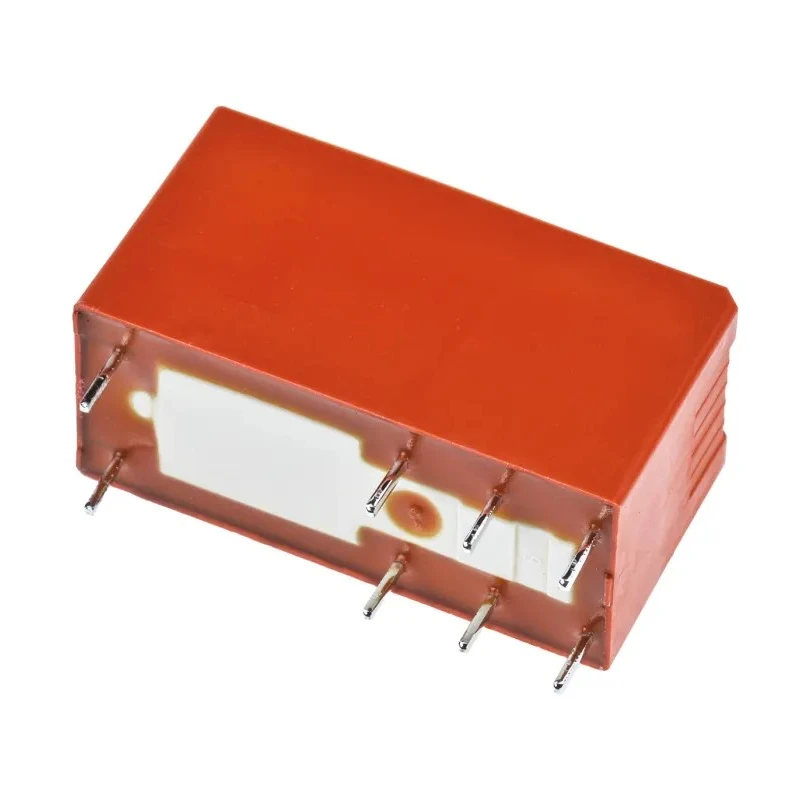

TE Connectivity PCB Power Relay 110V DC Coil 8A Switching Current DPDT RTE24110

TE Connectivity RTE24110 PCB Power Relay is a robust and reliable power relay designed for industrial and domestic applications requiring precise switching. Featuring a 110V DC coil voltage and a DPDT contact configuration, this relay supports a switching current of 8 amperes and can handle switching AC voltages up to 400 volts. Its compact design with dimensions 29mm (length) x 15.7mm (height) x 12.7mm (width) allows for efficient PCB mounting and integration into various control circuits.

This relay belongs to the RT2 series, known for its 5mm pinning that is flux-proof, enhancing connection reliability and longevity. The coil resistance of 28.8 kilo-ohms ensures stable coil operation with low power dissipation at 250mW coil power. The relay operates effectively within a temperature range from -40°C to 85°C, making it suitable for varied environmental conditions.

The contacts are crafted from a silver nickel alloy, offering excellent conductivity and durability to withstand frequent switching cycles. The product meets international standards IEC 60335-1, RoHS, and VDE, ensuring compliance with safety and environmental protocols.

This power relay is ideal for applications in interface circuits, automation systems, domestic appliances, security lighting setups, and heating system controls. The DPDT contact configuration allows for versatile switching operations across multiple circuits, enhancing functional flexibility.

Designed for PCB mounting ensuring ease of installation. Switching AC voltage rating of 400V AC for robust performance. Coil resistance measures 28.8k ohms providing reliable coil operation. Operates efficiently between -40°C to 85°C operating temperature range.

Constructed with silver nickel alloy contacts enhancing conductivity and durability. Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width. Compliant with IEC 60335-1, RoHS, and VDE standards for safety and quality.

Coil power consumption of just 250mW for energy-efficient operation. Ideal for interface, automation, domestic, security lighting, and heating control systems. Part of the RT2 series with solder terminal types and through-hole mounting.
