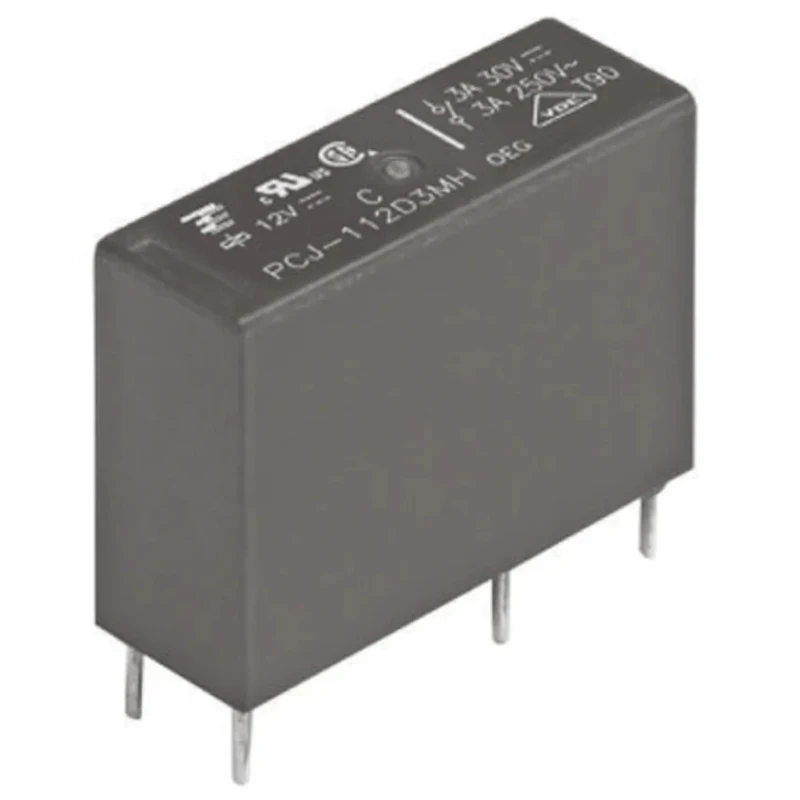

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPST PCJ-112D3M-WG,000M
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20.4mm |
| Model | PCJ-112D3M-WG,000M |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PCJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE 119568, UL E82292, RoHS, CQC08001023449 |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 400V |
| Coil Power | 200mW |
| Switching Power | 150W |
Key Features
- This relay is designed for PCB mounting with a through-hole terminal type.
- It operates with a coil power of 200mW, ensuring sensitive and efficient activation.
- The relay has a maximum switching power of 150W and can handle up to 400V AC and 30V DC switching voltages.
- Operating temperature ranges from -40°C to a maximum of 85°C, suitable for varied environments.
- Contact material is silver alloy with a low contact resistance of 100mΩ for reliable performance.
- It complies with standards including VDE 119568, UL E82292, RoHS, and CQC08001023449 certifications.
Product Description
TE Connectivity PCJ-112D3M-WG,000M PCB Power Relay is a miniature power relay designed for printed circuit board mounting. It features a sensitive 200mW coil operating at 12V DC with through-hole terminals, ensuring reliable electrical switching with a maximum current rating of 5A and SPST contact configuration, ideal for various industrial and domestic applications.
The relay supports a switching power of up to 150W and switches AC voltages up to 400V and DC voltages up to 30V. Its silver alloy contacts offer a low contact resistance of 100mΩ for efficient power transfer, combined with robust material construction compliant with multiple safety and quality standards including VDE, UL, RoHS, and CQC.
Designed with a compact footprint of 20.4mm length, 10mm width, and 15mm height, it fits well into dense PCB layouts. The operating temperature range from -40°C to 85°C allows use in a variety of industrial, automation, and household environments. The relay’s coil resistance is 720Ω, providing stable coil operation to ensure consistent switching performance.
This power relay is well suited for applications in electrical automation, control circuits, and signal conditioning, particularly for domestic appliances compliant with IEC 60335-1.
This relay is designed for PCB mounting with a through-hole terminal type. It operates with a coil power of 200mW, ensuring sensitive and efficient activation. The relay has a maximum switching power of 150W and can handle up to 400V AC and 30V DC switching voltages.
Operating temperature ranges from -40°C to a maximum of 85°C, suitable for varied environments. Contact material is silver alloy with a low contact resistance of 100mΩ for reliable performance. Dimensions are compact with length 20.4mm, width 10mm, and height 15mm.
It complies with standards including VDE 119568, UL E82292, RoHS, and CQC08001023449 certifications. Explore related Power Relays and similar products on EnvMart for your electronic assembly and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay can handle a maximum switching voltage of 400V AC and 30V DC.
The coil voltage for this model is 12V DC.
It has a maximum switching current rating of 5A.
The relay measures 20.4mm in length, 10mm in width, and 15mm in height.
The relay operates with a coil power of 200mW.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The contact material is silver alloy, which provides a low contact resistance of 100mΩ.
The operating temperature range is from -40°C to a maximum of 85°C.
It complies with several standards including VDE 119568, UL E82292, RoHS, and CQC08001023449.
This relay is designed for PCB mounting with a through-hole terminal type.
The maximum switching power for this relay is 150W.
The coil resistance is 720Ω.
