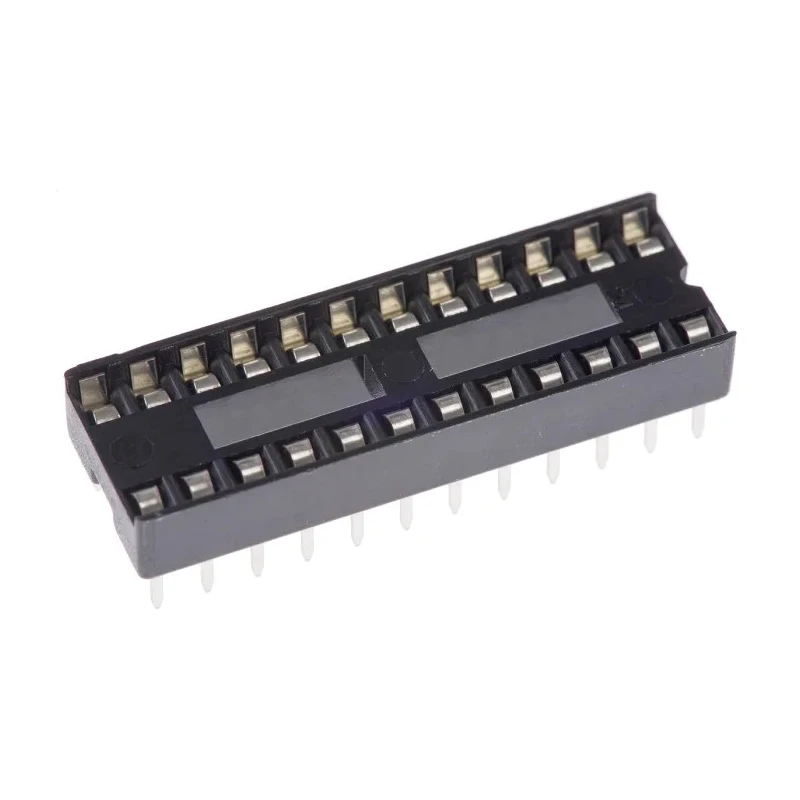

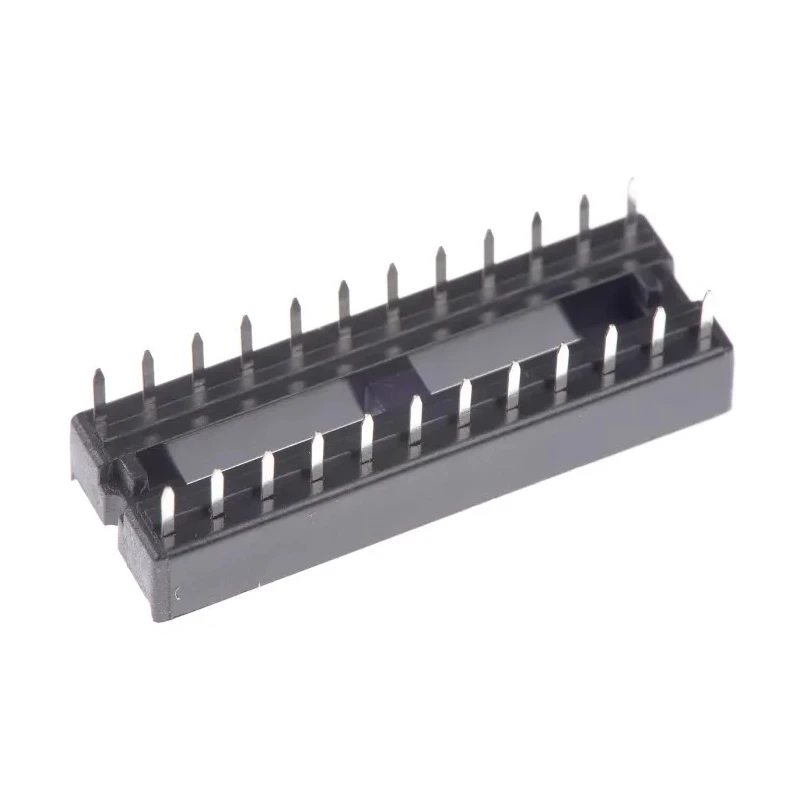

ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 24-LC/7-T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 24-LC/7-T

Name: ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 24-LC/7-T
Brand: ASSMANN WSW
SKU: 125990
Price: 0.43 USD
Availability: InStock



Category DIL Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	Taiwan
Voltage	60V
Brand	ASSMANN WSW
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	30.38mm
Model	A 24-LC/7-T
Depth	17.68mm
Width	5.16mm
Mount Type	Through Hole
Housing Material	Polyethylene Terephthalate
Contact Material	Phosphor Bronze
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	24
Pin Type	Stamped
Row Width	7.62mm

Key Features

This IC DIP socket has a 2.54 mm pitch ensuring compatibility with standard DIP packages.
It supports 24 contacts mounted through-hole style for secure PCB soldering.
Contacts are stamped and tin plated phosphor bronze for reliable connectivity and corrosion resistance.
The socket frame is an open black UL94V-0 PBT insulator ensuring durability and electrical safety.
It operates within a voltage rating of 60V and current rating of 1A.
Temperature range extends from -55°C to 105°C, suitable for diverse industrial applications.
The vertical orientation and 7.62 mm row width provide effective PCB layout design.
Housing material is polyethylene terephthalate, providing mechanical strength and stability.

Product Description

ASSMANN WSW A 24-LC/7-T is a vertical 24-way DIL socket featuring a 2.54 mm pitch and through-hole mounting with stamped pin contacts capable of carrying 1 ampere current. It employs an open frame design with a black UL94V-0 rated PBT insulating frame, combining electrical safety with mechanical reliability.

This socket is engineered for IC DIP packages with 24 contacts, each made of tin-plated phosphor bronze stamped pins, assuring efficient conductivity and corrosion resistance required for industrial and electronic applications.

The socket supports a voltage rating of 60 volts and operates reliably in temperature conditions ranging from minus 55 degrees Celsius up to plus 105 degrees Celsius, making it suitable for a wide range of environments including laboratory instruments, industrial control systems, and electronic manufacturing.

The dimensions of this IC socket are precise with a width of 5.16 mm, depth of 17.68 mm, length of 30.38 mm, and a row width of 7.62 mm to suit standard PCB layouts with vertical orientation.

Manufactured in Taiwan, Province of China, this component meets rigorous quality criteria. The housing is made from polyethylene terephthalate, providing robust mechanical stability and chemical resistance.

This open frame DIP socket is ideal for use in electronics assembly lines, industrial automation equipment, instrumentation, and control panels where reliable IC socket connections are critical.

This socket features a 2.54 mm pitch compatible with common DIP IC packages. It has a 24 contact count with through-hole stamped pin mounting for secure PCB integration. Contacts are phosphor bronze with tin plating for improved conductivity and durability.

Its frame is an open black UL94V-0 rated PBT insulator ensuring electrical safety. Designed to operate at 60 V and 1 A maximum load current ratings. Suitable for operating environments from -55°C to 105°C. Vertical orientation and 7.62 mm row width for PCB layout compatibility.

Housing material is polyethylene terephthalate for strength and reliability. Manufactured in Taiwan, Province of China. Browse more DIL Sockets and electronic components at EnvMart for seamless integration in your industrial, laboratory, or manufacturing projects.
