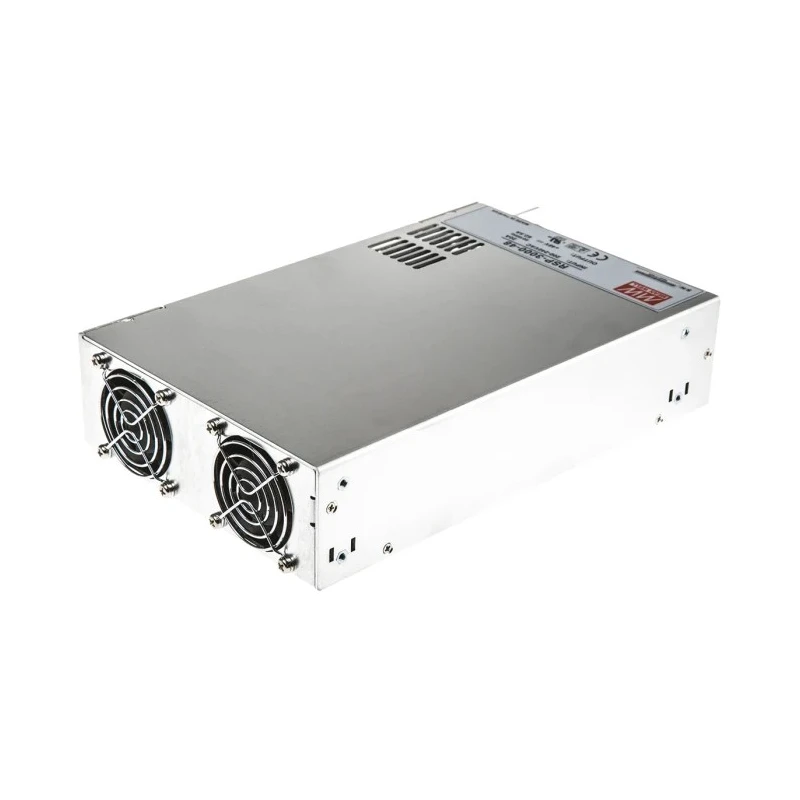

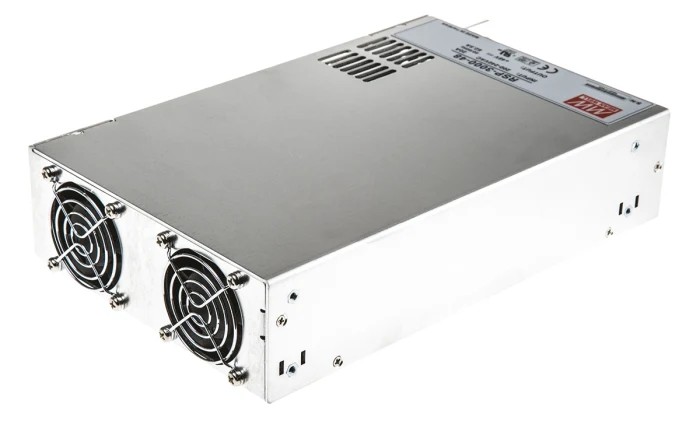

MEAN WELL RSP-3000-48 Switching Power Supply 48V DC 3kW Universal AC Input 180-264VAC / 254-370VDC RSP-3000-48
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 3kW |
| Efficiency | 90.5% |
| Length | 278mm |
| Model | RSP-3000-48 |
| Depth | 63.5mm |
| Gross Weight | 4kg |
| Width | 63.5mm |
| Mount Type | Chassis |
| Series | RSP-3000 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 62.5A |
| Minimum Input Voltage | 180V ac |
Key Features
- Provides a single output with maximum output voltage of 48V DC.
- Capable of delivering an output current up to 62.5A ensuring stable power supply.
- Supports universal input voltage range from 180VAC to 264VAC and DC input from 254V to 370V.
- Equipped with active power factor correction with PF less than 0.95 for energy efficiency.
- Includes protection features such as short circuit, overload, overvoltage, and over temperature protection.
- Forced air cooling with variable fan speed control for reliable thermal management.
- Output voltage is trimmable between 20% and 110% of rated voltage for flexible application use.
- High power density design with 15.6 W/in³ for space-efficient integration.
Product Description
MEAN WELL RSP-3000-48 is an industrial-grade Switching Power Supply offering a maximum output of 48V DC at 3kW power capacity. Designed as an embedded switch mode power supply, it supports a universal AC input voltage range from 180VAC to 264VAC and DC voltage input from 254V to 370V, catering to a wide range of industrial power requirements. The power supply features a chassis mount type with dimensions of 278mm length, 63.5mm width, and 63.5mm depth, weighing 4 kg.
Its high efficiency up to 90.5% combined with built-in active power factor correction ensures energy-efficient operation with a power factor less than 0.95. The device incorporates comprehensive protection against short circuits, overloads, overvoltage, and overheating, ensuring safe and reliable usage in demanding environments.
The RSP-3000-48 supports forced air cooling via built-in DC fan with speed control to maintain optimal temperature ranges between -20°C and 70°C operating temperature. The power supply output voltage is adjustable (trimmable) between 20% and 110% of its rated voltage, providing flexibility for user-specific applications.
Additional features include alarm signal outputs (relay and TTL), built-in auxiliary 12V at 0.1A for remote control purposes, and remote ON-OFF functionality. Its high power density of 15.6 W/in³ makes it suitable for installation in constrained spaces.
This power supply is ideal for industrial and commercial applications including factory automation, test and measurement instruments, laser-related machinery, burn-in facilities, digital broadcasting, and RF applications requiring a robust, high-performance DC power source.
Provides single 48V DC output at 3kW power rating. Universal input voltage supports 180-264VAC & 254-370VDC supply. High efficiency up to 90.5% with active PFC. Comprehensive protective features including short circuit and overload protection.
Adjustable output voltage from 20% to 110% of nominal. Cooling via built-in fan with speed control. Compact chassis mount design weighing 4 kg. Alarm outputs for monitoring system status. Auxiliary 12V, 0.1A output for remote control functions.
Designed for industrial automation and test equipment applications. Country of origin: Taiwan, Province Of China. Explore more power supplies in the Power Supply & Distribution category at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of the RSP-3000-48 is 48V DC.
This model has a power capacity of 3kW.
It supports a universal input voltage range from 180VAC to 264VAC and DC input from 254V to 370V.
The output current rating is up to 62.5A.
It achieves an efficiency of up to 90.5%.
The dimensions are 278mm in length, 63.5mm in width, and 63.5mm in depth.
The gross weight of this model is 4 kg.
It can operate within a temperature range of -20°C to 70°C.
Yes, it includes protection features such as short circuit, overload, overvoltage, and over temperature protection.
Yes, the output voltage is trimmable between 20% and 110% of the rated voltage.
It uses forced air cooling with variable fan speed control for thermal management.
The country of origin is Taiwan, Province Of China.
