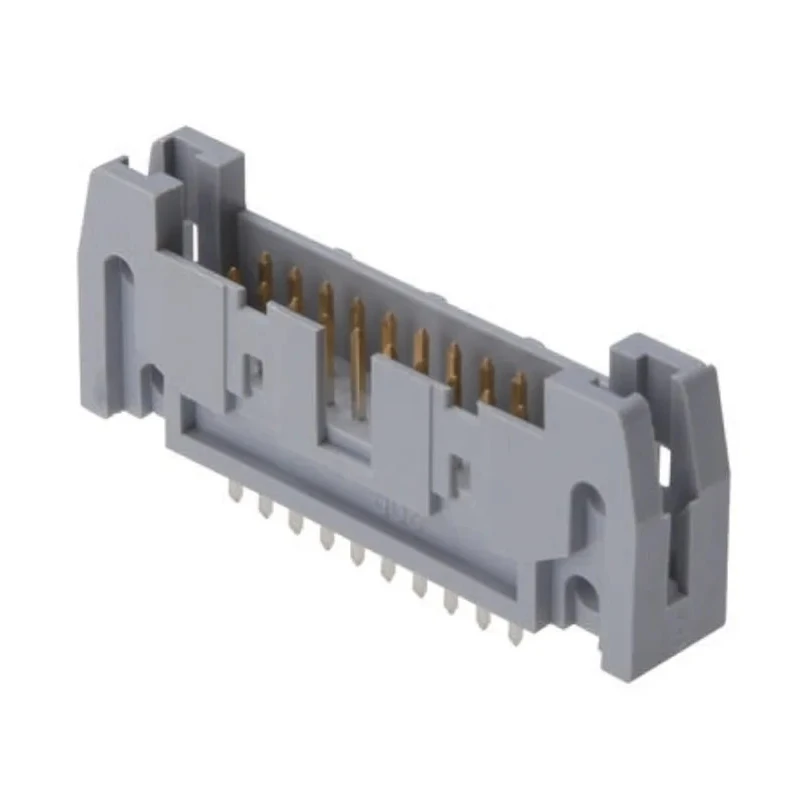

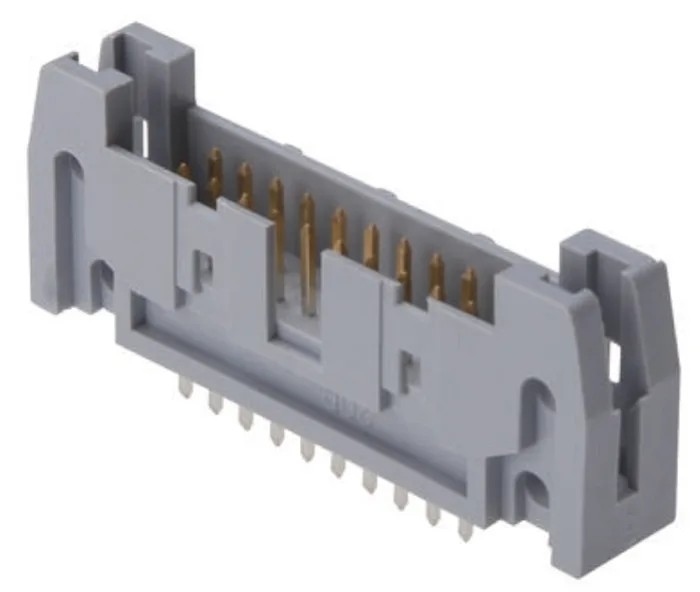

ASSMANN WSW AWH Series Straight Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded AWH 20G-0222-T

ASSMANN WSW AWH 20G-0222-T is a professional-grade PCB header designed for electronic assembly requiring reliable wire-to-board connections. This 20-contact header features a 2.54 mm pitch and a two-row straight configuration, ideal for dense PCB layouts where precise spacing and secure connections are essential.

The housing is made from polybutylene terephthalate, providing excellent mechanical strength and resistance to high temperatures up to 105°C. The copper alloy contacts are plated with gold, enhancing electrical conductivity, minimizing contact resistance, and protecting against oxidation for long-term reliability.

With a rated current capacity of 3 A and voltage of 250 V, this component suits various industrial and commercial electronic applications. Its through-hole mount type and solder termination provide sturdy attachment to printed circuit boards, ensuring robust mechanical and electrical performance.

The male contact gender and shrouded design improve connector alignment and protect contacts to prevent damage during mating operations. It operates effectively across a broad temperature range from -40°C to 105°C, accommodating harsh environmental conditions often encountered in industrial, manufacturing, and telecommunications equipment.

The product complies with RoHS directives, ensuring it meets environmental standards by restricting hazardous substances. Manufactured in China to meet quality and consistency standards, the ASSMANN WSW AWH 20G-0222-T PCB header supports advanced PCB applications requiring durability, high conductivity, and environmental compliance.

The header features a 2.54 mm pitch spacing for compatibility with standard PCB layouts. Constructed with polybutylene terephthalate housing for durability and heat resistance. Contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.

Rated for a maximum operating current of 3 A and voltage of 250 V. Designed for through-hole mount type with a solder termination ensuring secure PCB attachment. Operates reliably within a temperature range of -40°C to 105°C.

The connector system is wire-to-board with a male contact gender. Shrouded design ensures protection and alignment during mating. Compliant with RoHS standards for environmental safety. Manufactured in China, ensuring quality manufacturing standards.

This high-performance PCB header is suitable for applications in industrial electronics, telecommunications equipment, computing hardware, and other fields requiring dependable wire-to-board connectors. Explore our wide range of PCB Headers and electronic components on EnvMart for comprehensive solutions.
