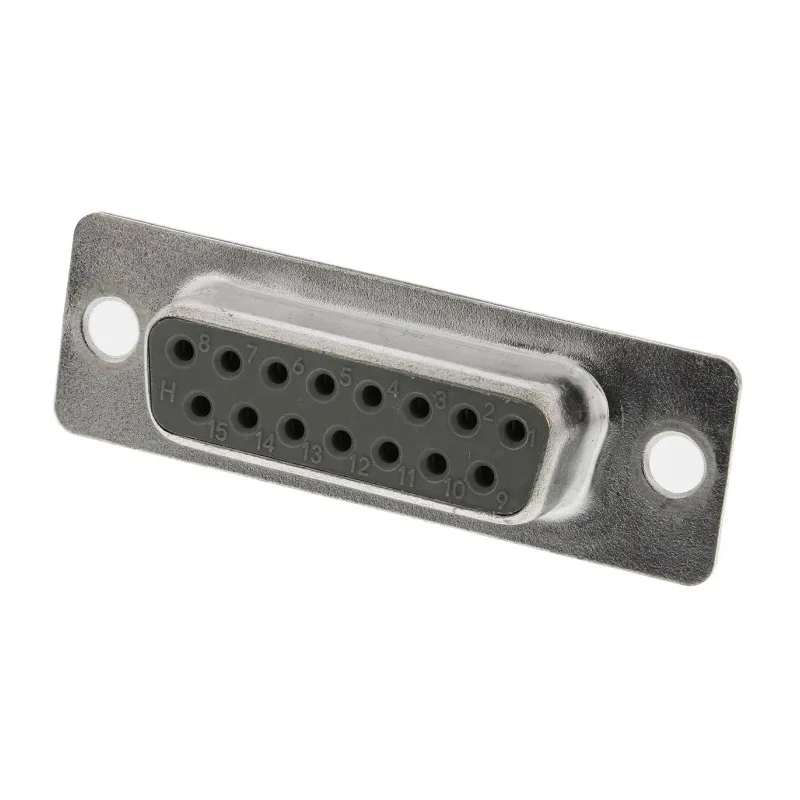

ASSMANN WSW 15 Way Straight Panel Mount Metal Housing D-Sub Connector A-DF 15 LL/G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | A-DF 15 LL/G |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Phosphor Bronze |
| Series | A-DF |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- The connector features 15 gold-plated phosphor bronze contacts for excellent electrical conductivity.
- It supports a current rating of 3A at a voltage of 500V for robust performance.
- The panel mount type with metal housing ensures secure installation and mechanical protection.
- The orientation is straight with solder termination and female contact gender.
- Operating temperature range from -55°C to 105°C allows for use in a wide range of environments.
- Shell size A provides a compact form factor suitable for various electronic applications.
- Contact plating with gold enhances corrosion resistance and signal quality.
Product Description
ASSMANN WSW A-DF 15 LL/G 15 Way Straight Panel Mount D-Sub Connector is a high-quality metal-housed connector designed to provide reliable electrical connections in industrial and electronic equipment.
This connector features 15 phosphor bronze contacts plated with gold to ensure excellent conductivity and durability under challenging operating conditions.
Rated for 3A current and 500V voltage, it maintains stable performance across a wide temperature range from -55°C to 105°C. The solder termination type and female contact gender make it suitable for panel mount configurations requiring secure soldered connections.
The metal shell and panel mount design offer robust mechanical protection against environmental and physical impacts. The shell is designed as size A to accommodate the 15-contact layout while maintaining a compact footprint.
This product is well suited for use in electronics, electrical power distribution, signal processing, industrial controls, and communications equipment where dependable D-Sub connections are critical.
The connector provides strong mechanical housing with metal construction. Gold-plated phosphor bronze contacts improve electrical performance and corrosion resistance. Operating temperature range from -55°C to 105°C supports diverse environments.
Solder cup termination ensures strong, reliable connections to panels. Panel mount design allows easy integration into equipment chassis. Compact size A shell fits applications requiring 15 contact points. Rated for up to 3A current and 500V voltage for stable electrical performance.
This ASSMANN WSW D-Sub Connector is ideal for industrial, manufacturing, laboratory, communication, power distribution, and electronics assembly applications requiring durable and precise connectors with panel mount capability. It combines mechanical robustness with reliable electrical characteristics to ensure long-lasting service.
Explore EnvMart's extensive selection of connectors for your industrial and electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A at a voltage of 500V, ensuring robust performance in various applications.
It operates within a temperature range from -55°C to 105°C, making it suitable for diverse environments.
This connector features a solder termination type, which allows for secure soldered connections.
The connector has 15 contacts, designed for reliable electrical connections.
The housing is made of metal, providing robust mechanical protection and durability.
It uses phosphor bronze for the contacts, which are plated with gold to enhance conductivity and corrosion resistance.
The connector features a straight orientation, suitable for panel mount applications.
It is designed with a shell size A, which accommodates the 15-contact layout in a compact form factor.
The contact gender is female, making it compatible with male counterparts in D-Sub configurations.
This model is suitable for use in electronics, electrical power distribution, signal processing, industrial controls, and communications equipment.
The gold-plated contacts improve electrical performance and corrosion resistance, ensuring reliable connections.
The connector is manufactured in India, ensuring adherence to quality standards.
