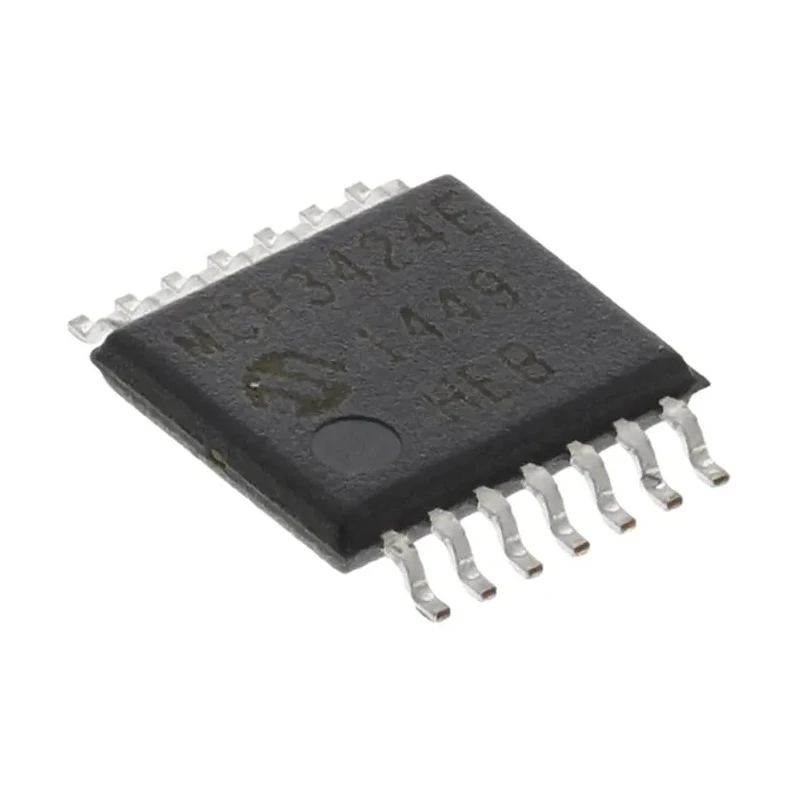

Microchip Delta Sigma 18 bit 4 ADCs ADC 4 sps Serial-I2C 14-Pin TSSOP MCP3424-E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 18 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MCP3424-E/ST |
| Mount Type | Surface |
| Sampling rate | 4sps |
| Series | MCP3424 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
Key Features
- Equipped with a 14-Pin TSSOP surface mount package.
- Operates with a supply voltage range from 5V to 5.5V.
- Features Serial-I2C interface for easy integration with digital systems.
- Supports operating temperatures from -40°C to 85°C with automotive standard AEC-Q100 compliance.
- Ideal for precision voltage input measurement in industrial and automotive applications.
- Part of the MCP3424 series providing Delta Sigma architecture for high accuracy conversion.
Product Description
Microchip MCP3424-E/ST is a high-precision analogue to digital converter designed with Delta Sigma architecture featuring 18-bit resolution across 4 ADC channels and operating at a sampling rate of 4 samples per second.
This device is housed in a compact 14-Pin TSSOP package suitable for surface mounting on PCBs. It operates reliably within a voltage supply range of 5V to 5.5V, ensuring stable and accurate conversions.
The ADC interfaces via a Serial-I2C bus, facilitating straightforward communication with microcontrollers and digital processing units.
Designed to perform in harsh environments, it meets AEC-Q100 automotive standards and supports a wide operating temperature range from -40°C to 85°C, making it suitable for both industrial and automotive electronics.
The converter's compact size (5.1 mm length and 1.2 mm height) allows integration into space-constrained applications while delivering high-performance voltage monitoring. Equipped with four ADC channels for simultaneous analog input conversion.
Delta Sigma architecture provides enhanced noise reduction and high resolution. Wide supply voltage and operating temperature range ensure robust operation under variable conditions. Serial-I2C interface simplifies control and data reception in embedded systems.
Compliance with automotive standard AEC-Q100 certifies reliability for automotive use. Compact TSSOP package optimizes board space utilization. Typical applications include industrial controls, instrumentation, automated systems, and automotive sensor signal processing.
Explore the wider range of Microchip Analogue to Digital Converters at EnvMart for advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3424-E/ST features an 18-bit resolution across its four ADC channels.
The maximum supply voltage for the MCP3424-E/ST is 5.5V.
This ADC operates within a temperature range of -40°C to 85°C.
The MCP3424-E/ST has four ADC channels for simultaneous analog input conversion.
It uses a Serial-I2C interface for communication with digital systems.
The sampling rate of this model is 4 samples per second (4sps).
This model comes in a 14-Pin TSSOP package suitable for surface mounting.
The MCP3424-E/ST employs Delta Sigma architecture for high accuracy conversion.
The MCP3424-E/ST has a height of 1.2 mm and a length of 5.1 mm.
Yes, it is compliant with the AEC-Q100 automotive standard.
This ADC is suitable for industrial controls, instrumentation, automated systems, and automotive sensor signal processing.
The MCP3424-E/ST is manufactured in India.
