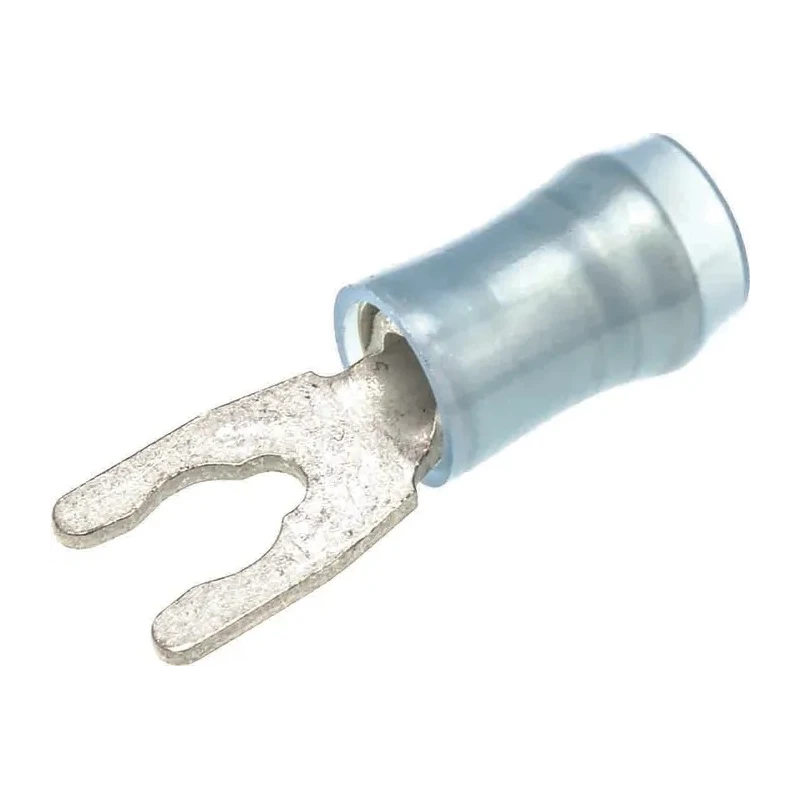

TE Connectivity PIDG Insulated Fork Terminal Nylon Blue 16 AWG to 14 AWG M3.5 Stud Size 52935-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.042in |
| Model | 52935-2 |
| Width | 0.406in |
| Insulation | Insulated |
| Overall Length | 20.29mm |
| Contact Material | Phosphor Bronze |
| Series | PIDG |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M3.5 |
Key Features
- Features a high conductivity copper body for reliable electrical connections.
- Includes a copper sleeve for enhanced wire insulation support after crimping.
- Serrated wire barrel provides maximum contact and tensile strength.
- Colour-coded blue nylon insulation sleeve simplifies wire size identification.
- Funnelled wire entry design enables fast and easy wire insertion during production.
- Compatible with many industrial and aerospace applications requiring durability and reliability.
- Constructed with phosphor bronze contact material plated with tin for corrosion resistance.
- Overall length of 20.29 mm and thickness of 0.042 inches ensure compact form factor.
Product Description
TE Connectivity 52935-2 PIDG insulated fork terminal designed for secure and uniform crimp connections on wires sized between 16 AWG to 14 AWG, featuring a M3.5 stud size and blue nylon insulation.
This terminal consists of a precision-formed high conductivity copper body combined with a copper sleeve around the barrel, which provides improved wire insulation support. The copper sleeve helps prevent wire insulation damage during bending after crimping, enhancing longevity.
The wire barrel contains serrations that ensure maximum electrical contact and tensile strength for durable connections. The blue nylon insulation sleeve is colour-coded to assist with easy identification of wire gauge, aiding in efficient wiring operations.
A funnelled wire entry assists in quick wire insertion, which is highly beneficial in high-speed manufacturing environments. This fork terminal is constructed with phosphor bronze contact material and tin plating, which ensures excellent corrosion resistance and electrical performance.
Typical applications include use in instruments, control systems, lighting fixtures, power supplies, panel boxes, transportation equipment, lifting devices, motors, aerospace systems, and household appliances. These terminals meet or exceed stringent requirements, including MIL-T-7928 Type II, Class 1 and 2 standards.
High conductivity copper body for optimal electrical flow. Copper sleeve enhances wire insulation support after crimping. Serrated barrel ensures maximum contact and tensile strength. Colour-coded nylon insulation for easy wire size identification.
Funnelled wire entry enables fast and reliable wire insertion. Corrosion-resistant tin-plated phosphor bronze contacts. Compact size with 20.29 mm length and 0.042 inch thickness. Designed for reliable connections in demanding industrial and aerospace applications.
Choose TE Connectivity PIDG terminals for advanced, durable, and reliable electrical connections suitable for a wide range of industrial and commercial uses. Explore our extensive range of wire terminals and splices on EnvMart for your specific wiring needs.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 16 AWG to 14 AWG.
The overall length of this terminal is 20.29 mm, and its thickness is 0.042 inches.
The contact material is phosphor bronze, which is plated with tin for corrosion resistance.
It features a nylon insulation sleeve that is color-coded blue for easy wire size identification.
The stud size for this terminal is M3.5.
It has a funnelled wire entry design that enables fast and easy wire insertion during production.
Typical applications include instruments, control systems, lighting fixtures, power supplies, and aerospace systems.
The minimum wire size is 1 mm², and the maximum wire size is 2.6 mm².
It includes a serrated wire barrel for maximum contact and tensile strength, ensuring reliable connections.
The country of origin for this terminal is the United States.
This terminal meets or exceeds MIL-T-7928 Type II, Class 1 and 2 standards.
The width of this terminal is 0.406 inches.
