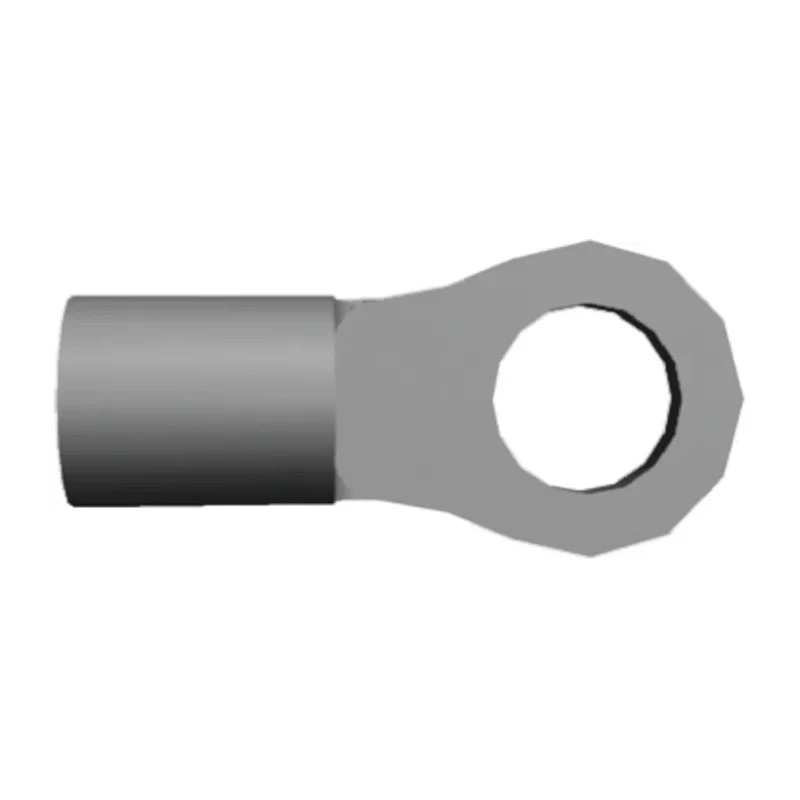

TE Connectivity Solistrand Uninsulated Ring Terminal M4 Stud Size, 12 AWG to 10 AWG Wire Size 322454

TE Connectivity 322454 Solistrand Uninsulated Ring Terminal is engineered for reliable electrical connections with M4 stud size compatibility and supports wire sizes from 12 AWG to 10 AWG. This ring terminal is constructed from premium grade copper and electro tin plated for enhanced corrosion resistance, ensuring long-term durability and optimal conductivity.

The robust design includes brazed seams that increase barrel strength and durability under harsh industrial conditions. The barrel's inner surface is serrated and dimpled to maximize the electrical contact area and mechanical grip. Its closed barrel construction features a bell-shaped entrance for smooth wire insertion, significantly reducing installation time and effort.

With a thickness of 0.79mm and overall length of 17.98mm, this uninsulated terminal offers high tensile strength and consistent performance, rated for maximum operating temperatures of up to 170°C. It is compliant with RoHS standards, making it suitable for environmentally conscious applications.

This terminal is ideal for terminating both solid and stranded wires, including irregular conductor shapes. It is widely used in various industrial sectors such as materials handling equipment, motors, heavy machinery, pad and pole mount transformers, switchgear, telecommunications, household appliances, control panels, and power supplies.

Constructed of fine grade high conductivity copper for optimal electrical performance. Electro tin plating provides enhanced resistance to corrosion. Robust design suitable for harsh industrial environments. Brazed seams increase barrel strength for mechanical durability.

Dimpled and serrated barrel maximize tensile strength and electrical contact area. Bell shaped barrel mouth allows quick and easy wire insertion. Rated for maximum operating temperature of 170°C. Supports wire sizes from 12 AWG to 10 AWG and wire cross sections from 3mm² to 6mm².

RoHS compliant, suitable for environmentally sensitive applications.

This product is manufactured in the United States by TE Connectivity, providing assured quality and reliability. It is an essential component for electrical and electronic connectivity in diverse industrial and commercial applications. Browse EnvMart categories for more TE Connectivity components and ring terminals suitable for your electrical connectivity needs.
