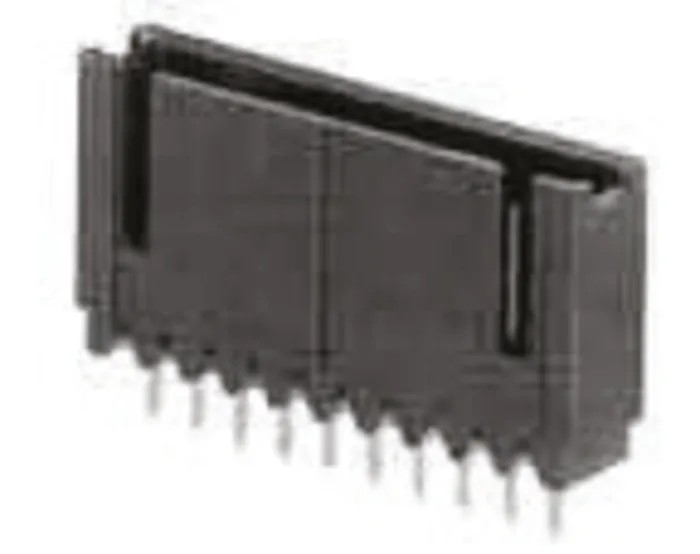

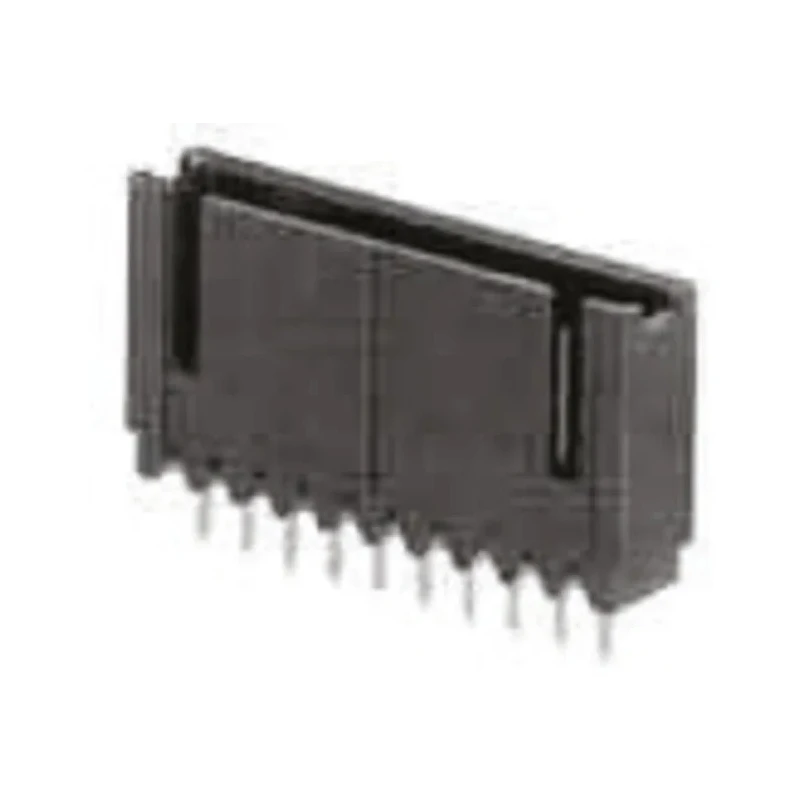

TE Connectivity AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header, 15 Contacts, 2.54 mm Pitch, 1 Row 280375-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 280375-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- The housing material is durable thermoplastic for reliable insulation.
- Contacts are made of phosphor bronze and plated with tin for corrosion resistance.
- Designed with polarization and a detent positive locking mechanism to prevent mismating.
- Supports a voltage of up to 750V, suitable for industrial applications.
- Operating temperature ranges from -65°C to 105°C, ensuring performance in harsh environments.
- Single-row configuration with a 3.5 mm tail pin length for stable solder connections.
- Ideal for automotive controls, telecommunications, medical instruments, and industrial test equipment.
Product Description
TE Connectivity 280375-1 AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header features a 2.54 mm pitch with 15 male contacts arranged in a single row, offering reliable electrical connectivity for board-to-board and wire-to-board systems.
The connector housing is made of robust thermoplastic material that is polarized to prevent mismating, and it provides shrouding on three sides for enhanced pin protection.
The phosphor bronze contacts are tin plated to ensure signal integrity and resistance to corrosion. The tail pins are 3.5 mm long to facilitate stable soldering for through-hole mounting.
This PCB header supports a maximum voltage rating of 750V and operates effectively between a minimum temperature of -65°C and a maximum of 105°C, making it suitable for demanding industrial and automotive environments.
It includes a detent positive locking mechanism to secure mating with compatible receptacle connectors, preventing unintentional disconnection during operation.
Applications include use in automotive control systems, telecommunications equipment, industrial and test equipment, medical instruments, storage solutions, and consumer appliances.
The AMPMODU Mod II interconnect system is recognized worldwide as a reliable, compact, and economical solution for automated and control system signal connections. The housing material is durable thermoplastic for reliable insulation.
Contacts are made of phosphor bronze and plated with tin for corrosion resistance. Designed with polarization and a detent positive locking mechanism to prevent mismating. Supports voltages up to 750V, suitable for industrial applications.
Operating temperature range from -65°C to 105°C for harsh environment compatibility. Single-row, straight orientation with 3.5 mm tail pin length for through-hole mounting. Ideal for automotive, telecommunications, medical, and industrial applications.
Explore the full range of PCB Headers and discover components engineered for high performance and reliability at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage rating of 750V, making it suitable for industrial applications.
It operates effectively within a temperature range of -65°C to 105°C, ensuring performance in harsh environments.
This unit features 15 male contacts arranged in a single row, designed for reliable connectivity.
The housing is made of durable thermoplastic, while the contacts are made of phosphor bronze and plated with tin for corrosion resistance.
The pitch size for this model is 2.54 mm, which is standard for many PCB applications.
It utilizes a through-hole mounting type, facilitating stable solder connections during installation.
Yes, it is designed with a detent positive locking mechanism to prevent mismating and secure connections with compatible receptacles.
The tail pin length is 3.5 mm, which aids in stable soldering for through-hole mounting.
It is ideal for automotive controls, telecommunications, medical instruments, and industrial test equipment.
This model is shrouded, providing enhanced pin protection on three sides.
It features a solder termination type, suitable for secure connections on printed circuit boards.
The country of origin for this PCB header is India.
