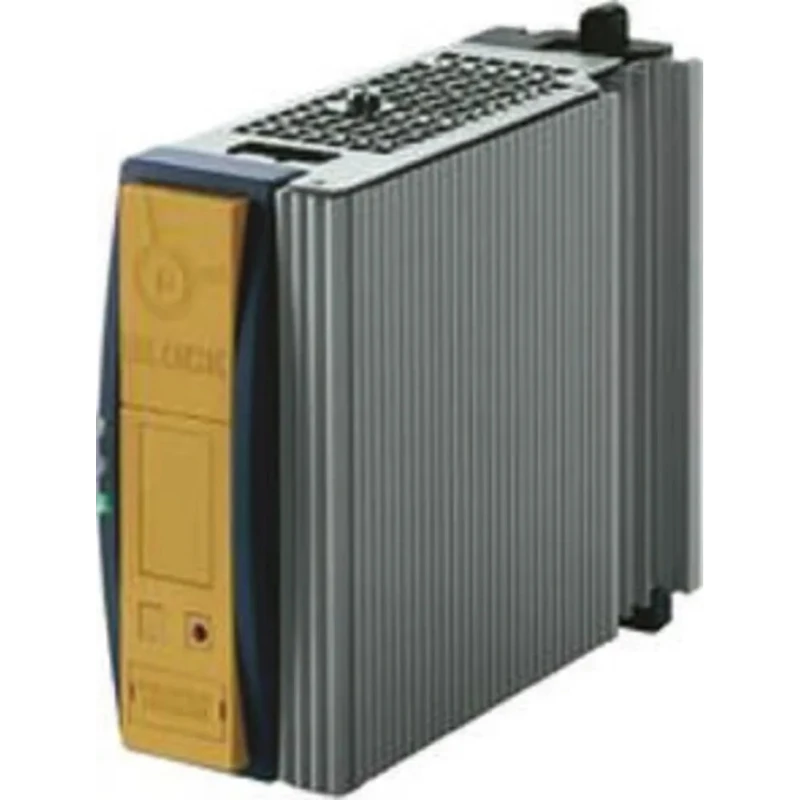

Block PVSE 400 Series Switched Mode DIN Rail Power Supply 28.8V DC 20A Output 480W PVSE 400/24-20

Free Delivery in India | Lowest Global Shipping Charges

Block PVSE 400 Series Switched Mode DIN Rail Power Supply 28.8V DC 20A Output 480W PVSE 400/24-20

Name: Block PVSE 400 Series Switched Mode DIN Rail Power Supply 28.8V DC 20A Output 480W PVSE 400/24-20
Brand: Block
SKU: 125518
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supplies Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Power	480W
Efficiency	90%
Height	127mm
Model	PVSE 400/24-20
Depth	127mm
Width	77mm
Series	PVSE 400
Output Current	20A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	550V ac
Electrical Phase	3
Maximum Output Voltage	28.8V dc
Minimum Input Voltage	340V ac

Key Features

Supports three-phase AC input voltage up to 550V with a minimum input of 340V AC.
Operates efficiently at 90% efficiency rating to reduce energy loss.
Designed to function reliably within -10°C to 70°C operating temperature range.
Compact dimensions of 127mm height, 77mm width, and 127mm depth ensure space-saving installation.
Features a single output channel for stable DC voltage delivery.
Includes service-friendly spring-loaded connector system for ease of installation and maintenance.
Provides up to 200% real power boost capability for 4 seconds to handle transient loads.
Built with high installation flexibility suitable for varied industrial applications.

Product Description

Block PVSE 400/24-20 is a switched mode DIN rail power supply featuring 28.8V DC output voltage at a maximum output current of 20A, delivering total power of 480 watts. This three-phase AC input power supply accepts voltages from 340V AC up to a maximum 550V AC, ensuring compatibility with varied power sources.

Engineered with compact dimensions of 127mm height, 77mm width, and 127mm depth, it fits conveniently into dense panel layouts, offering a space-saving solution for power supply needs.

This power supply is designed for high reliability and efficiency, operating with efficiency up to 90%, which reduces energy consumption and heat generation. It can function within a wide operating temperature range of -10°C to +70°C, making it suitable for harsh industrial environments.

The unit features a service-friendly spring-loaded connector system, providing ease of wiring and maintenance. It also supports up to 200% real power boost for short transient periods of up to 4 seconds, accommodating high surge currents without damage.

The PVSE 400/24-20 model is well-suited for industrial automation, manufacturing plants, HVAC systems, and other commercial applications requiring stable and reliable DC power supply. It enables high system availability thanks to its technical advancement and design optimization.

Compact design with stabilised, adjustable output voltage. Single output channel for reliable power delivery. Wide AC input voltage range with three-phase support. High efficiency of 90% to save energy. Wide operating temperature range from -10°C to 70°C.

200% power boost capability for 4 seconds. Service-friendly spring-loaded connectors. High installation flexibility for diverse applications. Manufactured in Germany ensuring quality standards.

The Block PVSE 400 series is recognized globally for its technical superiority in power supply systems, providing cost-effective and efficient power solutions. Browse EnvMart's Power Supplies category for more options to meet your industrial and electronic power requirements.

Explore more products in our DIN Rail Power Supplies category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model provides a stable output voltage of 28.8V DC with a maximum output current of 20A, delivering a total power of 480 watts.

It operates with an efficiency rating of up to 90%, which helps reduce energy consumption and heat generation.

The PVSE 400/24-20 is designed to function reliably within an operating temperature range of -10°C to +70°C.

The compact dimensions of this model are 127mm in height, 77mm in width, and 127mm in depth, making it suitable for space-saving installations.

It accepts three-phase AC input voltages ranging from a minimum of 340V AC to a maximum of 550V AC.

This unit features a real power boost capability of up to 200% for short durations of 4 seconds, allowing it to handle transient loads without damage.

It includes a service-friendly spring-loaded connector system, which facilitates ease of installation and maintenance.

The PVSE 400/24-20 has a single output channel designed for stable DC voltage delivery.

It is well-suited for industrial automation, manufacturing plants, HVAC systems, and other commercial applications that require stable and reliable DC power supply.

This power supply is manufactured in Germany, ensuring adherence to quality standards.

This model operates on a three-phase electrical supply, making it compatible with various industrial power systems.

The product information does not specify any certifications or standards; it is essential to confirm requirements through an enquiry.
