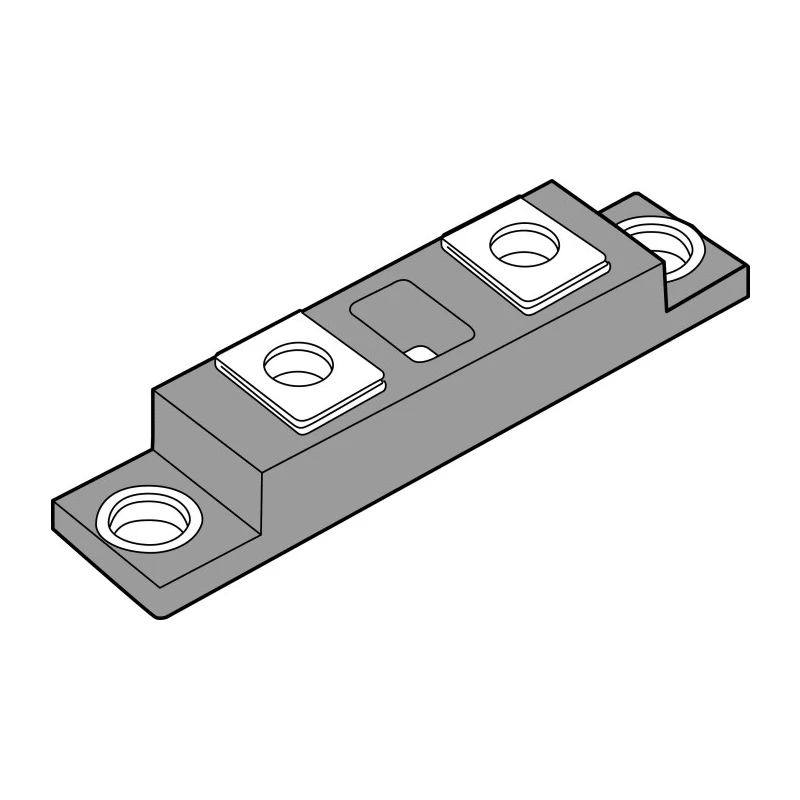

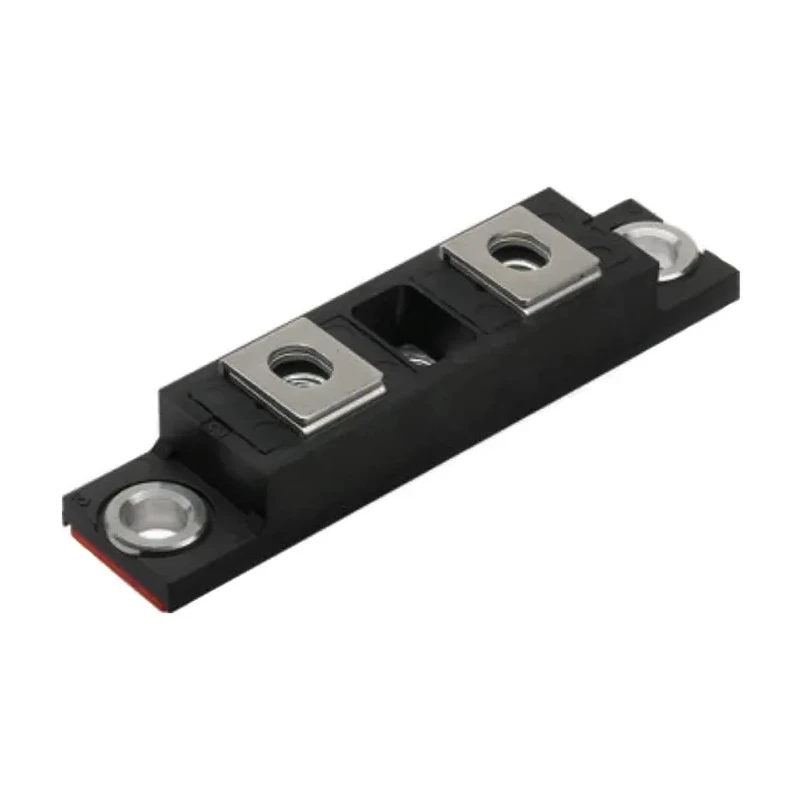

Vishay Schottky Diode 40 V 300 A 3-Pin TO-244 VS-301CNQ040PBF

Vishay VS-301CNQ040PBF Schottky Diode in a TO-244 3-pin package is designed for applications requiring fast switching and low power dissipation. It supports a maximum continuous forward current of 300 A and peak reverse repetitive voltage of 40 V, making it ideal for power electronic circuits.

This diode exhibits a very low forward voltage drop of 0.59 V, optimizing energy efficiency and reducing heat generation during operation. Its fast switching characteristics are suitable for industrial, automotive, and power management applications.

Constructed with a common cathode diode configuration, it supports a broad operating temperature range from -55°C to 175°C, ensuring reliable performance even under harsh environmental conditions.

The TO-244 package with panel mount capability facilitates ease of installation and enhanced thermal management. The device has 3 pins and physical dimensions of 93 mm length, 21 mm width, and 17.5 mm height.

Typical use cases include power supplies, switching regulators, and high current rectification tasks in industrial, automotive, and electronics manufacturing sectors. The diode features a maximum continuous forward current of 300 A.

Peak reverse repetitive voltage rating of 40 V enables robust voltage handling. Low forward voltage drop of 0.59 V reduces conduction losses. Wide operating temperature range from -55°C up to 175°C for durable performance.

Peak non-repetitive forward surge current of 16 kA supports transient load conditions. 3-Pin TO-244 package ensures compatibility and reliable mounting. Common cathode configuration supports various circuit topologies.

Vishay products like the VS-301CNQ040PBF diode are trusted in semiconductor and power electronic applications. Explore additional semiconductor components and Schottky diode options in the Electronics & Electricals category at EnvMart.
