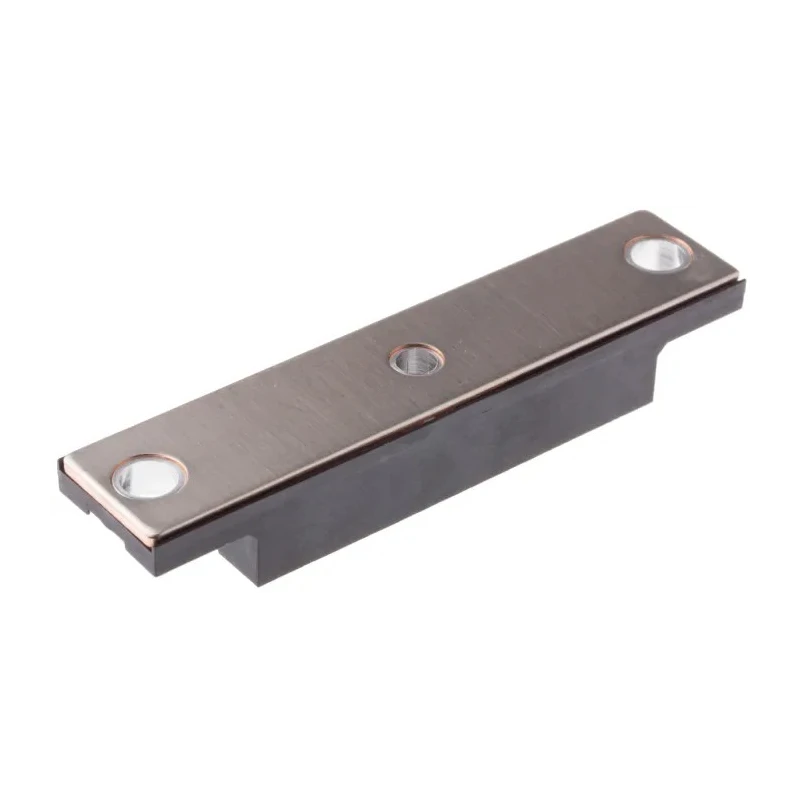

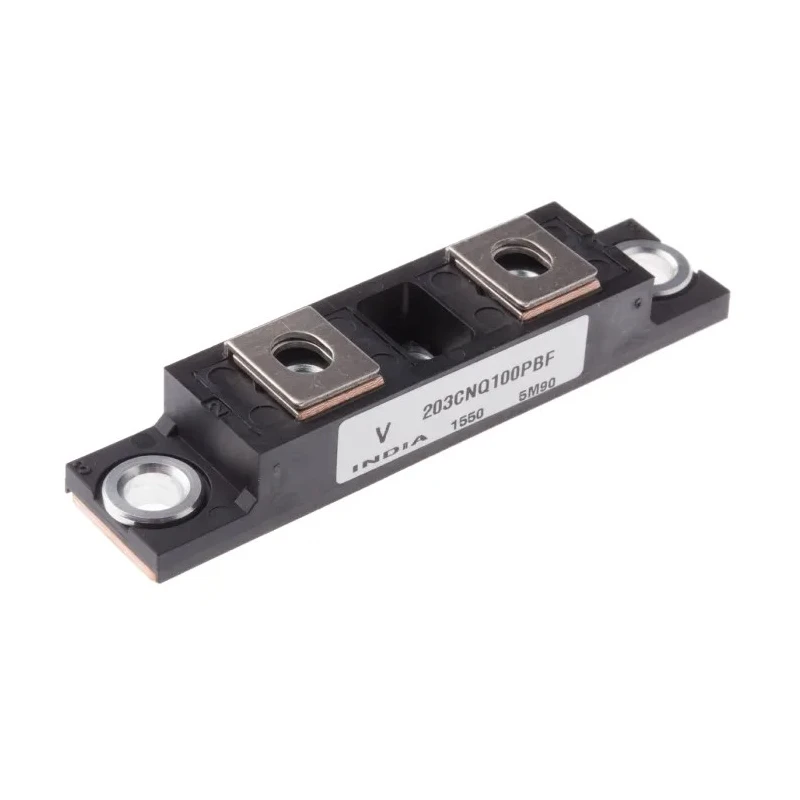

Vishay 100 V 200 A Schottky Diode 3-Pin TO-244 VS-203CNQ100PBF

The Vishay VS-203CNQ100PBF is a 3-pin Schottky diode designed for panel mounting with a TO-244 package that supports a maximum continuous forward current of 200 A and a peak reverse voltage of 100 V. This diode exhibits a low forward voltage drop of 1.03 V and can operate at temperatures ranging from -55°C to 175°C, making it highly suited for demanding power electronics environments.

Schottky rectifiers from Vishay provide extremely fast switching capabilities and low power loss, with reverse recovery times significantly shorter than traditional diodes. The common cathode configuration and robust mechanical design allow for efficient current handling and thermal management. The peak non-repetitive forward surge current rating of 16 kA ensures excellent transient handling capability under extreme conditions.

Its compact physical form factor with dimensions of 93 mm length, 21 mm width, and 17.5 mm height enables integration in constrained spaces, while the 3-pin configuration facilitates secure electrical connections. These devices are ideal for industrial power supplies, commercial electronics, renewable energy converters, and other high-current semiconductor applications that demand reliable performance and efficiency.

Vishay's extensive expertise in semiconductor technology ensures high quality and compliance with industry standards, though this particular model does not carry automotive certification. These Schottky diodes help reduce switching losses and thermal stress, enhancing overall system reliability and efficiency.

Features a panel mount type with TO-244 package for mechanical stability. Low forward voltage drop of 1.03 V to minimize power loss. Supports peak non-repetitive forward surge current up to 16 kA. Operates reliably in temperatures from -55°C to a maximum of 175°C.

Designed with a common cathode diode configuration and 3 pins for connectivity. Compact dimensions of 93 mm length, 21 mm width, and 17.5 mm height. Offers extremely fast switching with low reverse recovery times for efficiency.

Suitable for industrial, power supply, and high-current electronic applications. Explore more high-quality semiconductors and power rectifiers to enhance your electronic designs at EnvMart.
