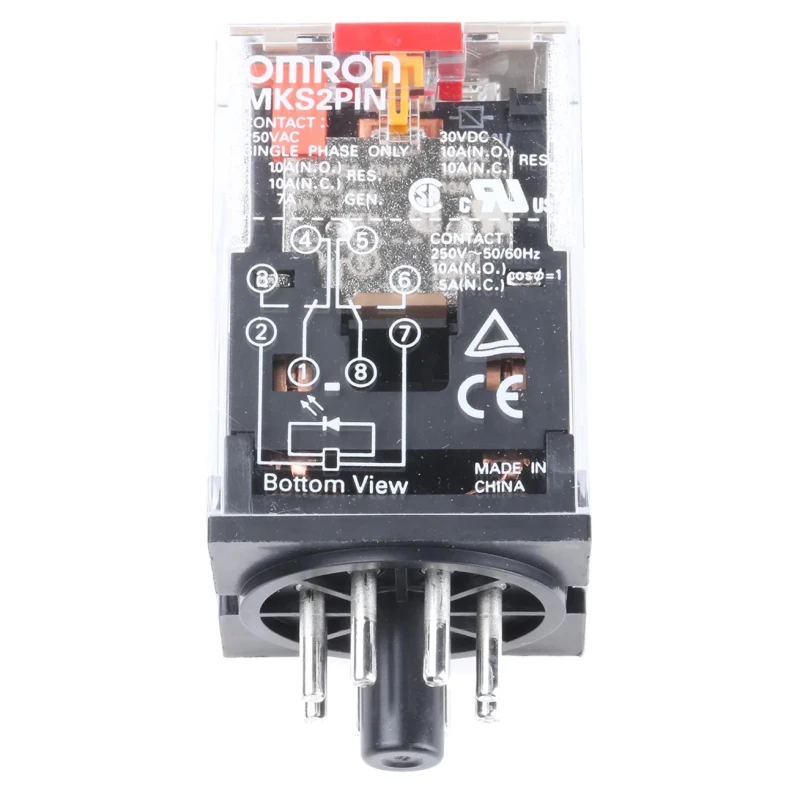

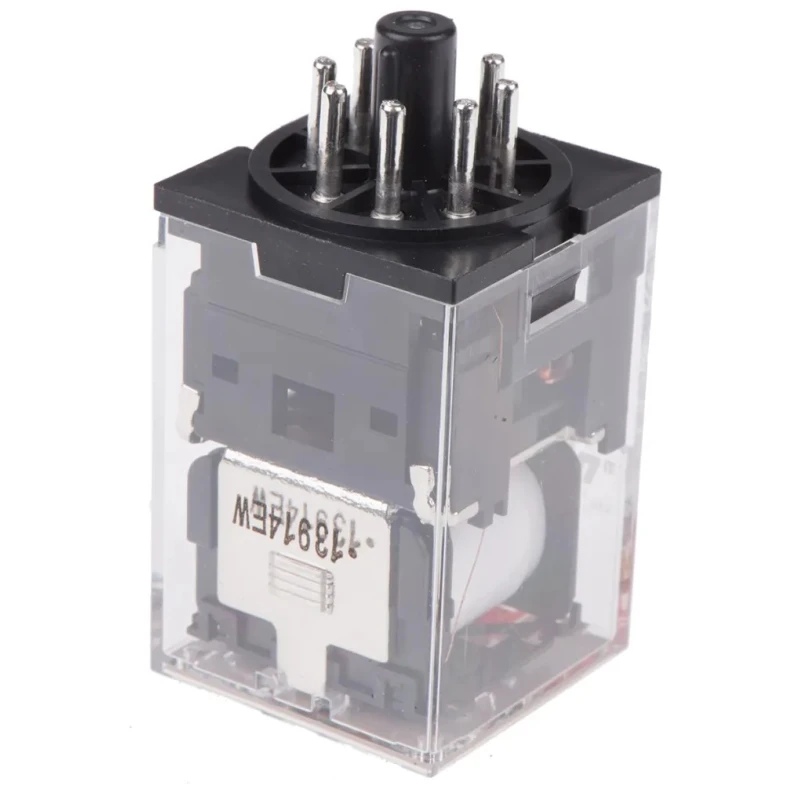

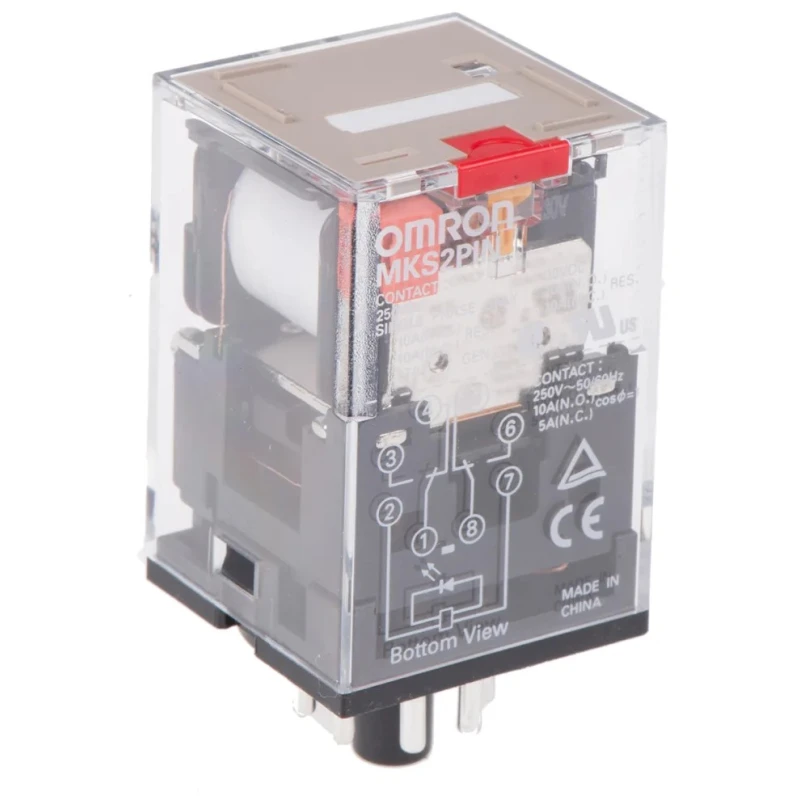

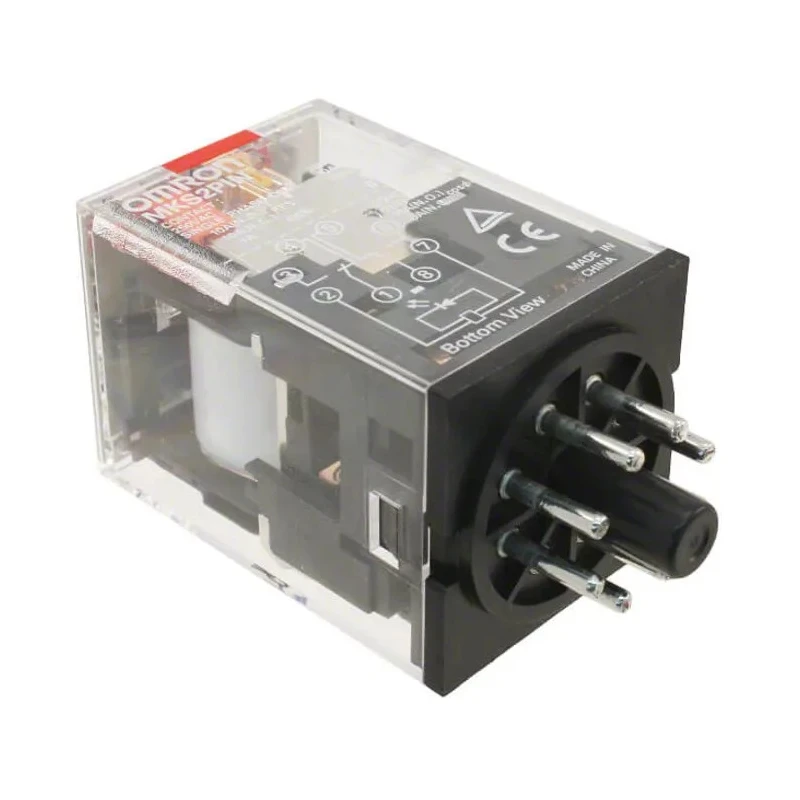

Omron Power Relay DPDT 230V AC Coil, 10A Switching Current MKS2PIN 230VAC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 53.3mm |
| Length | 34.5mm |
| Model | MKS2PIN 230VAC |
| Width | 34.5mm |
| Contact Material | Silver Alloy |
| Series | MKS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 4.3kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Omron Non-Latching Relay, 10A Switching CurrentBrand | Omron |
Key Features
- Designed for 230V AC coil voltage ensuring versatile industrial applicability.
- Double Pole Double Throw (DPDT) contact configuration for enhanced circuit control.
- Plug-in terminal type allows convenient installation and replacement.
- High switching current capability of 10A suitable for heavy-duty applications.
- Silver alloy contacts ensure durability and low contact resistance.
- Operating temperature range from -25°C to 60°C suitable for various environments.
- Compact size with 53.3mm height and 34.5mm length and width dimensions.
- Non-latching design simplifies implementation in automation and control circuits.
Product Description
Omron MKS2PIN 230VAC power relay features a 230V AC coil with a 10A switching current capability and DPDT contact configuration, making it ideal for precise control in industrial and commercial applications.
This plug-in type Power Relay provides easy installation and replacement in automated systems. Its silver alloy contacts contribute to long-term durability and reliability by maintaining low contact resistance (100mΩ) during operation.
Designed to withstand operating temperatures ranging from -25°C to 60°C, it performs reliably under diverse environmental conditions. The compact construction, measuring 53.3mm in height and 34.5mm in both length and width, allows integration into standard plug-in sockets.
The relay supports switching voltages up to 250V AC and DC, enabling broad application versatility in controlling motors, actuators, alarm systems, HVAC machinery, and commercial lighting.
Designed for 230V AC coil voltage ensuring versatile industrial applicability. Double Pole Double Throw (DPDT) contact configuration for enhanced circuit control. Plug-in terminal type allows convenient installation and replacement.
High switching current capability of 10A suitable for heavy-duty applications. Silver alloy contacts ensure durability and low contact resistance. Operating temperature range from -25°C to 60°C suitable for various environments.
Compact size with 53.3mm height and 34.5mm length and width dimensions. Non-latching design simplifies implementation in automation and control circuits. Compliance with RoHS standards ensures environmental safety. Ideal for controlling motors, actuators, alarms, HVAC, and lighting systems.
This relay is commonly used in industrial automation, electrical control panels, HVAC systems, and commercial building lighting control. The robust construction and reliable switching capabilities make it a key component for precise circuit management.
Discover more high-quality relays and contactors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capability of 10A, making it suitable for heavy-duty applications.
The coil voltage for this relay is 230V AC, ensuring versatile industrial applicability.
It features a Double Pole Double Throw (DPDT) contact configuration, which enhances circuit control.
The relay has a compact size with dimensions of 53.3mm in height and 34.5mm in both length and width.
This relay operates effectively within a temperature range of -25°C to 60°C, suitable for various environments.
The contacts are made of silver alloy, which ensures low contact resistance and contributes to durability.
It uses a plug-in terminal type, allowing for convenient installation and replacement.
The relay supports switching voltages up to 250V AC and 250V DC, providing broad application versatility.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is commonly used in industrial automation, electrical control panels, HVAC systems, and commercial building lighting control.
The contact resistance is 100mΩ during operation, contributing to efficient performance.
The coil resistance for this model is 4.3kΩ, which is relevant for its operation.
