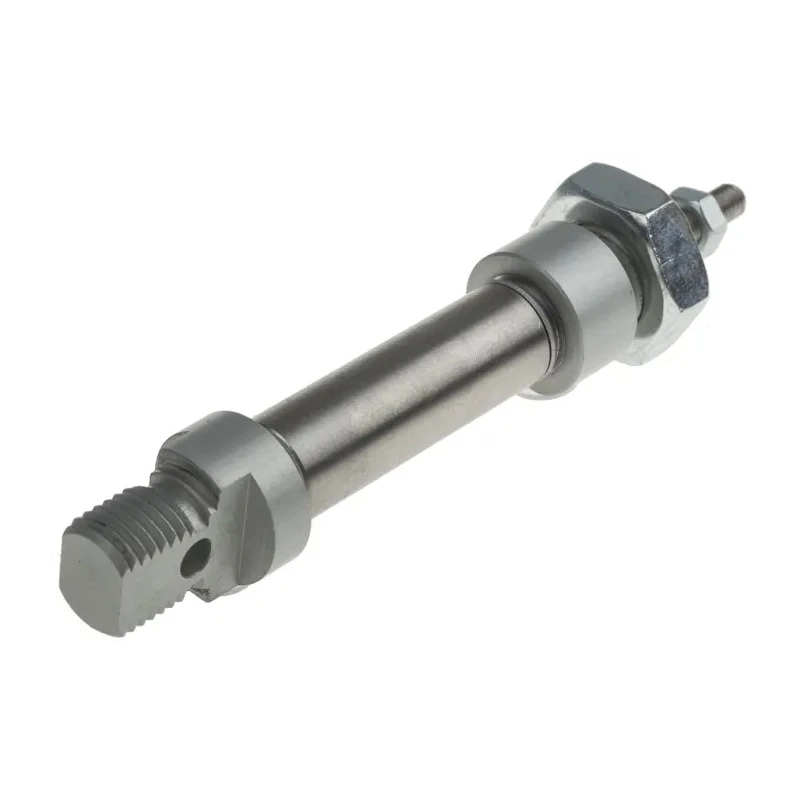

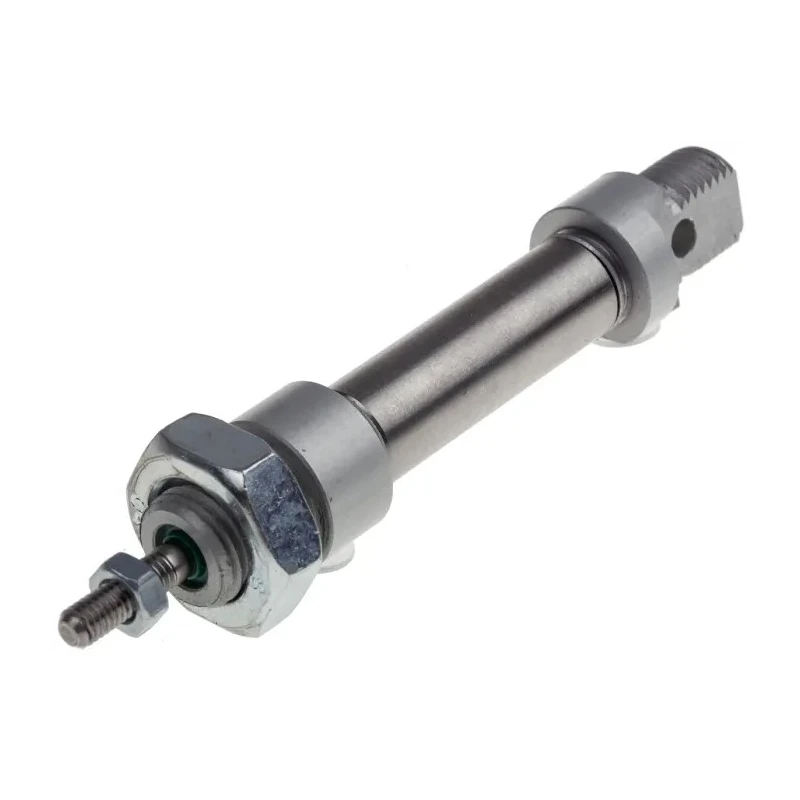

RS PRO Pneumatic Piston Rod Cylinder 10mm Bore, 10mm Stroke, Double Acting, Foot Mount, Stainless Steel Body 304-3397
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Model | 304-3397 |
| Mount Type | Foot |
| Pressure Range | 1-10 bar |
| Series | ISO 6432 |
| Medium | Compressed air, filtered, lubricated or non-lubricated |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 10mm |
| Bore Diameter | 10mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Buffer |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M12 x 1.25 |
| Ambient temp. Range | -20°C to +80°C |
| Aerotight, Plain Steel Locknut, RoHS, MetricBrand | Aerotight |
Key Features
- This cylinder features a foot mount for secure installation.
- Constructed with a stainless steel body for corrosion resistance.
- Includes a single type piston rod with female thread M12 x 1.25.
- Equipped with buffer type cushioning and anodised aluminium end caps.
- Suitable for operating pressures up to 10 bar and temperature range from -20°C to +80°C.
- Complies with ISO 6432 series and RoHS standards.
- Designed for use with filtered, lubricated or non-lubricated compressed air.
- Includes nose nut and piston rod nut for assembly.
Product Description
RS PRO 304-3397 Pneumatic Piston Rod Cylinder is designed with a 10mm bore diameter and 10mm stroke length, delivering reliable performance in industrial pneumatic systems. This double acting cylinder features a foot mount type for stable attachment in various mechanical and fluid power setups.
The body is made from high-grade stainless steel (AISI 304), ensuring durability and high resistance to corrosion. The piston rod is constructed with AISI 303 stainless steel and includes a female thread size of M12 x 1.25 conforming to metric standards.
Equipped with buffer cushioning and anodised aluminium end caps, the cylinder provides smooth operation and extends service life. It operates efficiently within an ambient temperature range of -20°C to +80°C and at maximum operating pressures of 10 bar.
The design follows the ISO 6432 series specifications and complies with RoHS environmental standards. It is compatible with compressed air mediums that are filtered, lubricated or non-lubricated, making it adaptable for various industrial pneumatic applications.
This cylinder is supplied complete with a nose nut and piston rod nut for straightforward fitting. It is an ideal solution for pneumatic actuation requirements in manufacturing, automation, and fluid power industries.
This cylinder features a foot mount for secure installation. Constructed with a stainless steel body for corrosion resistance. Includes a single type piston rod with female thread M12 x 1.25. Equipped with buffer type cushioning and anodised aluminium end caps.
Suitable for operating pressures up to 10 bar and temperature range from -20°C to +80°C. Complies with ISO 6432 series and RoHS standards. Designed for use with filtered, lubricated or non-lubricated compressed air. Includes nose nut and piston rod nut for assembly.
Explore more pneumatic cylinders and fluid power tools in EnvMart's Industrial Tools & Equipment category for your application needs.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pneumatic cylinder features a bore diameter of 10mm and a stroke length of 10mm.
The maximum operating pressure for this model is 10 bar.
The body of the cylinder is made from stainless steel (AISI 304), while the piston rod is constructed from AISI 303 stainless steel.
This cylinder is equipped with buffer type cushioning, which helps provide smooth operation.
It can operate within a temperature range from -20°C to +80°C.
Yes, it complies with the ISO 6432 series specifications and RoHS environmental standards.
This model features a foot mount type for secure installation.
The piston rod has a female thread size of M12 x 1.25, conforming to metric standards.
It is designed for use with filtered, lubricated, or non-lubricated compressed air.
The cylinder is supplied complete with a nose nut and piston rod nut for straightforward fitting.
This pneumatic cylinder has a double acting action type, allowing it to push and pull.
This cylinder is manufactured in Italy.
