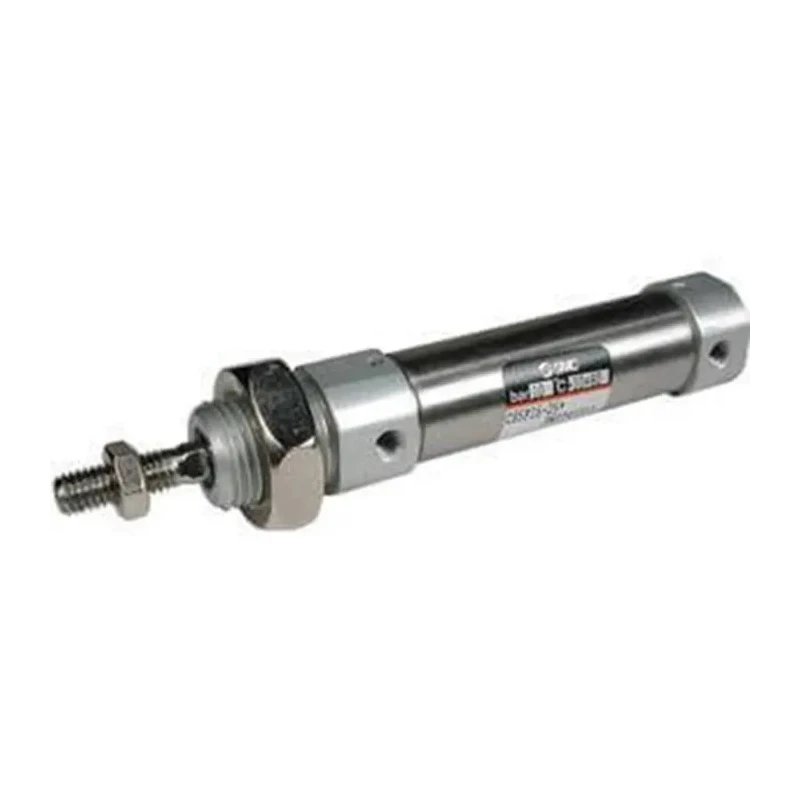

SMC 20 mm Double Acting Pneumatic Cylinder Aluminium Alloy Body, Clevis Mount, Rubber Bumper Cushioning CD85
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber Bumper |
| Maximum Piston Speed | 1500 mm/s |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M6 |
Key Features
- Compact design suitable for automation and mechanical systems.
- Maximum piston speed of 1500 mm/s enables high-speed cycling.
- Clevis mounting allows easy pivot installation.
- Rubber bumper cushioning reduces impact at end stroke for extended durability.
- Single male piston rod with metric M6 thread for standard attachments.
- Conforms to ISO 6432 dimensional standard ensuring interchangeability.
- Maximum operating temperature of 80°C for reliable performance.
- Ideal for pick-and-place operations and pneumatic gripping mechanisms.
Product Description
SMC CD85N12-20-B is a high-performance double acting pneumatic cylinder from the CD85 series with a 20 mm stroke length. Constructed with an aluminium alloy body, this cylinder offers reduced mass making it perfect for dynamic and compact automation applications. The double acting design enables controlled linear motion through bidirectional air supply for efficient extension and retraction.
This model comes equipped with a clevis mount for simple pivot-based connections using standard pins. It utilizes a single male piston rod with a metric M6 thread standard, providing compatibility with common pneumatic attachments.
Featuring rubber bumper cushioning, the cylinder substantially reduces impact at the end of its stroke, enhancing lifespan and operational stability. The maximum piston speed reaches up to 1500 mm/s, supporting fast cycling necessary for high-speed automated tasks.
Conforming to the ISO 6432 dimensional standard, the CD85N12-20-B ensures ease of replacement and interchangeability in pneumatic systems. The cylinder can operate continuously at temperatures up to 80°C, making it suitable for a broad range of industrial and mechanical environments.
Compact design suitable for automation and mechanical systems. Maximum piston speed of 1500 mm/s enables high-speed cycling. Clevis mounting allows easy pivot installation. Rubber bumper cushioning reduces impact at end stroke for extended durability.
Single male piston rod with metric M6 thread for standard attachments. Conforms to ISO 6432 dimensional standard ensuring interchangeability. Maximum operating temperature of 80°C for reliable performance. Ideal for pick-and-place operations and pneumatic gripping mechanisms.
This double acting pneumatic cylinder is widely used in industrial automation including electronics manufacturing, electrical enclosure panel actuation, testing jigs requiring short strokes, and small feed systems. Its compact form factor and robust build make it a versatile actuator for precision linear motion in various industrial fields.
Explore the range of Pneumatic Piston Rod Cylinders on EnvMart for reliable and efficient linear actuation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 20 mm.
It can operate continuously at temperatures up to 80°C.
This model features a clevis mount for easy pivot-based connections.
The maximum piston speed is 1500 mm/s, allowing for high-speed cycling.
The body is constructed from aluminium alloy, which contributes to its reduced mass.
It utilizes rubber bumper cushioning to reduce impact at the end of the stroke.
The piston rod has a metric M6 thread standard for compatibility with common pneumatic attachments.
This model conforms to the ISO 6432 dimensional standard, ensuring interchangeability in pneumatic systems.
It is a double acting cylinder, allowing controlled linear motion through bidirectional air supply.
It is ideal for applications such as pick-and-place operations and pneumatic gripping mechanisms.
The rod type is single, featuring a male piston rod.
Specific dimensions are not provided, but it conforms to the ISO 6432 standard for compatibility in pneumatic systems.
