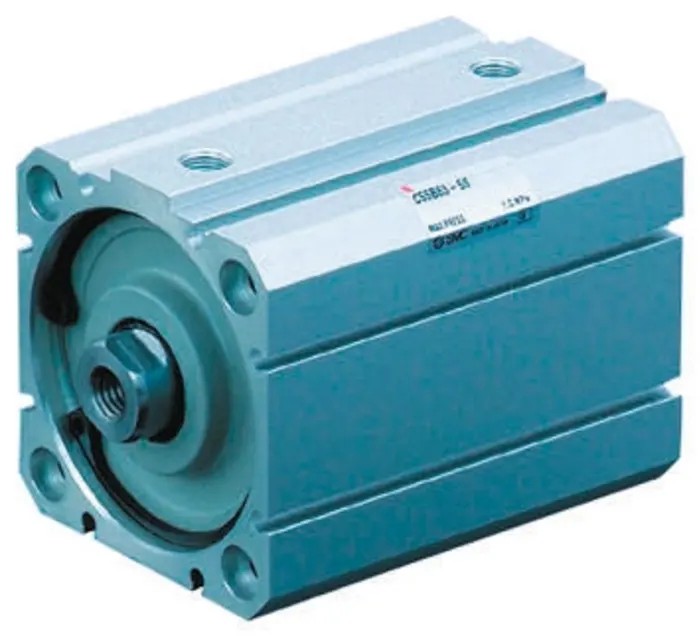

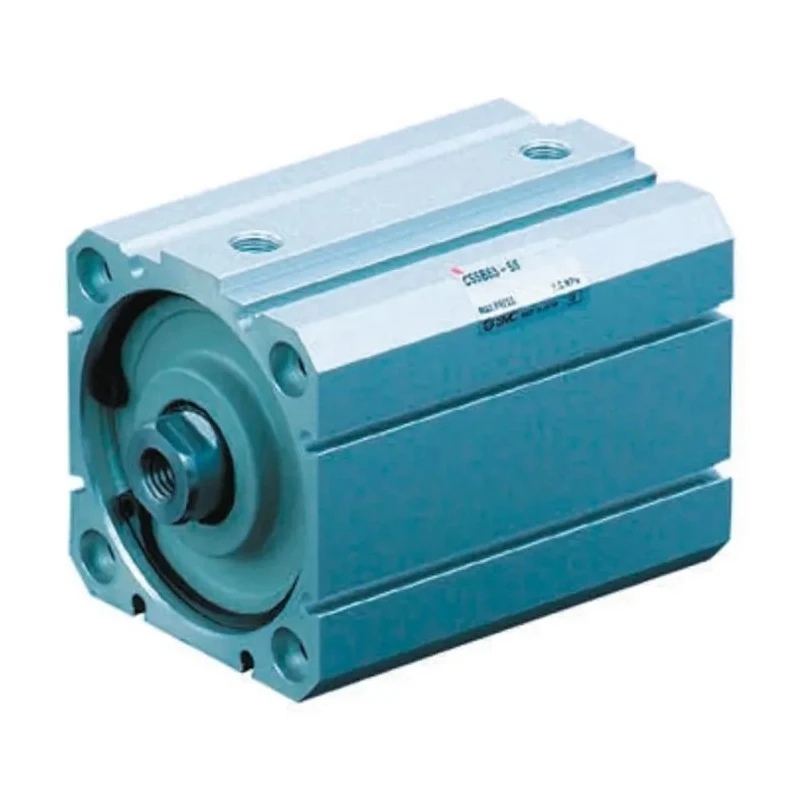

SMC Pneumatic Compact Cylinder 20mm Bore, 100mm Stroke, Aluminium Alloy Body, Double Acting CD55B20-100M
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 36mm |
| Length | 143mm |
| Model | CD55B20-100M |
| Gross Weight | 357g |
| Width | 36mm |
| Mount Type | Through Hole |
| Series | CD55 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 100mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 10 mm |
Key Features
- The aluminium alloy hard anodized body ensures corrosion resistance and durability.
- Double acting action type with magnetic piston sensing standard.
- Maximum operating pressure is 1 Mpa for reliable pneumatic control.
- Rubber cushioning reduces impact and noise during operation.
- Rod type is single with male piston rod of 10mm thread size, metric standard.
- Operates in temperature range -10°C to 70°C for versatile industrial use.
- ISO 21287 standard compliant ensuring quality and interchangeability.
- Maximum piston speed 500mm/s for efficient automation processes.
Product Description
SMC CD55B20-100M Pneumatic Compact Cylinder belongs to the CD55 series offering high reliability with double acting operation. This compact ISO 21287 standard cylinder features a 20mm bore and 100mm stroke length, housed in a hard anodized aluminium alloy body that delivers corrosion resistance and longevity in industrial environments.
Designed for precise automation, it supports magnetic piston sensing as standard, providing accurate position detection and enhanced control. The cylinder has a maximum operating pressure of 1 Mpa and can withstand temperatures ranging from -10°C to 70°C, making it suitable for a wide range of manufacturing, pneumatic, and fluid power applications.
The compact form factor with a total length of 143mm and a square cross-section of 36mm by 36mm height and width facilitates installation in tight spaces. The piston rod is single type with a male thread of 10mm metric size, ideal for mounting various attachments and tooling.
Additional features include rubber cushioning to minimize impact noise and wear, and a piston speed capable of up to 500mm/s for fast response performance. Compliance with ISO 21287 standard assures interchangeability and quality assurance for industrial assembly lines.
The aluminium alloy body enhances durability and withstands challenging environments. Double acting action type supports bidirectional pneumatic movement. Rubber cushioning provides smooth operation and reduces mechanical shock.
Compact size makes this cylinder ideal for space-limited applications. Magnetic sensing feature facilitates integration into automation systems. Reliable operation between -10°C and 70°C for flexibility in diverse climate conditions.
This SMC pneumatic compact cylinder is suitable for use in industrial automation, manufacturing equipment, pneumatic control systems, fluid power setups, and other commercial or laboratory pneumatic applications requiring precise movement control. Explore more in the Hydraulics & Pneumatics category on EnvMart for complementary pneumatic components and accessories.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 20mm.
The maximum stroke length is 100mm.
It has a maximum operating pressure of 1 Mpa.
The dimensions are 143mm in length, 36mm in width, and 36mm in height.
This model uses a double acting action type.
It operates within a temperature range of -10°C to 70°C.
It features rubber cushioning to reduce impact and noise during operation.
The piston rod has a thread size of 10mm and is of male type.
Yes, it complies with the ISO 21287 standard for quality and interchangeability.
The gross weight is 357g.
The body is made of aluminium alloy, providing corrosion resistance.
It is suitable for industrial automation, manufacturing equipment, and pneumatic control systems.
