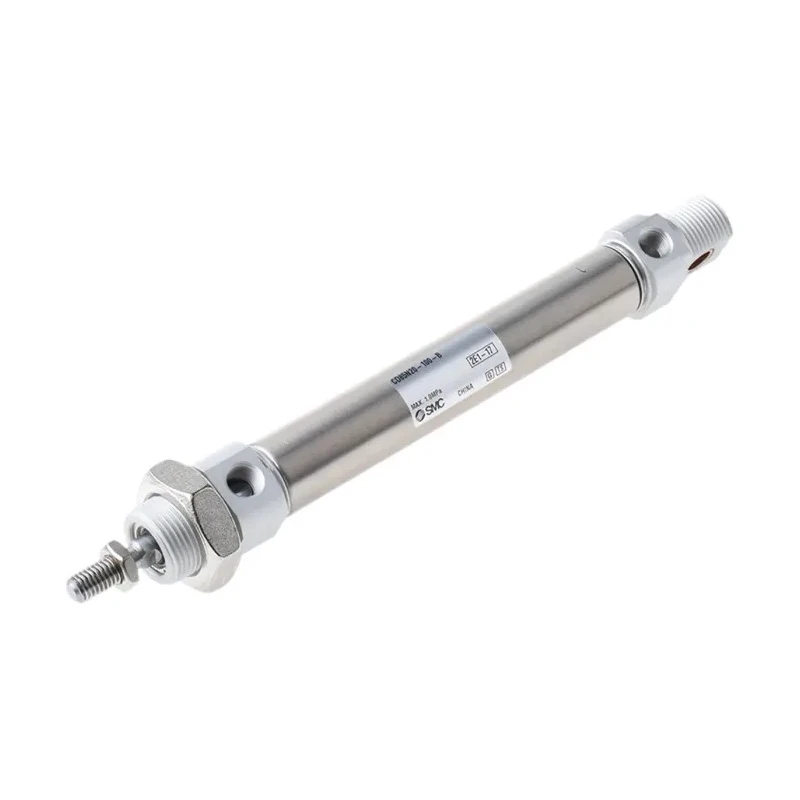

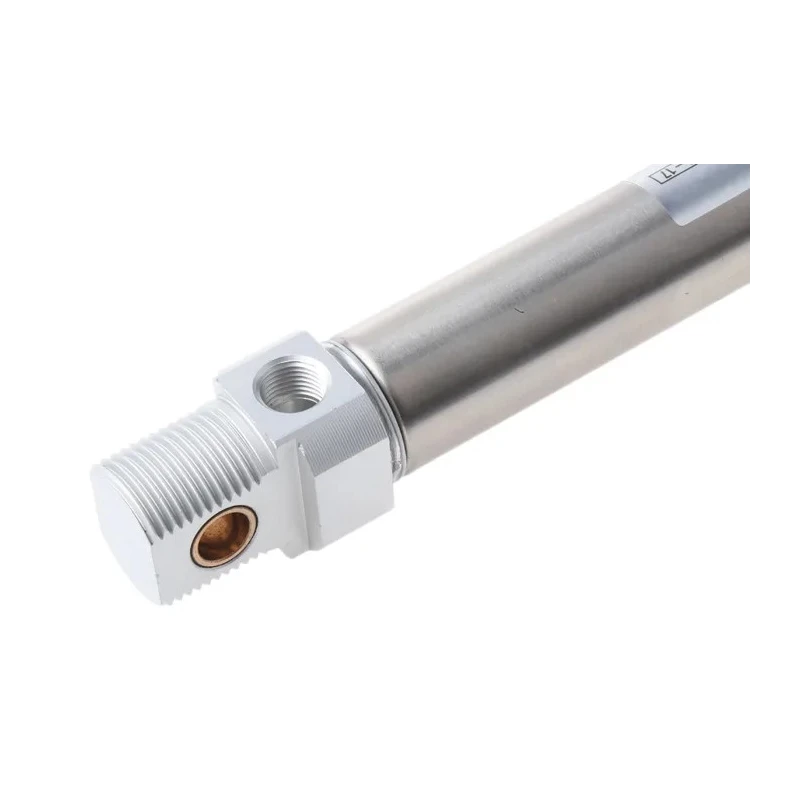

SMC 100 mm Pneumatic Piston Rod Cylinder Double Acting Clevis Mount Aluminium Alloy Body CD85
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 226mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 100mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M8 |
| RS PRO Pneumatic Cylinder - 20mm Bore, 100 mm Double Acting ActingRS Stock No. | 176-1637Brand: RS PRO |
Key Features
- Double acting operation providing controlled push and pull motion.
- Rubber bumper cushioning reduces noise and impact at stroke ends.
- Clevis mount allows easy pivot installation on linkages.

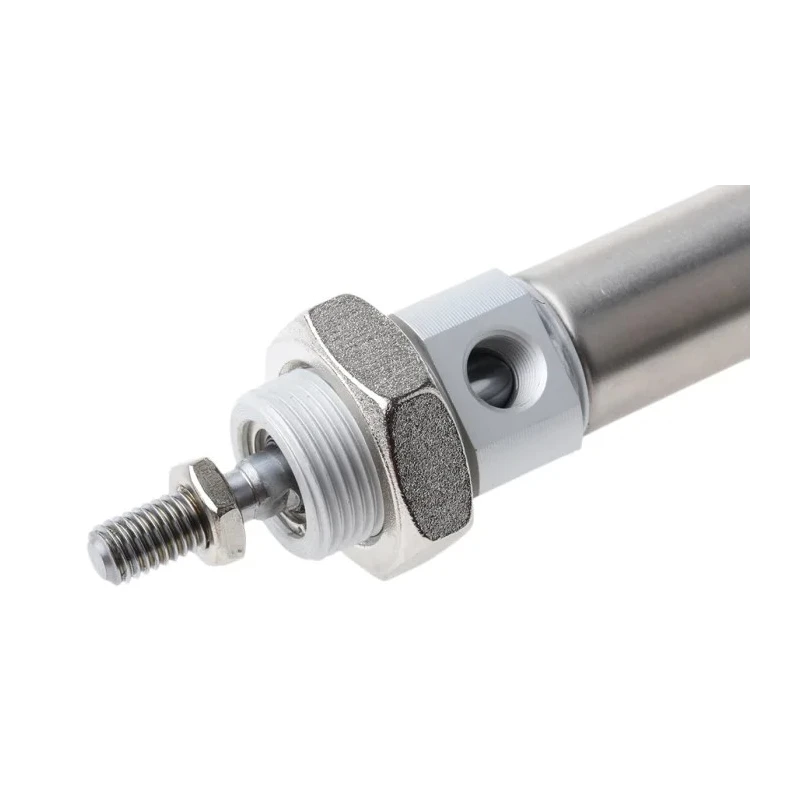

- Single male piston rod with M8 metric thread simplifies accessory attachment.
- Aluminium alloy body ensures durable and lightweight construction.
- Designed for maximum piston speeds up to 1500mm/s suitable for rapid cycling.
- Rated to operate continuously up to +60°C ambient temperature.
- Manufactured to ISO 6432 standards for compact cylinder compatibility.
Product Description
SMC CD85N20-100-B Pneumatic Piston Rod Cylinder is a double acting pneumatic actuator featuring a 100mm stroke length, aluminium alloy body, and clevis mount. The single male piston rod provides reliable linear motion by converting compressed air power into controlled push and pull action, suitable for medium-speed industrial automation tasks.
This cylinder is built with rubber bumper cushioning that effectively reduces end-of-stroke impact noise and vibration, enhancing the service life of your pneumatic systems. Designed to accommodate piston speeds up to 1500mm/s, it supports rapid cycling applications for efficient operations.
The clevis mounting ensures straightforward pivot installation to mechanical linkages, while the M8 male metric thread on the piston rod simplifies attaching accessories. Its compact body complies with ISO 6432 dimensional standards, making it compatible with a wide range of standard components and installations.
Engineered for continuous operation up to +60°C, this cylinder offers durability in typical industrial environments. The aluminium alloy construction results in a lightweight yet robust unit that withstands regular usage in manufacturing setups.
This pneumatic cylinder is ideal for industrial uses including pick-and-place tasks in assembly lines, valve and clamp actuations in control systems and test fixtures, small transfer devices in electronics manufacturing, and various packaging machinery operations.
Double acting operation providing controlled push and pull motion. Rubber bumper cushioning reduces noise and impact at stroke ends. Clevis mount allows easy pivot installation on linkages. Single male piston rod with M8 metric thread simplifies accessory attachment.
Aluminium alloy body ensures durable and lightweight construction. Designed for maximum piston speeds up to 1500mm/s suitable for rapid cycling. Rated to operate continuously up to +60°C ambient temperature. Manufactured to ISO 6432 standards for compact cylinder compatibility.
Ideal for pick-and-place mechanisms, valve actuation, clamp actuation, and small transfer devices. Explore a wide range of pneumatic cylinders and actuators on EnvMart for efficient industrial automation solutions.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 100 mm.
This unit is rated to operate continuously up to +60°C ambient temperature.
It features a clevis mount, allowing for easy pivot installation on linkages.
The body is made from aluminium alloy, ensuring a lightweight construction.
It is designed to accommodate maximum piston speeds up to 1500 mm/s, suitable for rapid cycling applications.
This cylinder operates as a double acting actuator, providing controlled push and pull motion.
The piston rod has a male metric thread size of M8, simplifying accessory attachment.
It features rubber bumper cushioning, which reduces noise and impact at stroke ends.
It is manufactured to ISO 6432 standards for compact cylinder compatibility.
The length of this model is 226 mm.
It is ideal for applications such as pick-and-place tasks, valve actuation, and small transfer devices in industrial automation.
The rod type is single, which facilitates reliable linear motion.
