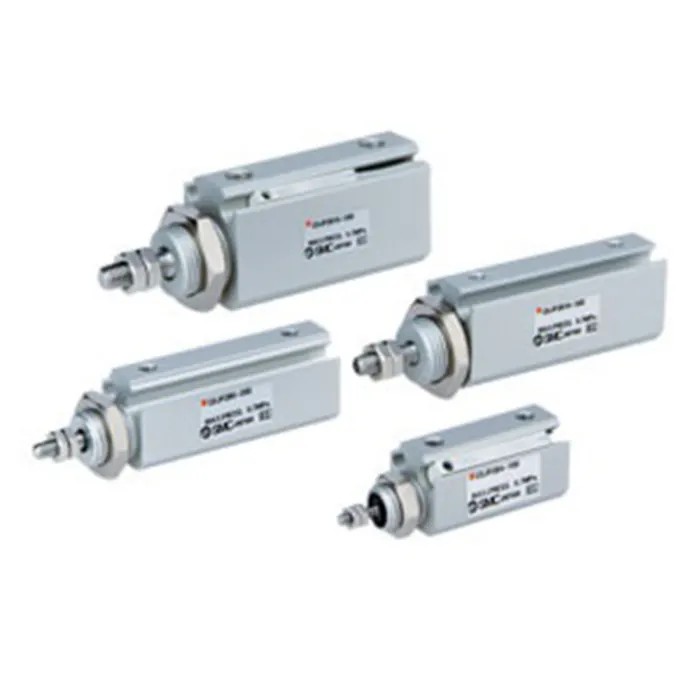

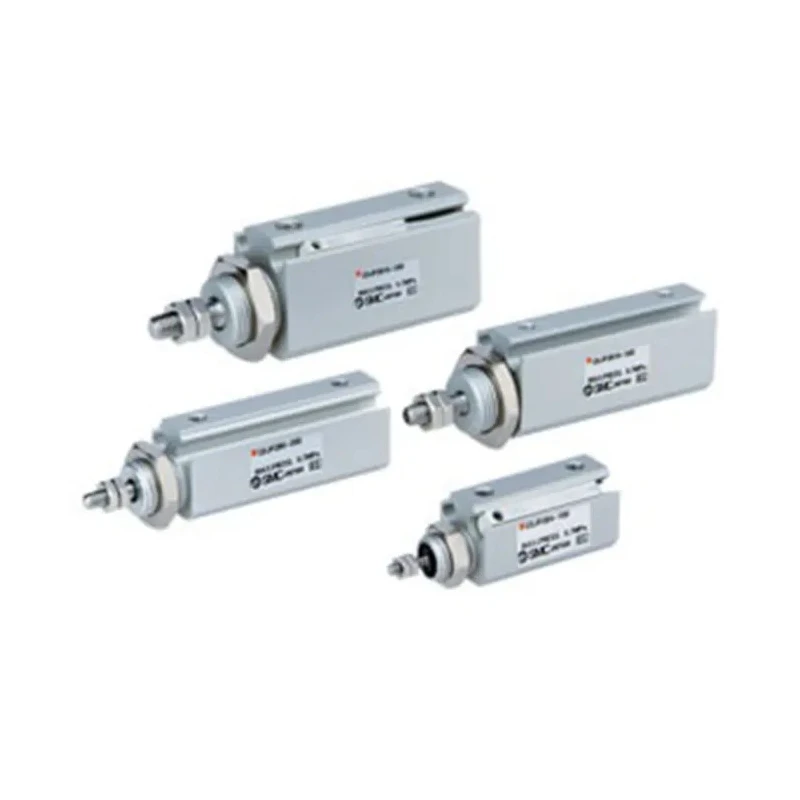

SMC 20 mm Double Acting Cylinder Panel Mount Aluminium Body Rubber Bumper CDJP2
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium |
| Length | 33mm |
| Model | CDJP2 |
| Mount Type | Panel |
| Series | CDJP2 |
| Maximum Operating Temperature | 60°C |
| Stroke Length | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Bore sizes (mm) | 6, 10 and 16 mm |
Key Features
- Double acting pneumatic cylinder suitable for precise motion control.
- 20 mm stroke length with a compact 33 mm length design.
- Maximum piston speed of up to 500 mm/s for efficient operation.
- Single rod type with male metric piston rod thread standard.
- Operates reliably at temperatures up to 60°C with rubber bumper cushioning.
- Non-rotating rod design ensures stability during actuation.
- Constructed from lightweight aluminium for durability and corrosion resistance.
- Manufactured in Japan ensuring high quality and standards.
Product Description
SMC CDJP2B6-20D-B is a 20 mm bore double acting cylinder designed for pneumatic applications requiring precise and reliable linear movement. This model belongs to the CDJP2 series, featuring a compact 33 mm body length and a 20 mm stroke length optimized for tight installation spaces.
The cylinder is panel mounted and incorporates a rubber bumper cushioning system that helps reduce mechanical shock and enhances durability during operation. It utilizes a single rod type with a male piston rod thread complying with metric standards, facilitating straightforward integration with pneumatic systems.
With a maximum piston speed of 500 mm per second and an operating temperature rating up to 60 degrees Celsius, this actuator supports high-speed operations under moderate thermal conditions. The aluminium body construction ensures a lightweight yet robust profile suitable for varied industrial environments.
Manufactured in Japan, the CDJP2B6-20D-B model is designed to provide consistent performance and reliability with minimal maintenance. Typical applications include industrial automation, pneumatic tools, manufacturing processes, and fluid power systems requiring linear actuation with enhanced cushioning and mounting versatility.
Double acting pneumatic cylinder for precise linear motion. 20 mm stroke and 33 mm length for compact mounting. Rubber bumper cushioning reduces noise and wear. Panel mount type for direct installation on equipment. Aluminium body provides corrosion resistance and lightweight.
Single rod with male metric thread for easy attachment. Operates reliably within 60°C maximum temperature. Maximum piston speed of 500 mm/s for efficient actuation. Manufactured in Japan ensuring quality standards.
This SMC pneumatic piston rod cylinder is ideal for industrial applications including automation, packaging, and fluid control systems. Explore more SMC pneumatic cylinders and actuators in EnvMart’s Pneumatics & Hydraulics category for solutions tailored to your industry needs.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this cylinder is 20 mm, allowing for precise linear motion in compact spaces.
This model operates reliably at a maximum temperature of 60°C, making it suitable for moderate thermal conditions.
The body of this cylinder is constructed from lightweight aluminium, providing corrosion resistance and durability.
The maximum piston speed of this cylinder is up to 500 mm/s, enabling efficient operation in various applications.
This cylinder features a panel mount design, allowing for direct installation on equipment.
It incorporates a rubber bumper cushioning system, which helps reduce mechanical shock and enhances durability during operation.
This model utilizes a single rod type with a male metric piston rod thread, facilitating easy integration with pneumatic systems.
This cylinder is part of the CDJP2 series, designed for pneumatic applications requiring reliable linear movement.
The available bore sizes for this model are 6 mm, 10 mm, and 16 mm, accommodating various application needs.
Typical applications include industrial automation, pneumatic tools, manufacturing processes, and fluid power systems requiring linear actuation.
This model is manufactured in Japan, ensuring adherence to high quality and performance standards.
The non-rotating rod design ensures stability during actuation, enhancing the precision of linear movement.
