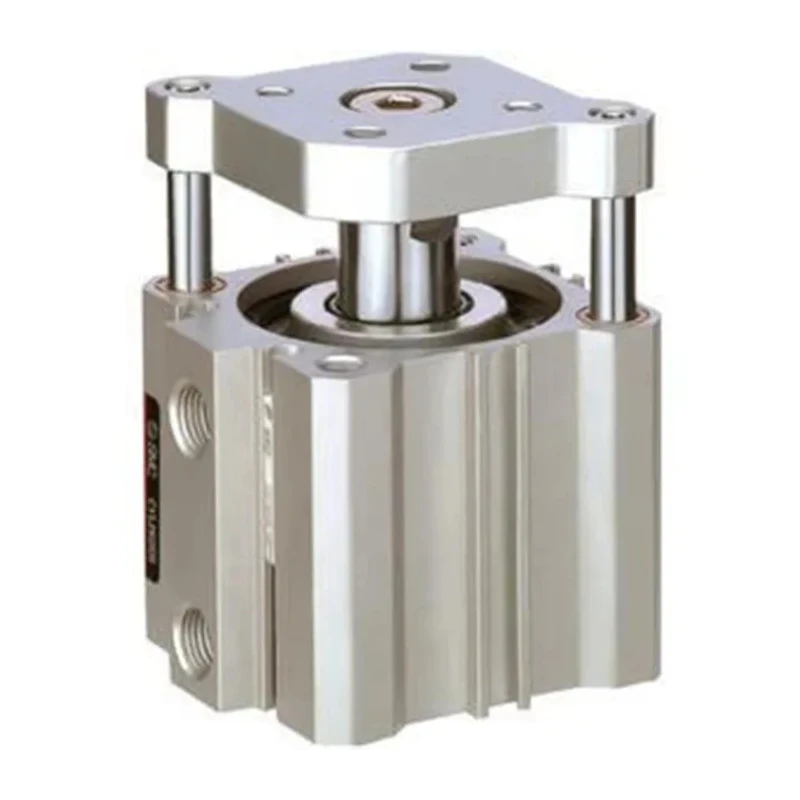

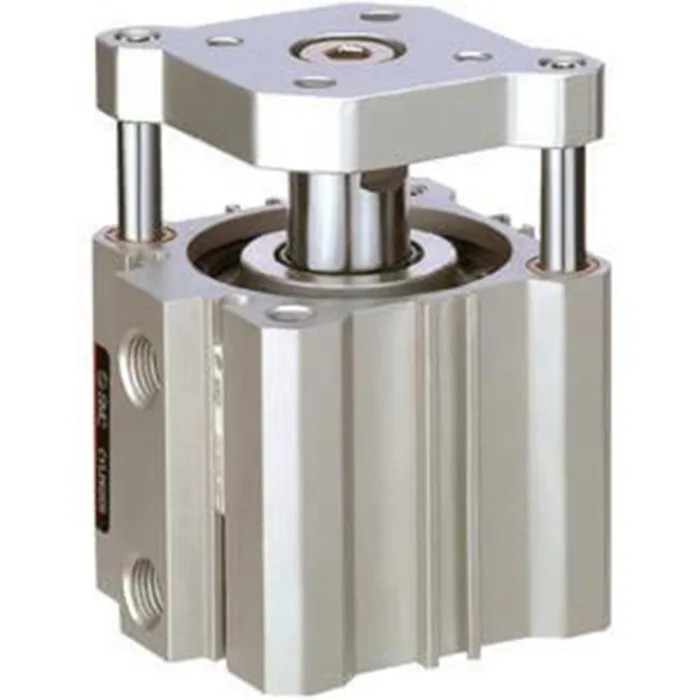

SMC Pneumatic Compact Cylinder Double Acting 32mm Bore 60mm Stroke Aluminium Alloy Body CDQMB32-60

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder Double Acting 32mm Bore 60mm Stroke Aluminium Alloy Body CDQMB32-60



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Length	108mm
Model	CDQMB32-60
Mount Type	Through Hole
Series	CDQM
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	60mm
Bore Diameter	32mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M10 x 1.25

Key Features

Constructed with aluminium alloy body for durability and lightweight.
Features through hole mount type for secure installation.
Equipped with rubber bumper cushioning for smooth operation.
Designed with single rod type and metric piston rod thread size M10 x 1.25.
Operates efficiently at pressures up to 1 Mpa with piston speed up to 500mm/s.
Suitable for environments from -10°C to maximum 60°C operating temperature.
Includes guide rod type compact cylinder for enhanced lateral load resistance.
Non-rotating accuracy of 0.2 or less for precise positioning.

Product Description

SMC CDQMB32-60 Pneumatic Compact Cylinder is a highly reliable double acting cylinder designed with a 32mm bore diameter and 60mm stroke length, suitable for various industrial pneumatic applications.

The aluminium alloy body ensures excellent strength while maintaining a lightweight design. This model features a through hole mount type and rubber bumper cushioning to provide smooth and safe operation in demanding environments.

Its single rod type design incorporates a metric piston rod thread size of M10 x 1.25 and can operate under maximum pressures of 1 Mpa and piston speeds reaching 500mm/s, offering robust performance and responsiveness.

Engineered for operating temperatures ranging from -10°C to +60°C, this compact cylinder maintains precise control with a non-rotating accuracy of 0.2 or less. The guide rod type construction advances lateral load resistance by 4 times compared to similar models, enhancing durability in heavy load situations.

Constructed with aluminium alloy body for durability and lightweight. Features through hole mount type for secure installation. Equipped with rubber bumper cushioning for smooth operation. Single rod type with metric piston rod thread size M10 x 1.25.

Supports maximum operating pressure of 1 Mpa and piston speed up to 500mm/s. Operating temperature range from -10°C to 60°C. Guide rod type for enhanced lateral load resistance. Non-rotating accuracy of 0.2 or less for precise positioning.

Manufactured in Japan ensuring high quality and reliability.

This pneumatic compact cylinder is widely used across industrial, manufacturing, automation, and fluid power systems, offering precise motion control and reliability for actuating tasks.
