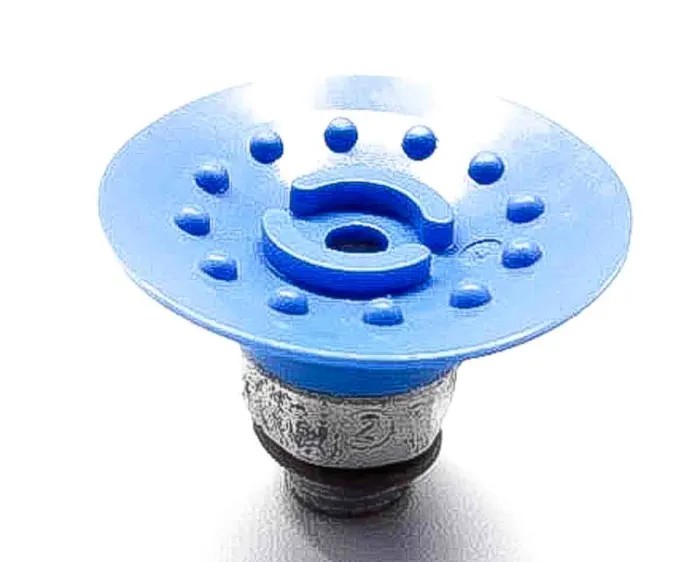

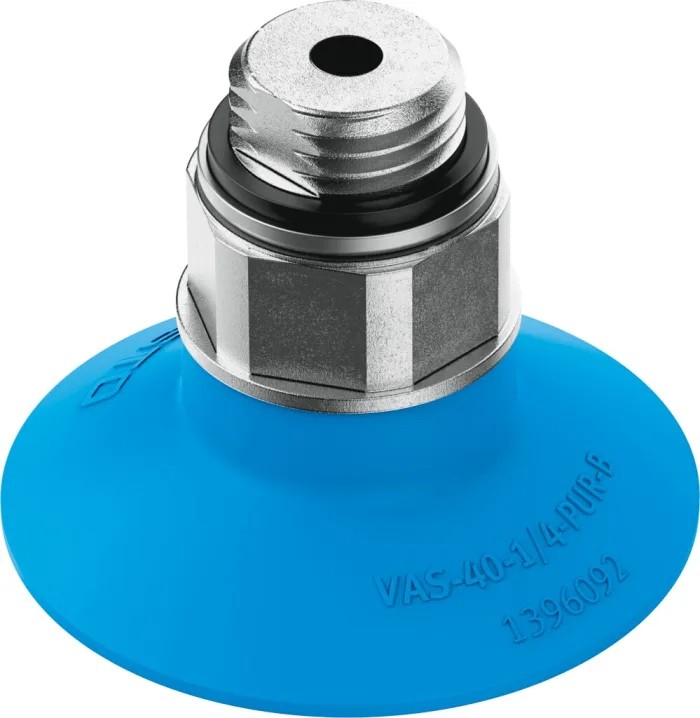

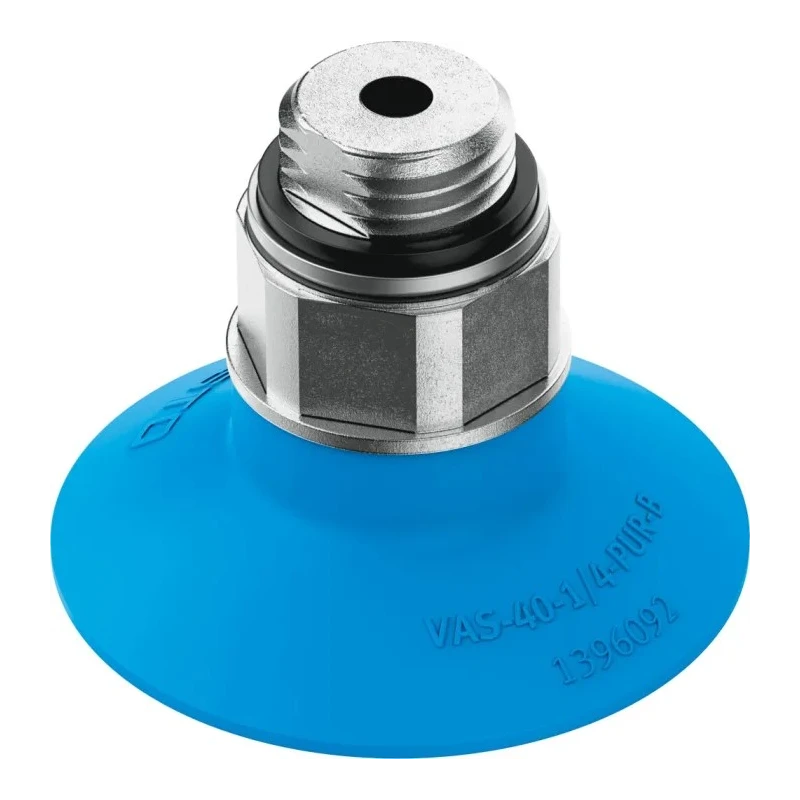

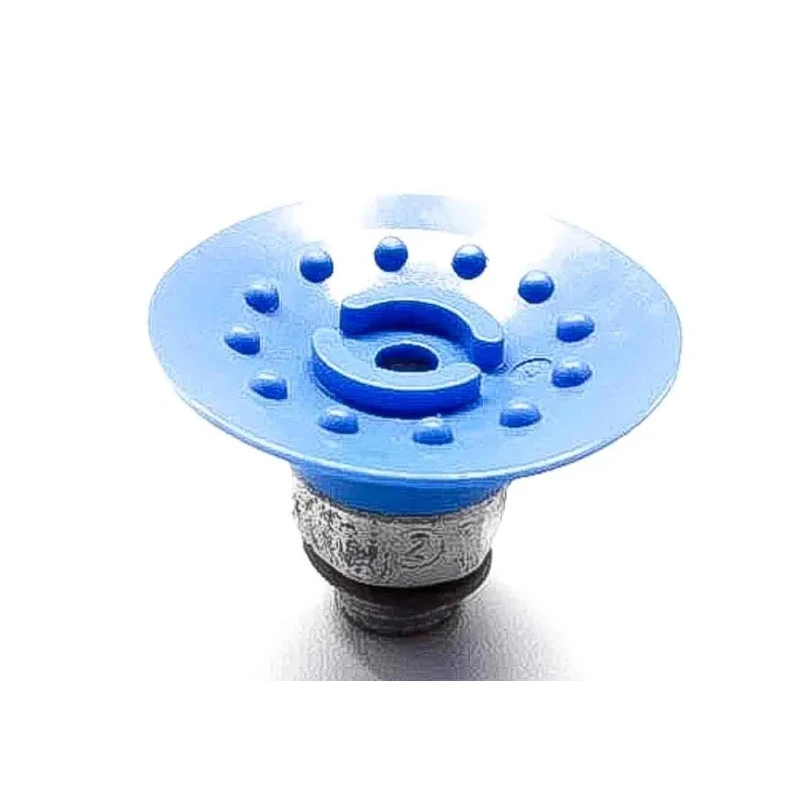

Festo 40 mm Polyurethane Suction Cup VAS-40-1/4-PUR-B G 1/4
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Festo |
| Model | VAS-40-1/4-PUR-B |
| Connection Type | Vacuum Port |
| Series | VAS |
| Connection Size | G 1/4 |
| Pad Material | Polyurethane |
| Pad Diameter | 40mm |
| Standards/Approvals | RoHS |
| Holding Force | 60N |
| Vacuum Entry Direction | On Top |
| It is intended for atmospheric Air compliant with ISO 8573‑1 | 2010 particulate/quality classes as the operating medium |
| Festo 40 mm Flat Polyurethane Suction Cup ESS-40-SU M6Brand | Festo |
Key Features
- Offers a holding force of 60 N for secure gripping of moderate loads.
- Pad material is polyurethane providing moderate corrosion resistance and durability.
- Vacuum connection via G 1/4 port located on top for simplified vertical pick-up.
- Operates in ambient temperatures from -20 to 60 °C.
- Effective suction diameter is 34.4 mm with a nominal suction volume of 3.47 cm3.
- Lightweight at 26 g and orientable in any position with a 3 mm compensator for slight misalignment.
- Ideal for automated handling of electronic assemblies and light mechanical components.
- Not supplied with sealing ring; mounting requires separate sourcing of sealing components.
Product Description
Festo VAS-40-1/4-PUR-B is a 40 mm diameter polyurethane suction cup from the VAS series, engineered for vacuum handling applications in industrial environments. It features a G 1/4 vacuum port on the top face to facilitate vertical vacuum entry, compatible with atmospheric air as per ISO 8573-1:2010 particulate standards.
The suction cup delivers a robust holding force of 60 N, enabled by a polyurethane pad material offering balanced flexibility, durability, and moderate corrosion resistance. It is suitable for operating temperatures ranging from -20 to 60 °C, making it versatile for various factory floor conditions.
This product weighs 26 grams and includes a 3 mm height compensator that allows for assembly flexibility to accommodate slight misalignments during installation. Its effective suction diameter of 34.4 mm and nominal suction volume of 3.47 cm3 determine the contact area and internal air capacity respectively.
This suction cup is ideal for automated pick-and-place systems, especially for gentle handling of electronic assemblies and light mechanical parts on production lines. The top-positioned vacuum entry optimizes vertical gripping positions and makes it suitable for use with robotic grippers and short-stroke conveyor pick-up and placement tasks.
The component is mounted via a threaded G 1/4 vacuum port interface with a zinc die-cast threaded plug. Note that the sealing ring is not included and must be sourced separately. Holding force of 60 N supports secure handling of moderate loads.
Polyurethane pad resists moderate corrosive atmospheres classified as CRC2. Supports operating pressure range from -0.95 to 0 bar, close to full vacuum conditions. Suitable for applications requiring gentle contact such as vacuum transfer of sensitive items.
Versatile mounting orientation and compensator height allow for precise assembly. Designed for industrial, laboratory, manufacturing, and automated material handling use cases. Explore other Pneumatic Suction Cup offerings and vacuum components on EnvMart to suit your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Festo VAS-40-1/4-PUR-B suction cup offers a holding force of 60 N, making it suitable for secure gripping of moderate loads.
The effective suction diameter of this suction cup is 34.4 mm, which determines the contact area for gripping.
The nominal suction volume of the Festo VAS-40-1/4-PUR-B is 3.47 cm³, indicating its internal air capacity.
This model features a G 1/4 vacuum port located on the top, facilitating vertical vacuum entry.
It operates effectively in ambient temperatures ranging from -20 to 60 °C, making it versatile for various environments.
The pad material of this suction cup is polyurethane, which offers moderate corrosion resistance and durability.
This suction cup has a diameter of 40 mm and weighs 26 grams, making it lightweight and easy to handle.
No, the sealing ring is not included and must be sourced separately for mounting purposes.
It is ideal for automated handling of electronic assemblies and light mechanical components in industrial environments.
The Festo VAS-40-1/4-PUR-B suction cup is manufactured in the Czech Republic.
This model complies with RoHS standards and is intended for use with atmospheric air as per ISO 8573-1:2010 particulate standards.
The 3 mm height compensator allows for slight misalignment during installation, providing flexibility in assembly.
