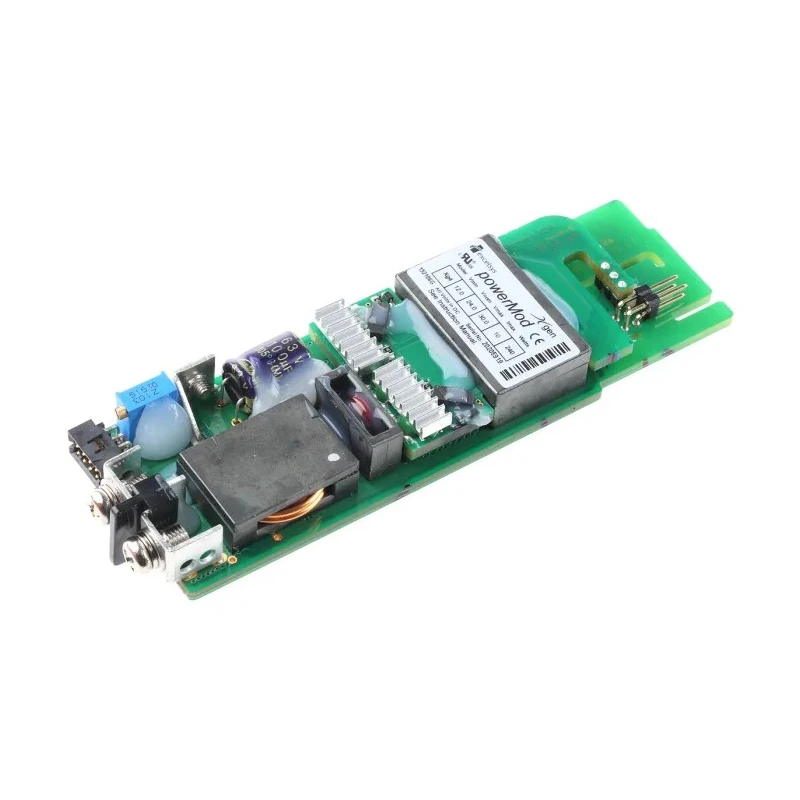

Excelsys / Advanced Energy XG3 Switching Power Supply 15V DC 240W 380V DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Excelsys / Advanced Energy |
| Power | 240W |
| Efficiency | 90% |
| Length | 269.75mm |
| Model | XG3 |
| Depth | 40.4mm |
| Gross Weight | 100g |
| Width | 127mm |
| Mount Type | Chassis |
| Series | Xgen |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 380V dc |
| Standards/Approvals | CE, cURus, RoHS |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 20A |
| Minimum Input Voltage | 120, 85V dc |
Key Features
- Single output power supply with 15 V DC maximum output voltage.
- Power rating of 240 watts for reliable and continuous use.
- Universal input voltage range from 85 VAC to 264 VAC and 120 VDC to 380 VDC.
- Operating temperature range from -20°C up to 70°C with thermal derating above 50°C.
- High efficiency up to 90% reduces heat generation.
- Features include over voltage, over current, thermal protection and logic inhibit/enable.
- Compact chassis mount form factor with dimensions 269.75 mm length, 127 mm width, and 40.4 mm depth.
- Compliant with standards CE, cURus, and RoHS for safety and environmental protection.
Product Description
Excelsys / Advanced Energy XG3 Switching Power Supply is a chassis-mounted AC to DC embedded switch mode power supply providing a single 15 V DC output at a power capacity of 240 W. The power supply features an output current of 20 A and is designed with a universal input voltage range, accepting from 85 VAC to 264 VAC and 120 VDC to 380 VDC, enabling flexible integration into various systems.
The XG3 series power supply delivers up to 90% efficiency in a compact 1U high form factor, measuring 269.75 mm in length, 127 mm in width, and 40.4 mm in depth, with a lightweight build of approximately 100g. It includes several protective features such as thermal protection, over voltage and over current protection, logic inhibit/enable, and power fail signals ensuring system reliability and safety during operation.
This power supply is ideally suited for demanding industrial machinery, automation equipment, telecommunications systems, medical and laboratory diagnostic devices, and audio/video broadcast applications. The product complies with key industry safety and environmental standards including CE, cURus, and RoHS.
The device’s operating temperature range is from -20°C to 70°C, with a 2.5% power derating per degree Celsius above 50°C, making it suitable for harsh operating environments. The modular PSU chassis is supplied with blanking plates to complete the installation.
Single output power supply with 15 V DC maximum output voltage. Power rating of 240 W suitable for embedded applications. Universal wide input voltage range for AC and DC sources. Operation from -20°C to 70°C with thermal derating.
High efficiency of up to 90% reducing energy loss. Over voltage, over current protection, and thermal safety features. Compact form factor for chassis mounting. Compliance with CE, cURus, and RoHS standards. Applications include industrial, telecommunications, medical, and broadcast equipment.
LED indicators for power and fault status monitoring. Explore more switching power supplies and power distribution solutions at EnvMart, your trusted industrial electronics partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this power supply is 15V DC.
This model has a power rating of 240 watts.
The operating temperature range is from -20°C to 70°C, with thermal derating above 50°C.
The dimensions are 269.75 mm in length, 127 mm in width, and 40.4 mm in depth.
It includes over voltage protection, over current protection, thermal protection, and logic inhibit/enable features.
The efficiency rating is up to 90%, which helps reduce heat generation.
It has a gross weight of approximately 100 grams.
It complies with CE, cURus, and RoHS standards for safety and environmental protection.
The output current is 20 A.
This model is designed for chassis mounting.
