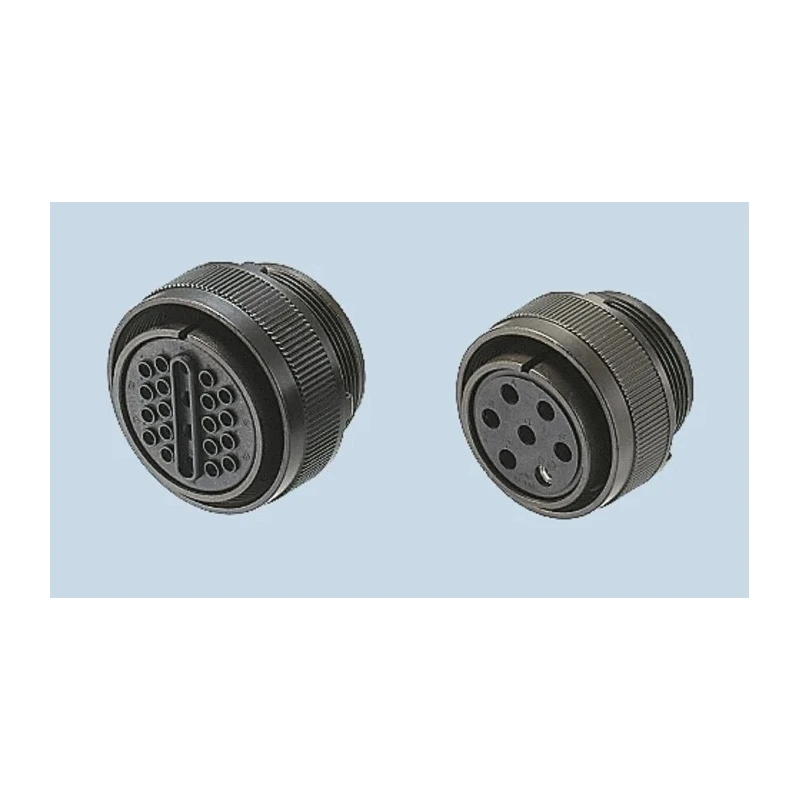

JAE Industrial Circular Connector, 22 Contacts, Cable Mount, 39.3 mm Size, Socket Female, IP67 Rated, Aluminium Alloy JL04V
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | JAE |
| Orientation | Straight |
| Current | 23A |
| Model | JL04V |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper |
| Series | JL04V |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 22 |
| Contact Plating | Silver |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Shell Size | 28 |
| Mating Type | Threaded |
| Connector Size | 39.3 mm |
| Plug/Socket | Socket |
Key Features
- Designed for cable mounting with threaded mating for secure connection.
- Features 22 female socket contacts plated with silver for optimal conductivity.
- Constructed with durable aluminium alloy housing for robust industrial use.
- Operates reliably from -55°C up to 125°C in harsh environments.
- Ensures IP67 waterproof and dustproof protection for industrial applications.
- Compatible with industrial and electronic power connector systems requiring reliable connections.
- Manufactured in Japan according to JAE's high-quality standards.
Product Description
JAE JL04V-6A28-11SE-R Industrial Circular Connector is a precision-engineered socket connector designed for demanding industrial and electronic component applications. This cable-mount connector features 22 female contacts arranged in a 39.3 mm shell size housing made from sturdy aluminium alloy to ensure mechanical strength and longevity.
With a rated voltage of 250 V and current capacity of 23 A, it is well suited for power transmission and control signals in industrial environments. The contacts are plated with silver and made of copper to ensure excellent electrical conductivity and corrosion resistance. Threaded mating ensures secure and vibration-resistant connections, making it ideal for harsh conditions.
This connector is designed for operation in temperatures ranging from -55°C to 125°C, maintaining performance across wide temperature extremes. Additionally, it carries an IP67 ingress protection rating, making it waterproof and dust-tight, suitable for outdoor and factory floor installations.
Its pole format of 22 contacts and fully straight orientation simplifies wiring and integration. Assembly involves solder termination ensuring reliable and lasting electrical connections. The aluminium housing offers lightweight durability and resistance to environmental conditions.
Applications include industrial automation, electronic power distribution, manufacturing machinery, HVAC systems, water treatment controls, and commercial electrical equipment. This model is part of the JL04V series, known for quality and reliability in industrial circular connectors.
Designed for cable mounting with threaded mating for secure connection. Features 22 female socket contacts plated with silver for optimal conductivity. Constructed with durable aluminium alloy housing for robust industrial use.
Operates reliably from -55°C up to 125°C in harsh environments. Rated voltage of 250 volts and current carrying capacity of 23 amps. Ensures IP67 waterproof and dustproof protection for industrial applications. Compatible with industrial and electronic power connector systems requiring reliable connections.
Manufactured in Japan according to JAE's high-quality standards. Explore more Industrial Circular Connectors and JAE connector series on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current capacity of 23 A, making it suitable for power transmission in industrial applications.
The connector is rated for a voltage of 250 V, allowing it to handle various electrical applications effectively.
It carries an IP67 rating, indicating that it is waterproof and dust-tight, suitable for harsh environments.
The housing is made from aluminium alloy, and the contacts are copper plated with silver for optimal conductivity and corrosion resistance.
It operates reliably in temperatures ranging from -55°C to 125°C, making it suitable for extreme conditions.
This connector features 22 female socket contacts, arranged in a straight orientation for easy wiring.
It uses solder termination, ensuring reliable and lasting electrical connections.
The shell size of this model is 39.3 mm, which is designed for cable mounting applications.
It features threaded mating, which provides secure and vibration-resistant connections.
This connector is manufactured in Japan, adhering to high-quality standards.
It is suitable for applications in industrial automation, electronic power distribution, manufacturing machinery, and HVAC systems.
The contact gender of this model is female, designed for use in various connector systems.
