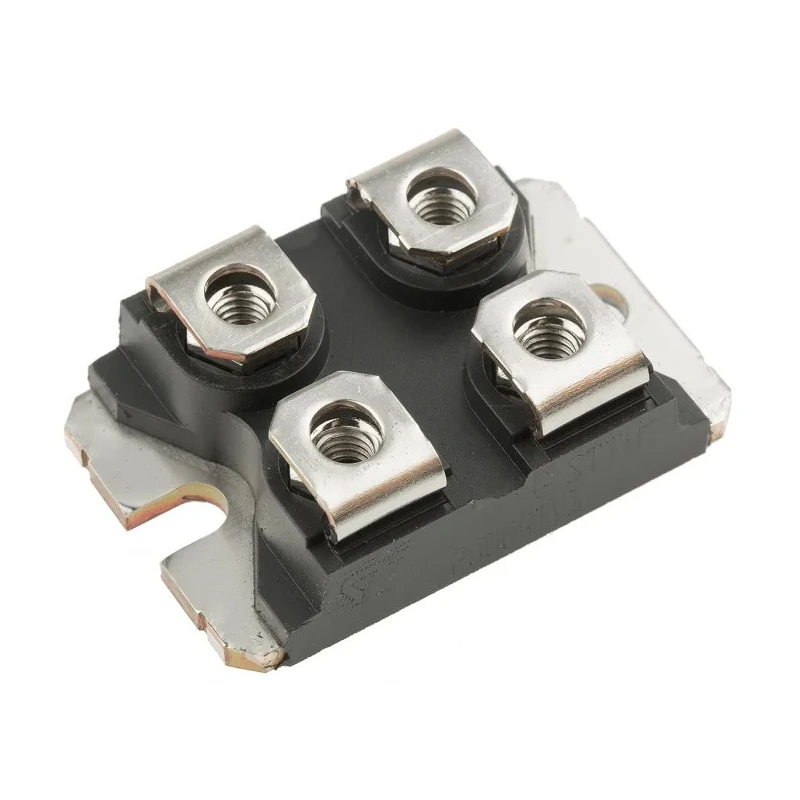

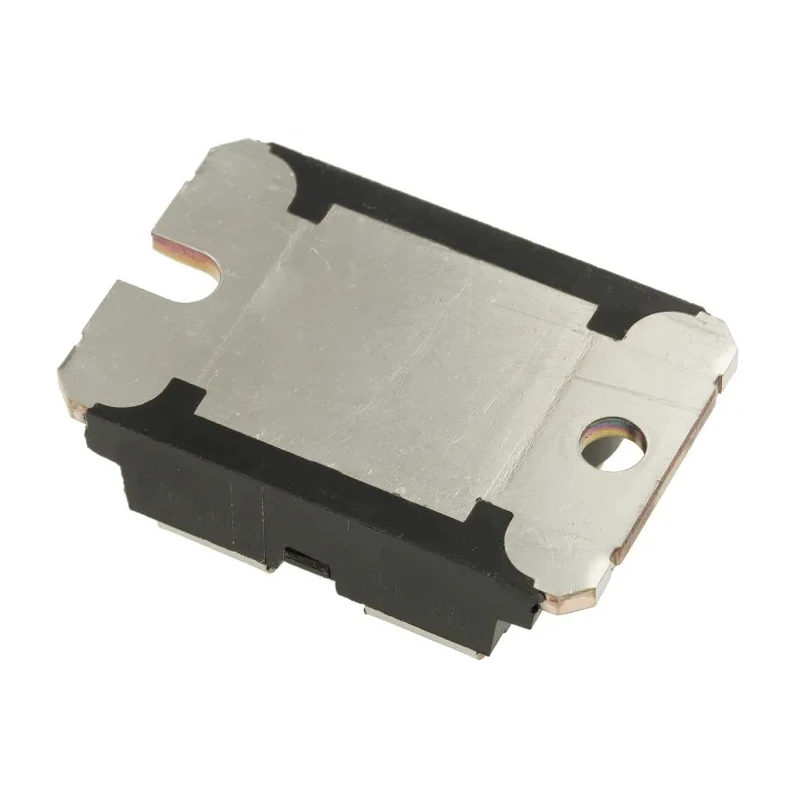

STMicroelectronics 400 V 240 A Switching Diode Panel Mount 4-Pin ISOTOP STTH20004TV1

STMicroelectronics STTH20004TV1 is a high-performance switching diode designed for demanding power and electronic applications requiring reliable switching with high current capacity. Featuring a maximum continuous forward current of 240 amperes and a peak reverse repetitive voltage of 400 volts, this diode ensures robust operation under high electrical loads.

Housed in a 4-pin ISOTOP package, the diode offers an isolated diode configuration optimized for panel mounting in industrial semiconductor assemblies. The device's maximum forward voltage of 1.2 volts ensures efficient power conduction while minimizing power dissipation.

Its fast peak reverse recovery time of 100 nanoseconds significantly reduces switching losses, making it suitable for use in high-frequency switching power supplies and converters. The diode operates reliably over a wide temperature range from -55°C to 150°C, making it ideal for applications exposed to harsh thermal environments.

Package dimensions include a length of 38.2 mm, width of 25.5 mm, height of 9.1 mm, and pin diameter of 4 mm, enabling convenient panel mount installation. This device complies with RoHS directives, affirming its adherence to environmentally friendly manufacturing processes. It is not rated for automotive standard applications.

Typical use cases include power rectification in industrial equipment, power electronic devices, and other semiconductor circuits requiring high current Switching Diodes. This STMicroelectronics diode is suited for applications in industrial automation, power supplies, and electronic manufacturing sectors.

Panel mount diode suitable for power electronics applications. Maximum continuous forward current of 240 amperes ensures high load handling. Peak reverse voltage rating of 400 volts provides robust blocking capability. Low forward voltage drop of 1.2 volts improves efficiency.

Fast peak reverse recovery time of 100 nanoseconds minimizes switching losses. Operating temperature range from -55°C to 150°C allows for demanding environments. Package dimensions: length 38.2 mm, width 25.5 mm, height 9.1 mm, diameter 4 mm pins.

Pin count of 4 convenient ISOTOP mounting pins. RoHS compliant ensuring environmental safety. Not compliant with automotive standards. Explore our extensive catalog of semiconductor components and power devices for industrial and commercial electronics at EnvMart.
