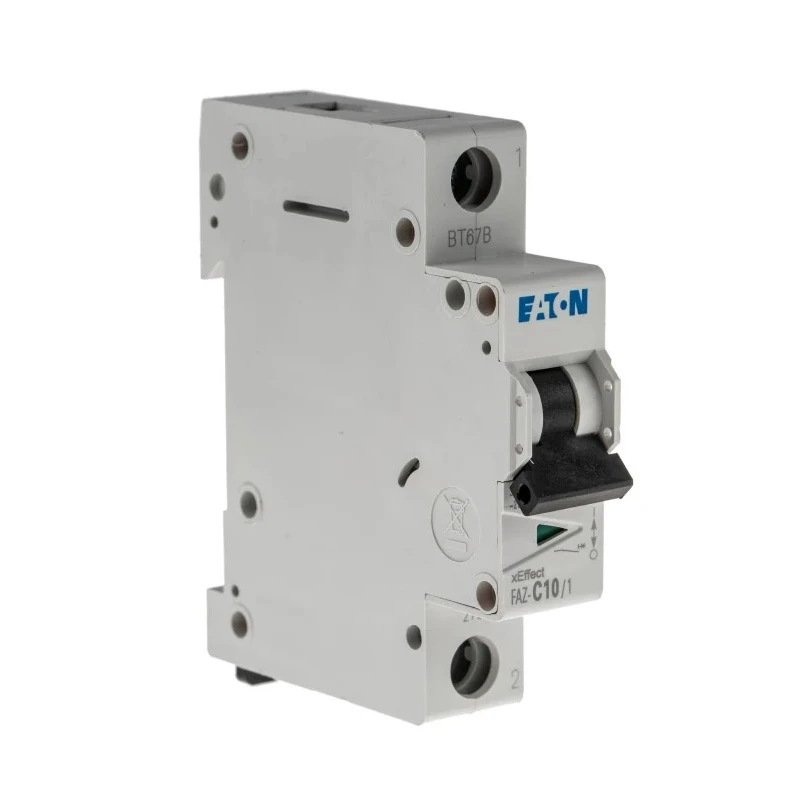

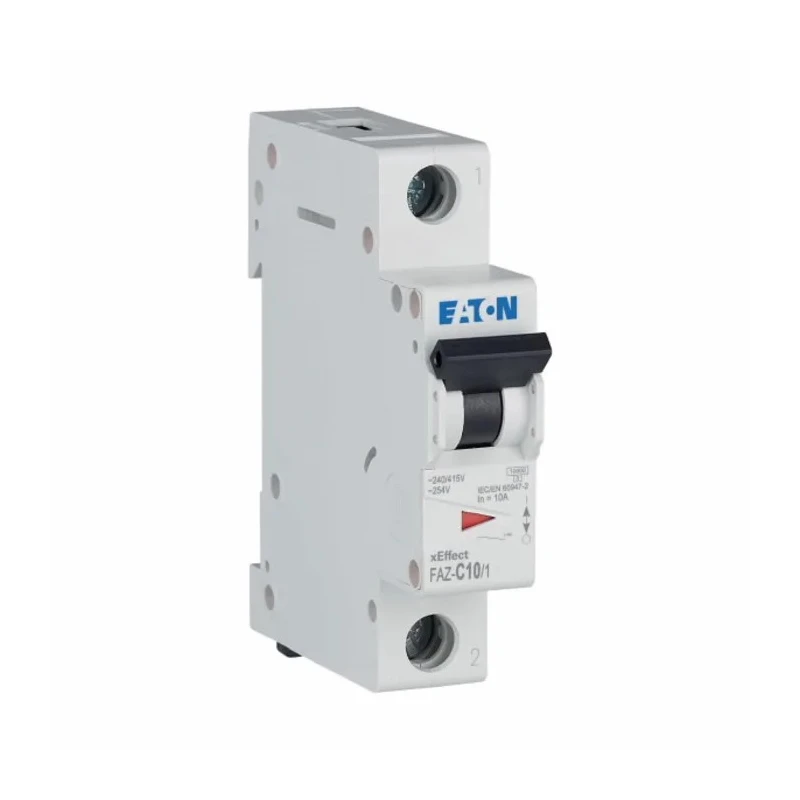

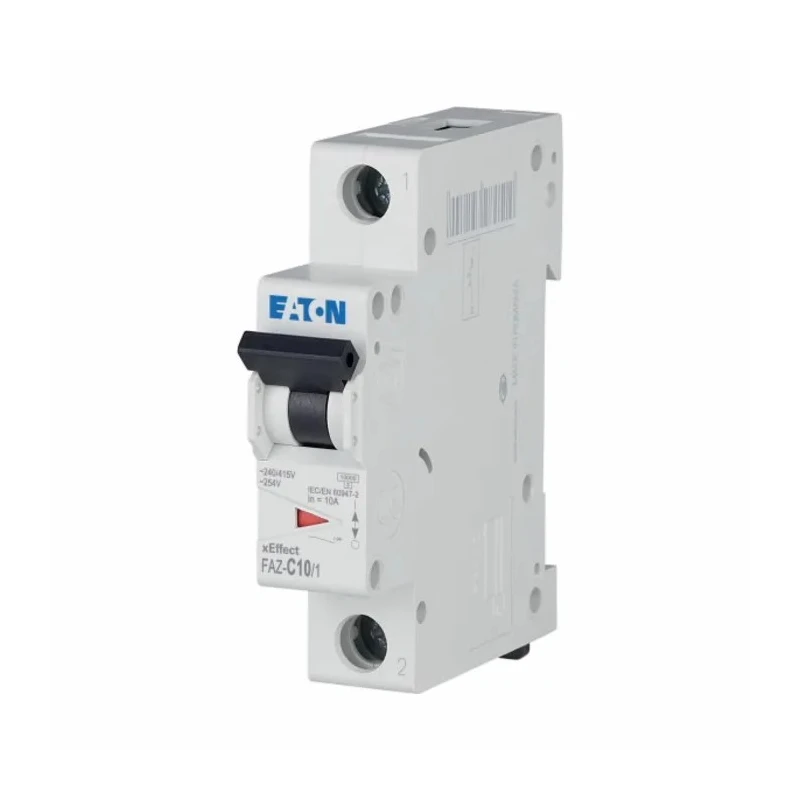

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 10A, Type C, 230V AC, 60V DC, 10kA Breaking Capacity 278557 FAZ-C10/1

Eaton 278557 FAZ-C10/1 Miniature Circuit Breaker is a single-pole device rated at 10A with Type C tripping characteristics, designed for efficient protection of electrical circuits in industrial and commercial environments operating at 230V AC and 60V DC.

This thermal-magnetic MCB provides overcurrent protection by combining thermal and electromagnetic trip mechanisms, ensuring quick disconnection under fault conditions and long operational life exceeding 10,000 cycles.

The compact design measures 80mm in length, 17.5mm in width, and 71mm in depth, allowing for high-density packing on standard DIN rails. The device features a finger-proof IP20 enclosure for enhanced user safety and a toggle switch for manual resetting of the breaker.

With a breaking capacity of 10kA and a switching capacity of 15kA, it can safely interrupt high fault currents without damage. The Type C tripping curve allows breaking current at 5 to 10 times the rated value, making it suitable for commercial and industrial applications including lighting circuits and small motor loads.

The MCB operates reliably over a wide temperature range from -25°C to +75°C, allowing use in diverse ambient conditions. The twin-purpose terminal facilitates easy wiring and installation.

Typical applications include industrial automation, manufacturing electrical panels, commercial building power distribution, and protection of low power circuits. Eaton’s xEffect series MCBs are known for robust construction and compliance with IEC 898 and BS/EN standards.

Features a thermal-magnetic tripping mechanism for circuit protection. Compact footprint optimizes panel space utilization. Supports rated voltages of 230V AC and 60V DC. High breaking capacity of 10kA ensures safe fault current interruption.

IP20 finger-safe enclosure enhances operator safety. Operating temperature range from -25°C to +75°C for varied environments. Toggle switch actuator allows easy resetting after tripping event. Suitable for industrial and commercial electrical circuit protection.

Complies with IEC 898 and BS/EN standards.

For efficient protection of electrical systems with reliable performance, Eaton xEffect 278557 FAZ-C10/1 Miniature Circuit Breaker is an excellent choice. Explore more products in Miniature Circuit Breakers category on EnvMart for comprehensive electrical protection solutions.
