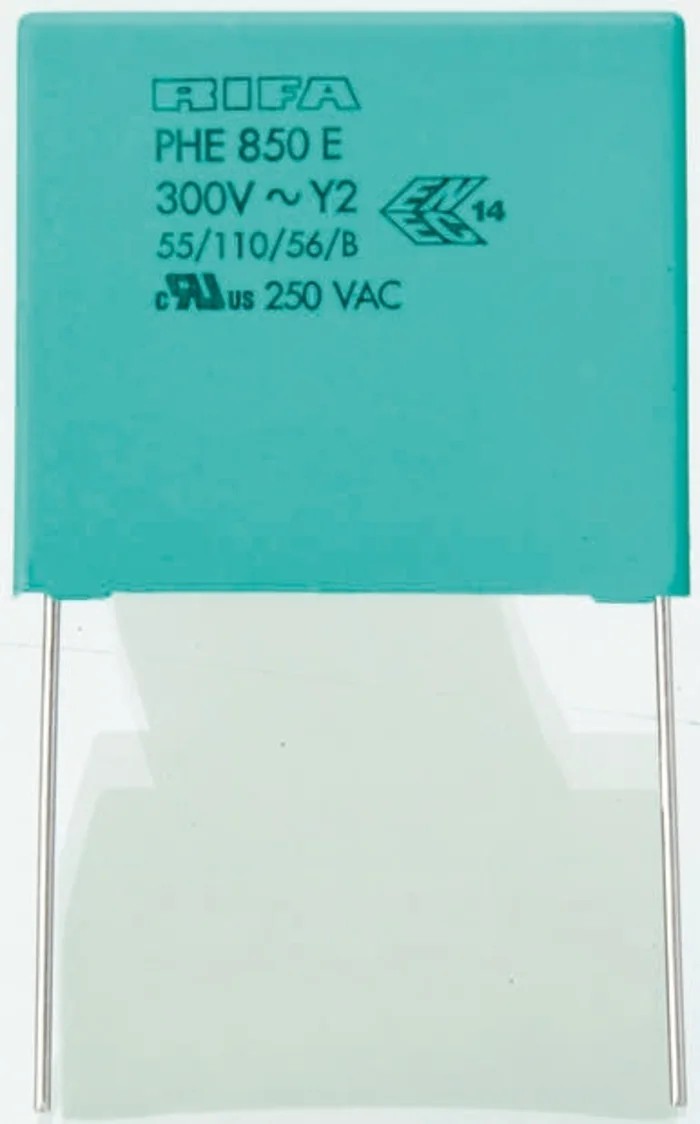

KEMET PHE850 Film Capacitor Y2 ±20% 470 nF 1.25 kV DC 300 V AC Through Hole Radial Terminal PHE850

KEMET PHE850 Film Capacitor Y2 model PHE850 is a high-quality metallised polypropylene film capacitor engineered for EMI suppression in line-to-earth applications, commonly used in industrial, electronic, and power systems. It offers a nominal capacitance of 470 nF with a tolerance of ±20%, supporting a rated DC voltage of 1.25 kV and rated AC voltage of 300 V. This makes it suitable for reliable use in filtering and interference reduction circuits where safety and performance are critical.

The capacitor features a Through Hole mount type with radial leads, facilitating robust PCB attachment. It has a lead pitch of 27.5 mm, lead length of 6 mm, and pin count of 2, with lead diameters of 0.8 mm. Its compact footprint measures 31.5 mm in length, 17.5 mm in width, and 28 mm in height, suitable for restricted spaces.

Encased in UL 94V-0 self-extinguishing material, it meets essential safety standards and ensures durability under electrical stress. The capacitor is compliant with RoHS directives, reflecting environmentally safe materials and manufacturing processes. Its operating temperature range from -55°C to 110°C covers typical industrial environments.

The PHE850 capacitor is ideally applied in EMI suppression circuits on mains power lines (Y2 suppression class), reducing the potential for electric shock and ensuring electromagnetic compatibility in electronic and power distribution equipment.

Constructed with high-quality metallised polypropylene film for stable capacitance and reliability. Self-extinguishing encapsulation material ensures enhanced safety compliance. Through Hole mounting with radial terminal design for firm PCB connections.

Wide operating temperature range allows use in diverse environmental conditions. Low dissipation factor reduces energy losses and improves performance. Offers EMI suppression suitable for line-to-earth Y2 applications in industrial electronics.

Fully RoHS compliant supporting environmentally conscious design. Compact dimensions enable space-saving designs. Can be used in industrial, electronic, power supply, and appliance manufacturing sectors. Ensures safety and performance through adherence to ENEC, UL, and CSA approvals.
