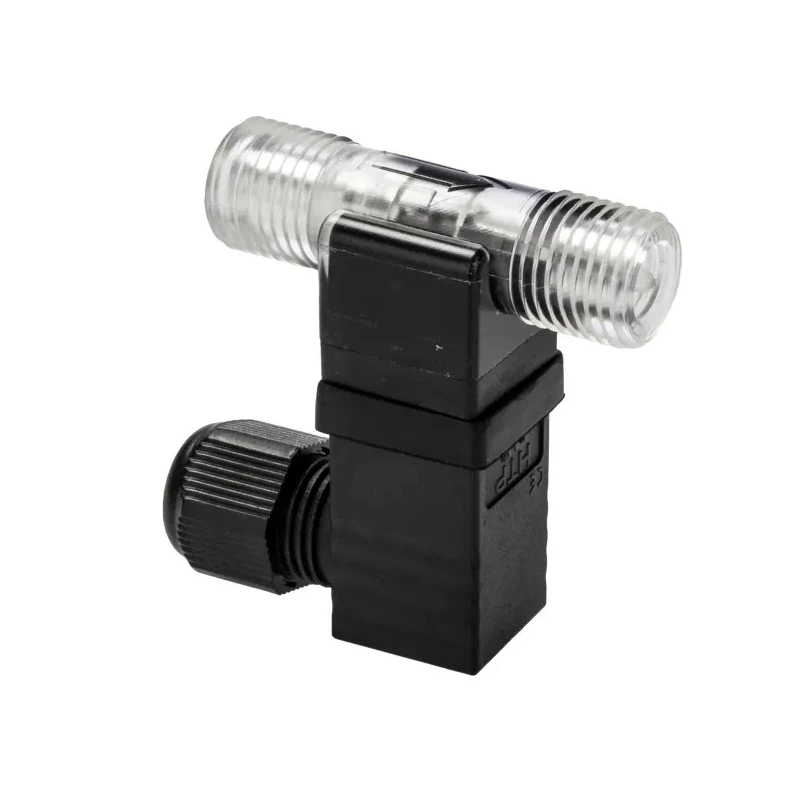

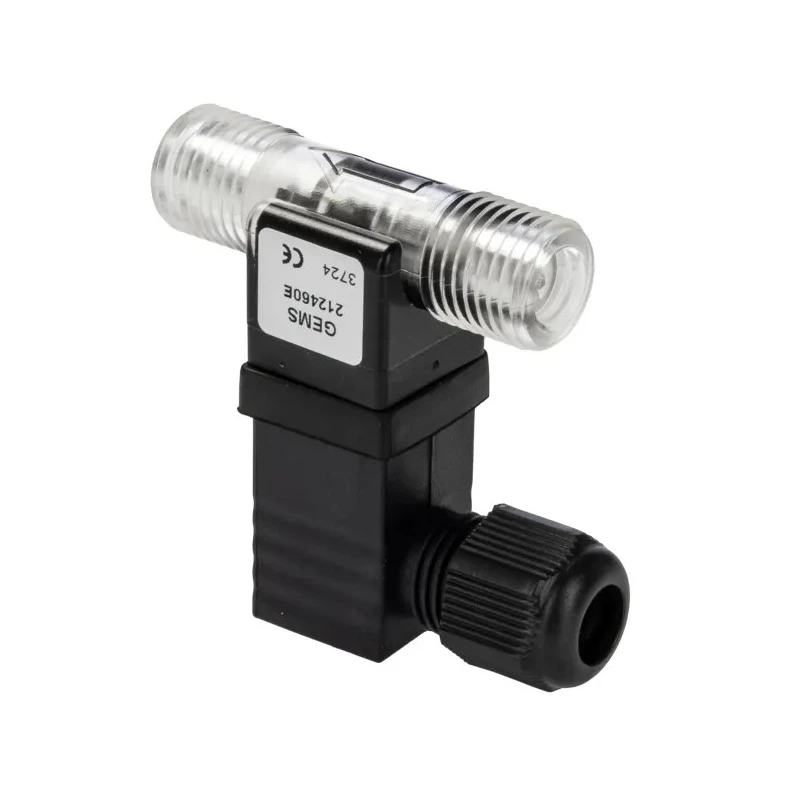

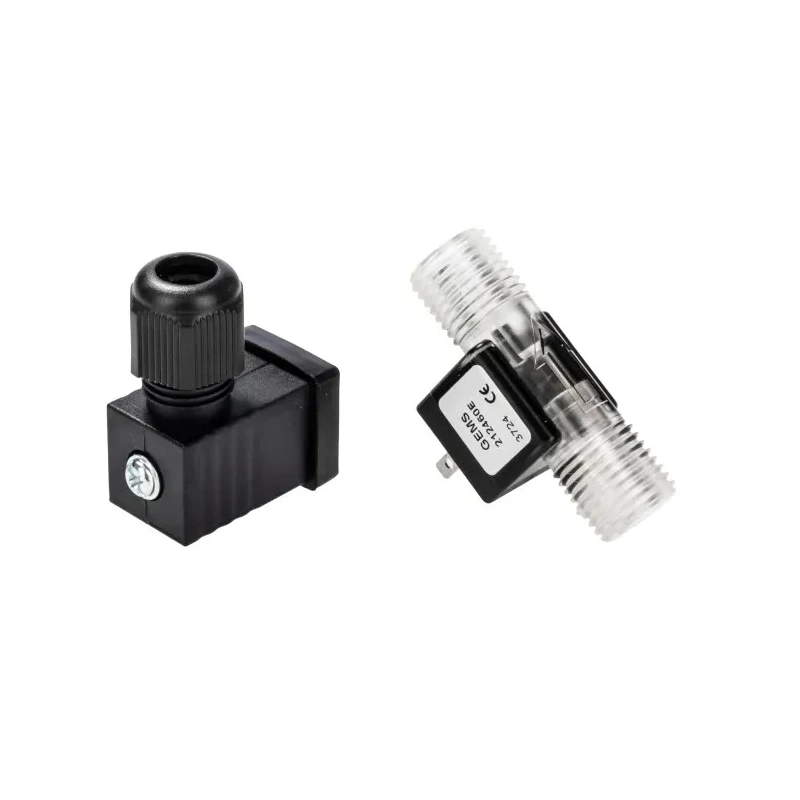

Gems Sensors FT-210 Series Turbine Flow Sensor for Liquid, 0.026gal/m Min, 0.65gal/min Max, Nylon 12 Housing, 24V 212460E
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Gems Sensors |
| Model | 212460E |
| Connection Type | 1/4 BSP Male |
| IP Rating | IP65 |
| Housing Material | Nylon 12 |
| Current Rating | 8mA |
| Series | FT-210 |
| Maximum Pressure | 24bar |
| Minimum Flow Rate | 0.026gal/m |
| Device Type | Turbine |
| Maximum Flow Rate | 0.65gal/min |
| Standards/Approvals | FDA |
| Maximum Supply Voltage | 24V dc |
| Media Monitored | Liquid |
| Minimum Media Temperature | -20°C |
| Maximum Media Temperature | 100°C |
Key Features
- Designed for accurate liquid flow measurement using turbine technology.
- Operating voltage ranges from 5V DC to 24V DC for versatile applications.
- Constructed with durable Nylon 12 housing ensuring chemical resistance.
- Suitable for pressures up to 24 bar with temperature tolerance from -20°C to 100°C.
- Equipped with a 1/4 BSP male connection for easy installation.
- Rated with an IP65 ingress protection for reliable performance in harsh environments.
- Provides a high current rating of 8mA ensuring stable sensor operation.
- Compact size ideal for low flow applications and volume dispensing control.
Product Description
Gems Sensors 212460E FT-210 Series Turbine Flow Sensor is engineered for precise liquid flow monitoring ranging from 0.026 gal/min minimum to 0.65 gal/min maximum. The sensor features advanced turbine technology housed within chemically resistant Nylon 12 material, optimized for industrial and automation environments.
Operating at a supply voltage of 5V to 24V DC with a current rating of 8mA, this sensor offers excellent stability and responsiveness, ideal for applications requiring repeatable flow rate measurements. Its rugged design supports operating pressures up to 24 bar and temperature ranges from -20°C to 100°C, making it well-suited for diverse industrial applications including liquid dispensing, volume flow control, and process monitoring.
The sensor includes a 1/4 BSP male connection type and is rated IP65 for ingress protection, ensuring durability against dust and water. FDA compliance marks its suitability for applications involving contact with liquids under regulated environments.
Turbine flow sensing provides rapid response to ON/OFF dispensing processes, delivering high accuracy within ±3% of reading. This compact sensor is particularly beneficial for installation in systems requiring small pipe diameters (1/4 inch).
Accurate low flow measurement with turbine sensor technology. Wide supply voltage range from 5V DC to 24V DC. Durable Nylon 12 housing for chemical resistance. Designed for maximum pressure up to 24 bar. Operating temperature from -20°C to 100°C.
IP65 rated for dust and water protection. Equipped with 1/4 BSP male connection. FDA approved for liquid contact applications.
This turbine flow sensor is suitable for industrial automation, laboratory fluid measurement, HVAC systems, water treatment monitoring, and manufacturing process controls offering reliable and repeatable flow measurements. Compact and robust, it ensures long operational life and low maintenance needs.
Explore the full range of flow sensor solutions in the Electronics & Electricals > Sensors > Flow Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures liquid flow with a minimum rate of 0.026 gallons per minute and a maximum rate of 0.65 gallons per minute.
It can withstand a maximum pressure of 24 bar, making it suitable for various industrial applications.
The sensor operates within a voltage range of 5V DC to 24V DC, allowing for versatile applications.
It features a 1/4 BSP male connection type for easy installation.
The housing is made of Nylon 12, which provides chemical resistance suitable for various liquids.
It can operate in temperature ranges from -20°C to 100°C, accommodating a variety of environmental conditions.
The sensor is rated IP65, ensuring protection against dust and water ingress.
This unit has a current rating of 8mA, which ensures stable operation during use.
Yes, it is FDA compliant, making it suitable for applications involving contact with regulated liquids.
It is suitable for industrial automation, laboratory fluid measurement, HVAC systems, water treatment monitoring, and manufacturing process controls.
The turbine flow sensor offers high accuracy within ±3% of the reading, ensuring reliable measurements.
The country of origin for this product is Switzerland.
