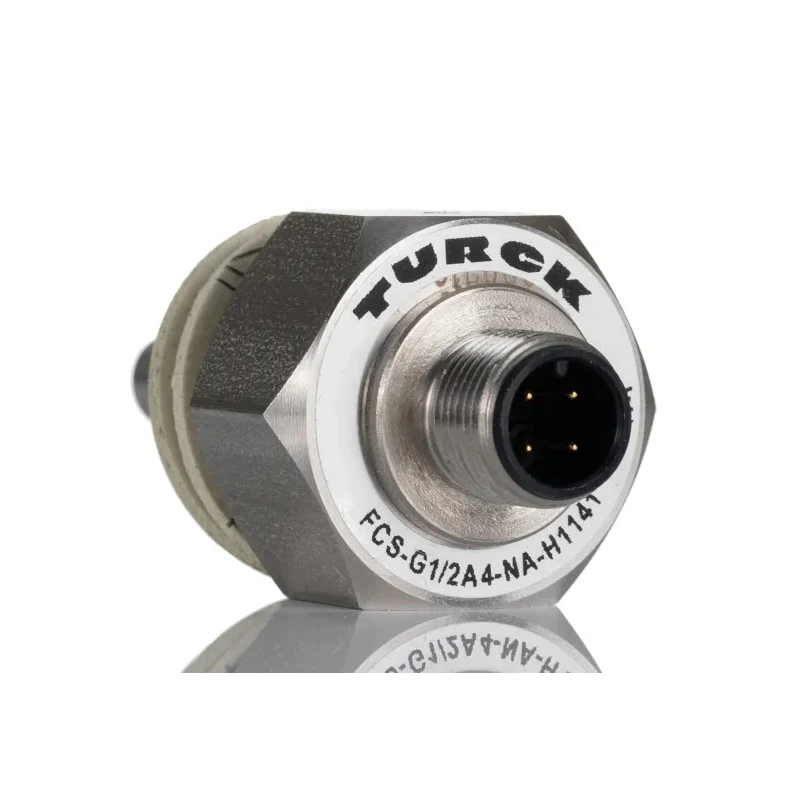

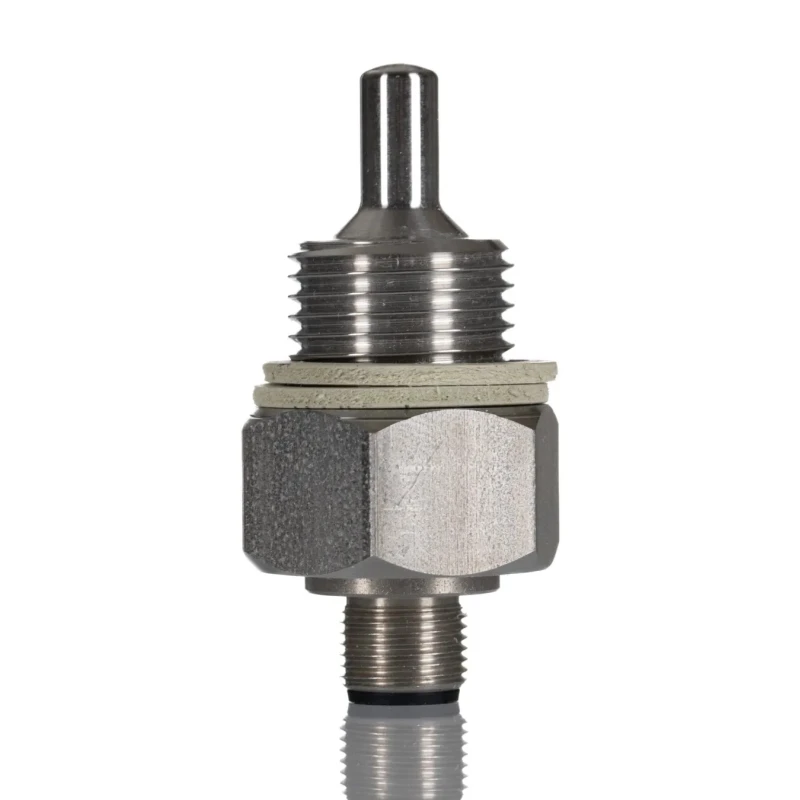

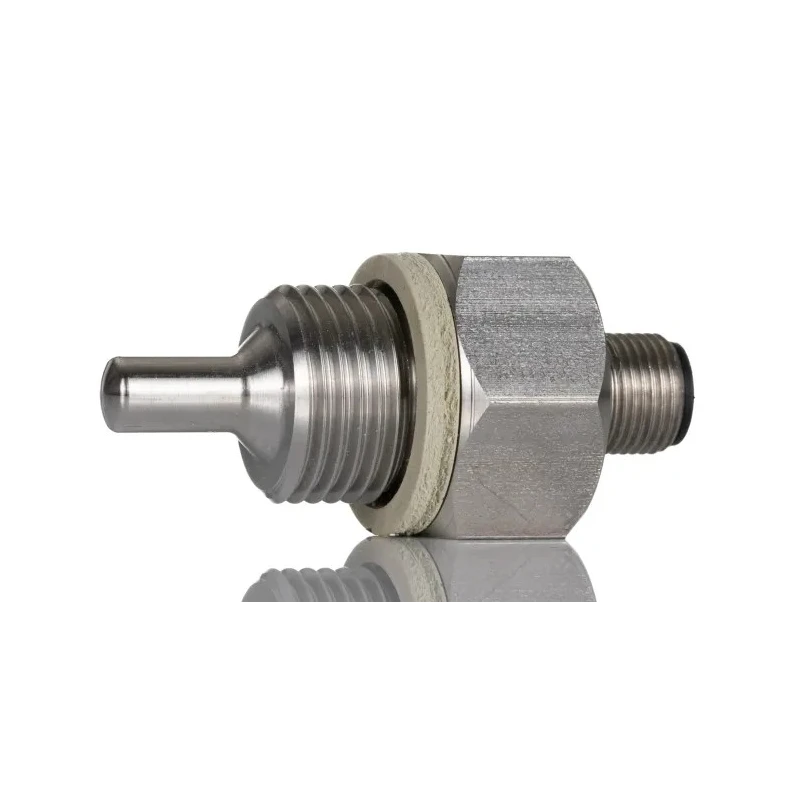

Turck Remote Sensor Flow Sensor for Gas and Liquid, Stainless Steel Housing, IP67, 24V, 150mA, 1 to 3 FCS-G1/2A4-NA-H1141

Free Delivery in India | Lowest Global Shipping Charges

Turck Remote Sensor Flow Sensor for Gas and Liquid, Stainless Steel Housing, IP67, 24V, 150mA, 1 to 3 FCS-G1/2A4-NA-H1141

Name: Turck Remote Sensor Flow Sensor for Gas and Liquid, Stainless Steel Housing, IP67, 24V, 150mA, 1 to 3 FCS-G1/2A4-NA-H1141
Brand: Turck
SKU: 140750
Price: 516.23 USD
Availability: InStock



Category Flow Sensor Brand Turck Condition New

Specifications

Country of Origin	Germany
Brand	Turck
Model	FCS-G1/2A4-NA-H1141
Connection Type	Cable
IP Rating	IP67
Housing Material	Stainless Steel
Current Rating	150mA
Series	FCS
Maximum Operating Temperature	70°C
Maximum Pressure	100bar
Minimum Flow Rate	1, 2, 3cm/s
Device Type	Remote Sensor
Maximum Flow Rate	300cm³/s
Standards/Approvals	cULus Recognised
Maximum Supply Voltage	24V
Media Monitored	Gas, Liquid
Minimum Media Temperature	-25°C
Maximum Media Temperature	80°C

Key Features

Monitors flow rates from 1, 2, and 3 cm/s minimum to 300 cm³/s maximum.
Constructed with corrosion-resistant stainless steel housing.
IP67 rated for dust-tight and water immersion protection.
Operates with 24 volts supply voltage and 150 mA current rating.
Suitable for gas and liquid media monitoring applications.
Wide operating temperature range from -25°C to 70°C ambient.
Maximum media temperature capacity up to 80°C.
Can withstand pressures up to 100 bar.

Product Description

Turck FCS-G1/2A4-NA-H1141 is a reliable remote sensor flow sensor designed for monitoring gas and liquid media in industrial environments. It employs thermodynamic measurement principles to evaluate flow rates by detecting temperature differences between the medium and its transmitting body.

Equipped with a stainless steel housing, the sensor offers exceptional resistance to corrosion and mechanical wear, making it suitable for demanding applications such as oil and gas, water treatment, and chemical processing.

The sensor supports a wide flow detection range, starting from minimum flow rates of 1, 2, and 3 cm/s to a maximum flow rate of 300 cm³/s. It operates within broad temperature limits from -25°C to 70°C ambient and can handle media temperatures up to 80°C while enduring pressures up to 100 bar. The device is powered at 24 volts with a current rating of 150 mA and interfaces via a cable connection, facilitating straightforward installation.

The IP67 ingress protection rating ensures the sensor is dust-tight and capable of surviving temporary immersion in water up to 1 meter depth for 30 minutes, making it well-suited for harsh industrial conditions.

The sensor's certification as cULus recognised verifies its compliance with applicable safety standards, assuring dependable operation. Wide flow detection range from 1 to 300 cm³/s. Durable stainless steel housing for corrosion resistance.

IP67 rated for dust and water ingress protection. Supports gas and liquid media monitoring. Operational temperature range: -25°C to 70°C ambient. Maximum media temperature up to 80°C. Maximum pressure rating of 100 bar. 24V supply voltage with 150mA current rating.

Cable connection type for easy integration. Manufactured in Germany with cULus recognition.

This Flow Sensor from Turck is ideal for automation, industrial process control, and measurement applications across sectors such as oil and gas, water treatment, and chemical manufacturing.
