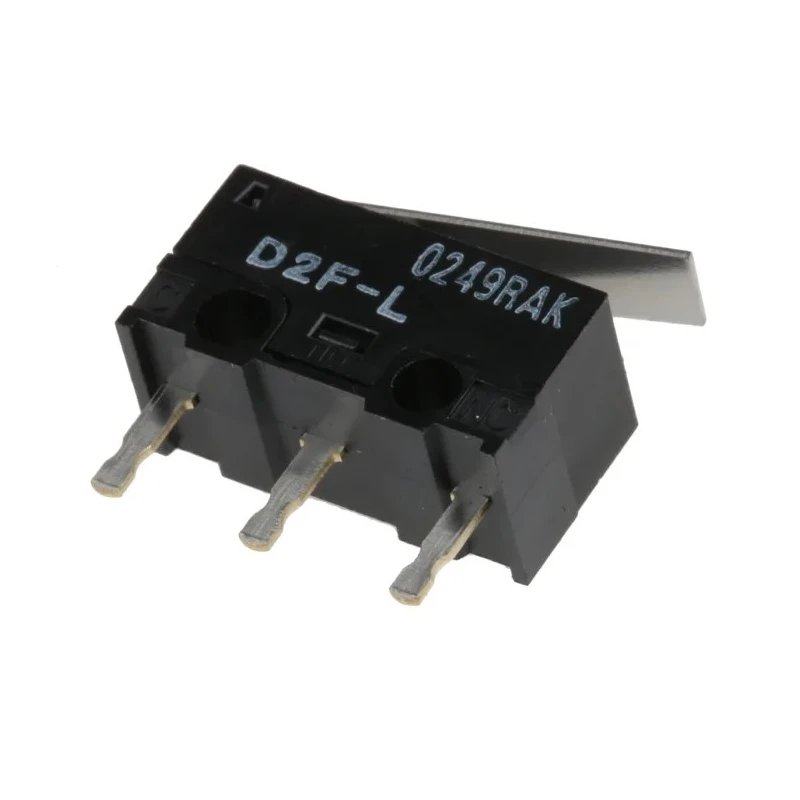

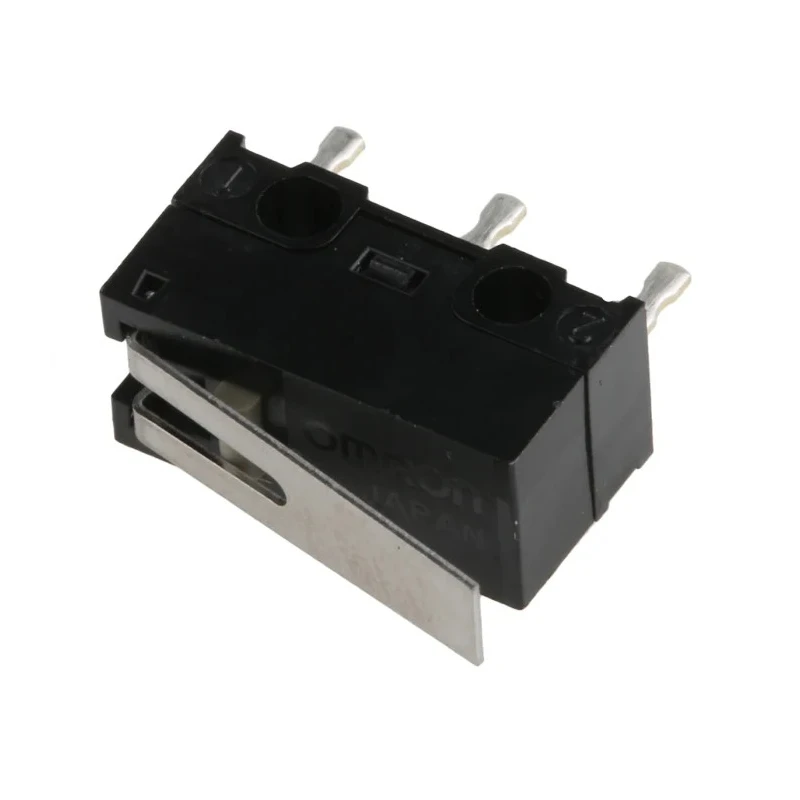

Omron Ultra Sub-Miniature Hinge Lever Micro Switch, PCB Terminal, 3A 30V dc, SPDT, IP40 D2F-L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | D2F-L |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 0.78N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Snap-In Latch |
| SPCO low profile lever microswitch,3ABrand | Saia-Burgess |
| Aratas Hinge Lever Micro Switch, Solder Terminal, 3A, 30 V dc, SPDT, IP40Brand | Omron |
Key Features
- Ultra sub-miniature snap-action microswitch suitable for home appliances and communications equipment.
- Features hinge lever actuator and PCB terminal connection for easy mounting.
- Rated for 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
- Snap-in latch microswitch type with mechanical life up to 1,000,000 operations.
- Operating temperature range from -25°C to 65°C, compliant with RoHS directives.
- Equipped with UL and CSA approvals for safety and quality assurance.
- SPDT contact configuration allows versatile switching applications.
- Compact size ideal for precision switching applications with low operating force of 0.78N.
Product Description
Omron D2F-L is an ultra sub-miniature hinge lever micro switch designed for demanding industrial, automation, and consumer electronic applications. Featuring a snap-action design and SPDT contact configuration, this micro switch provides reliable switching with a contact rating of 3A at 125Vac and 0.1A at 30Vdc with gold contacts. The PCB terminal facilitates straightforward printed circuit board mounting.
This microswitch supports a wide operating temperature range from -25°C to 65°C making it suitable for various environmental conditions. Its snap-in latch type construction ensures durability, delivering up to 1,000,000 mechanical operations. The low actuation force of 0.78N aids in sensitive and efficient switching operations.
Compliance with RoHS ensures environment-friendly materials and construction. The switch is backed by UL and CSA safety approvals, providing confidence in performance and regulatory adherence. It features an IP40 ingress protection rating suitable for general indoor environments.
The hinge lever actuator improves mechanical advantage and wear resistance, making it ideal for home appliances, audio equipment, telecommunications devices, and other precision electronic assemblies requiring compact and robust switching solutions.
Ultra sub-miniature snap-action microswitch with long life expectancy. Hinge lever actuator and PCB terminal type for enhanced usability and mounting. 3A contact rating at 125Vac silver contacts; 0.1A at 30Vdc gold contacts.
Operating temperature range from -25°C to 65°C. Snap-in latch microswitch type providing mechanical reliability. UL and CSA approvals ensure compliance with safety standards. IP40 protection class suitable for non-corrosive indoor environments.
SPDT contact configuration for versatile switching functionality.
This product is manufactured in Japan and designed for high-quality industrial and electronic applications. Browse and explore further high-grade Micro Switches and related components on EnvMart for specialized industrial automation and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
It operates within a temperature range of -25°C to 65°C.
This micro switch features a hinge lever actuator, which improves mechanical advantage and wear resistance.
The D2F-L has an IP40 ingress protection rating, suitable for general indoor environments.
It has a mechanical life of up to 1,000,000 operations.
It uses a PCB terminal connection for easy mounting on printed circuit boards.
Yes, it is UL and CSA approved, ensuring compliance with safety standards.
The operating force is 0.78N, allowing for sensitive switching operations.
This model is manufactured in Japan.
It is suitable for home appliances, audio equipment, telecommunications devices, and precision electronic assemblies.
The contact configuration is SPDT (Single Pole Double Throw), allowing for versatile switching applications.
Yes, it is compliant with RoHS directives, ensuring the use of environmentally friendly materials.
