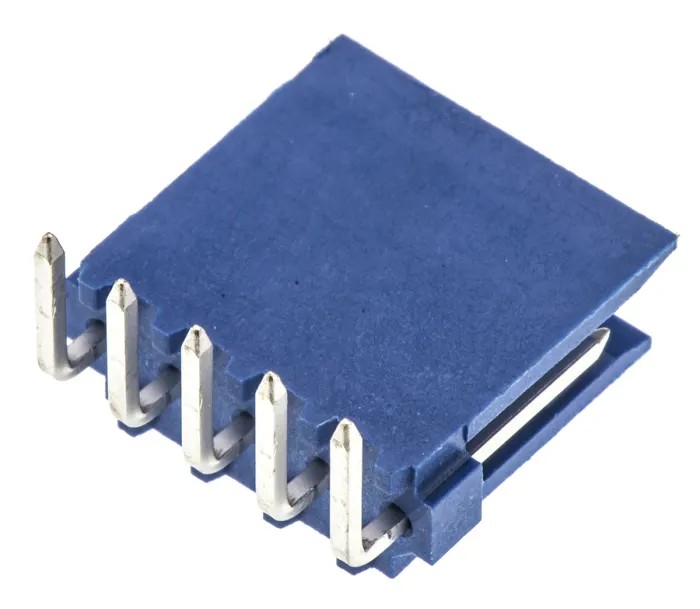

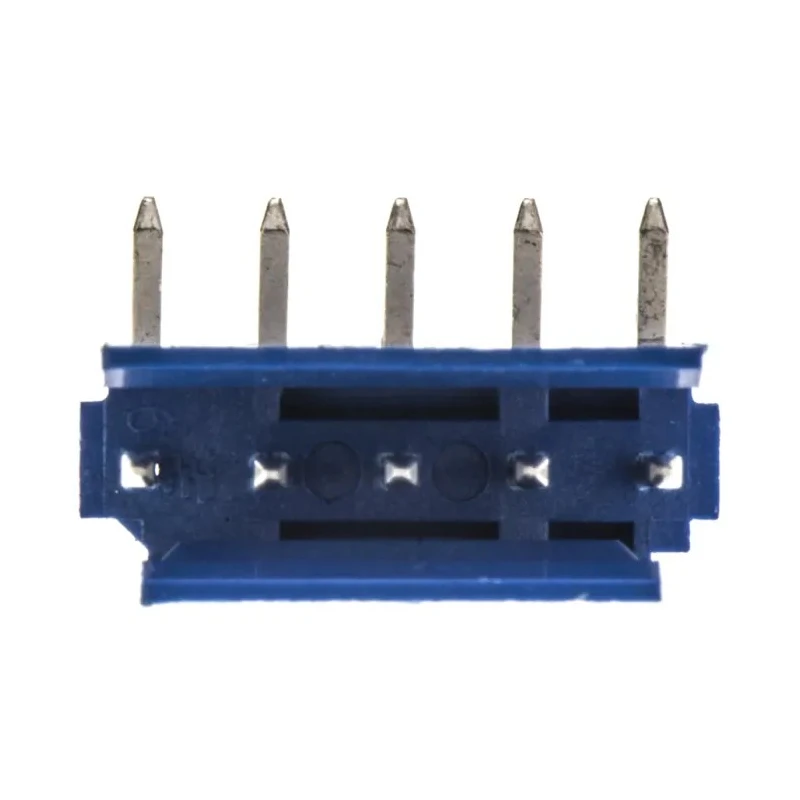

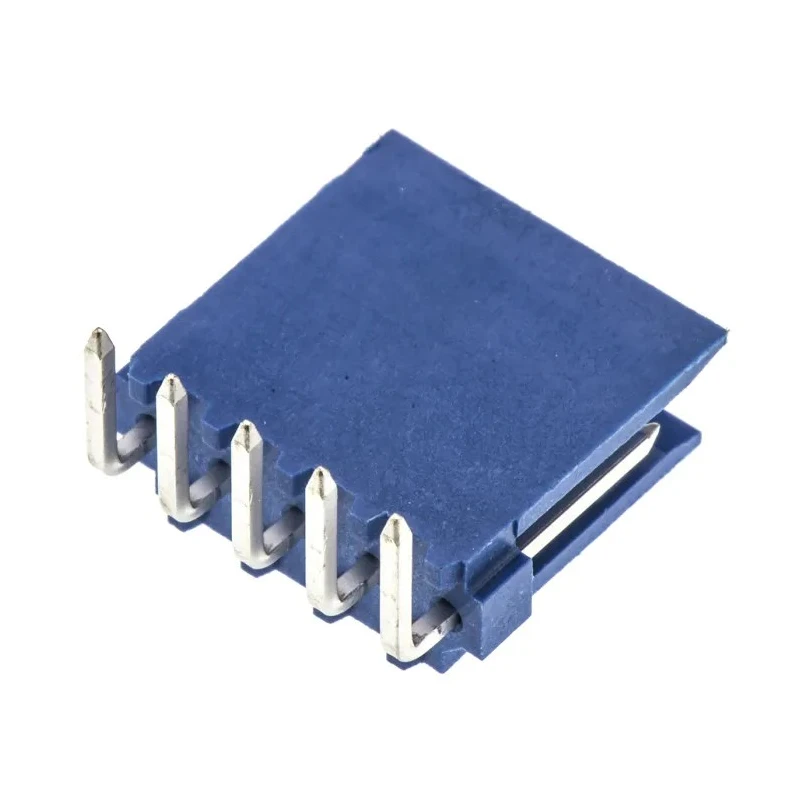

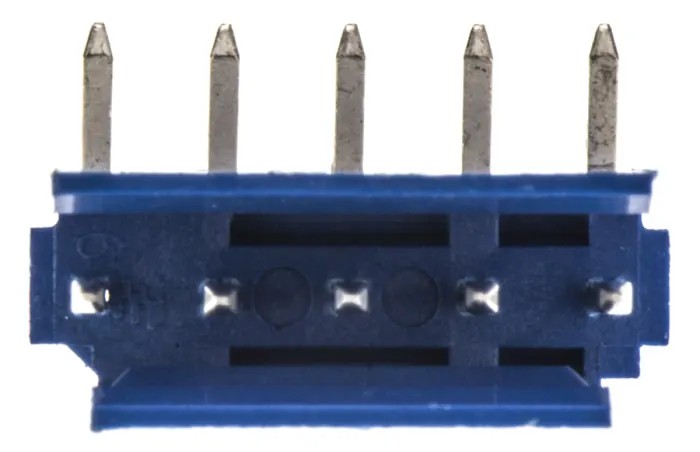

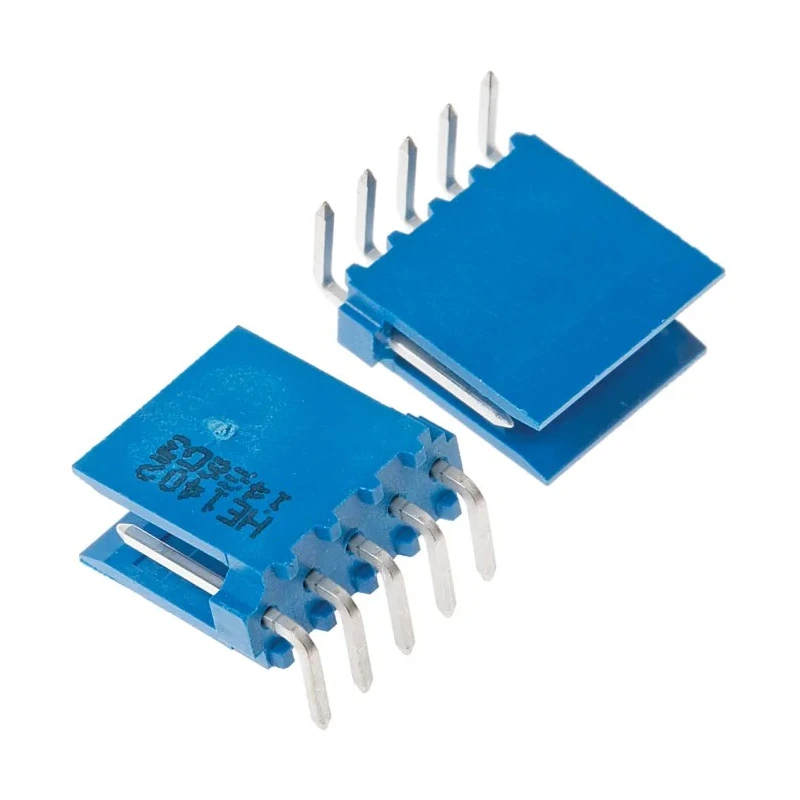

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header 5 Contact 2.54 mm Pitch 1 Row Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Features high temperature thermoplastic housing rated UL 94V-0 for durability.
- Shrouded design provides protection and prevents mismating with polarization.
- Supports current rating of 3A and voltage up to 500V.
- Made with phosphor bronze contacts plated with tin for reliable conductivity.
- Tail pin length measures 2.79mm suitable for through hole soldering.
- Suitable temperature range from -40°C to 105°C for various environments.
- Applications include automotive controls, industrial equipment, telecommunications, and medical instruments.
- Mount type is through hole with a right angle orientation suitable for wire-to-board connections.
Product Description
TE Connectivity HE14 is a right angle through hole PCB header featuring 5 contacts with 2.54 mm pitch and a single row shrouded configuration. This connector utilizes thermoplastic housing with a UL 94V-0 high temperature rating, ensuring durability and safety in demanding applications.
The shrouded design offers enhanced protection for the pins and includes polarization to prevent incorrect mating. Integrated friction locks secure the connection firmly to AMPMODU HE14 IDC receptacles, commonly used for discrete wire or ribbon cable termination.
Constructed with phosphor bronze contacts and tin plating, the TE Connectivity HE14 offers reliable electrical performance with a current rating of 3A and supports operation up to 500V. The tail pins measure 2.79 mm, optimized for through hole soldering, and the device can operate reliably in temperatures ranging from -40°C to 105°C.
This PCB header is ideal for use in various industrial environments, including automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and consumer appliances. Its wire-to-board connector system and right angle orientation make it suitable for compact PCB layouts.
High temperature thermoplastic housing rated UL 94V-0. Shrouded with polarization for mismating prevention. Phosphor bronze contact material with tin plating. Supports 3A current and 500V voltage rating. Operating temperature from -40°C to 105°C.
Right angle orientation for efficient PCB design. Through hole mount type with 2.79 mm tail pin length. Reliable wire-to-board connection system. Suitable for automotive, industrial, telecommunications, and medical industries.
The TE Connectivity AMPMODU HE14 series is a trusted interconnect system widely used in automation and control applications where reliability and economy are critical. Explore more Electronic Components and connectors at EnvMart to complete your PCB assembly needs.
