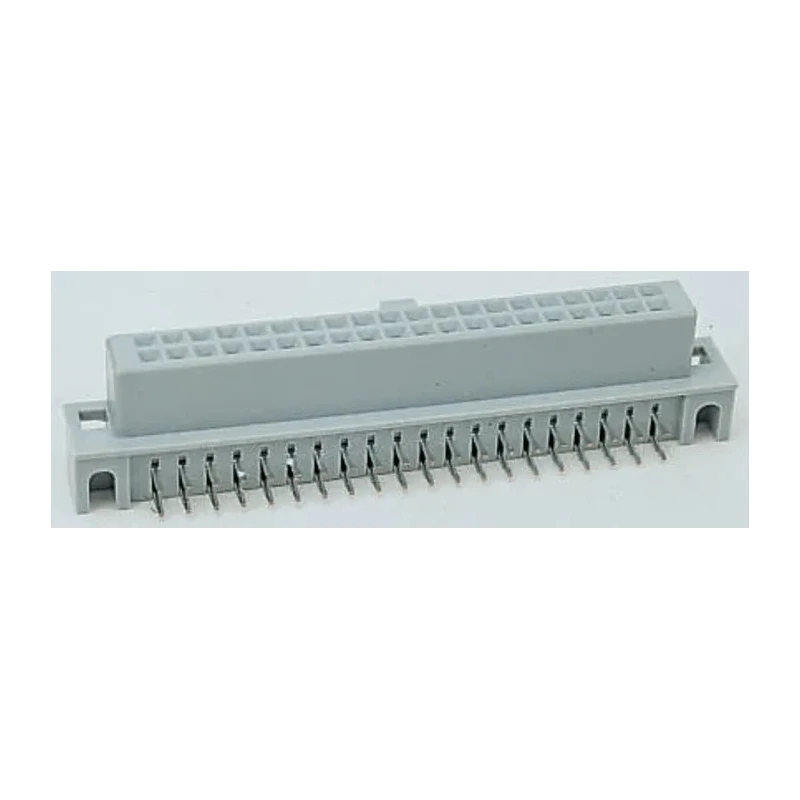

3M 5100 Series Right Angle Through Hole PCB Socket, 50-Contact, 2 Row, 2.54 mm Pitch, 12A, 1kV Voltage 5150-B7A2 PL

3M 5150-B7A2 PL Right Angle Through Hole PCB Socket from the 5100 Series is a high-quality connector designed for board-to-board electronic applications. This PCB socket features 50 female contacts arranged in 2 rows with a 2.54 mm pitch, supporting a 12A current rating and 1kV voltage, making it suitable for various industrial electronics, laboratory, manufacturing, and research environments.

The socket uses through-hole mounting for secure and stable installation on PCBs. The housing is made of glass filled polyester material, which provides excellent mechanical strength and electromagnetic interference (EMI) resistance to maintain long-term connectivity and signal integrity.

The contacts are manufactured from copper with nickel over gold plating to ensure high conductivity and corrosion resistance. The right angle orientation and polarized center bump design allow the socket to mate securely with standard low-profile shrouded headers, commonly used in board stacking where mother/daughter board configurations are needed.

This socket is rated for operation over a broad temperature range from -55°C to 105°C, making it ideal for demanding applications in industrial, automotive, and high-reliability electronics sectors. It complies with important standards including UL 94V-0 flammability and RoHS 2011/65/EU environmental directives, ensuring safety and sustainability compliance.

The insulation resistance of over one billion ohms at 500V DC provides excellent electrical protection against surges. These PCB sockets save assembly time by allowing quick component attachments without hard wiring, accelerating production and prototyping.

Applications include electronics testing, development labs, and board mounting where reliable, low-profile, and space-saving connectors are required. This product is manufactured in Japan, reflecting high quality manufacturing standards.

The socket supports 50 contacts, arranged in 2 rows for dense connections. Glass filled polyester housing enhances durability and EMI resistance. Female copper contacts plated with nickel over gold improve electrical performance.

Designed for through-hole mounting with right angle orientation. Rated for 12A current and 1kV voltage with wide temperature range (-55°C to 105°C). UL 94V-0 flammability and RoHS compliant for safety and environmental standards.

Ideal for industrial, laboratory, manufacturing, and R&D use cases. Discover more PCB Sockets and connectors in the Electronics & Electricals category at EnvMart, where quality and reliability meet industrial demands.
