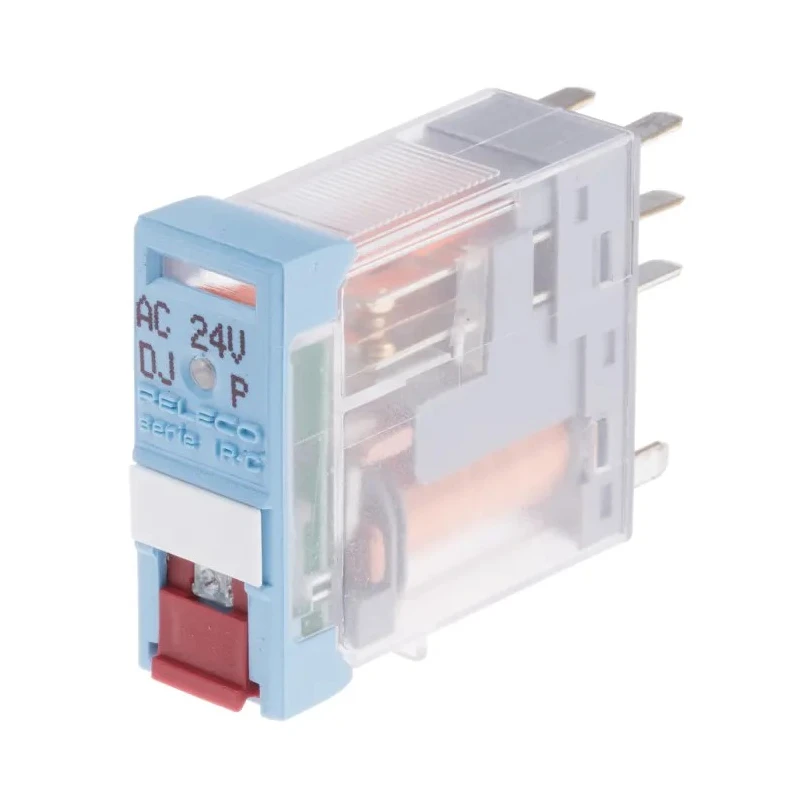

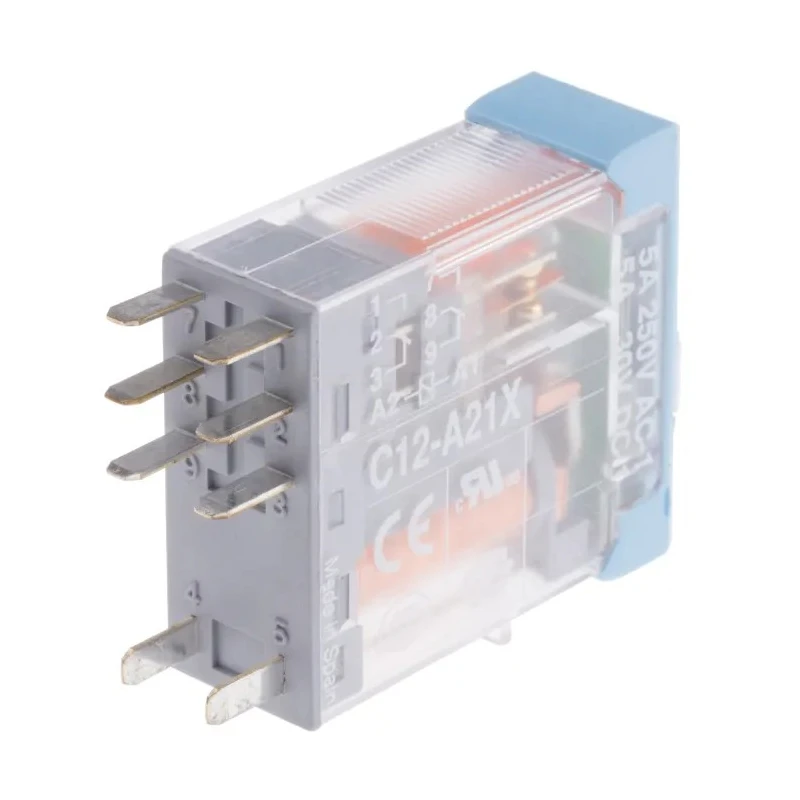

Releco PCB Power Relay 24V ac Coil 5A Switching Current DPDT C12A21X24A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 35.4mm |
| Operating Temperature Range | -20 to +60°C |
| Length | 28.8mm |
| Model | C12A21X24A |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | C12 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Quick Connect |
| Standards/Approvals | EN, UL, RoHS, IEC, CSA |
| Coil Resistance | 290Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.1W |
Key Features
- Operates with a coil voltage of 24V AC.
- Designed for PCB mounting with quick connect terminals.
- Suitable for switching up to 250V AC or DC voltage.
- Features gold plated contacts for reliable conductivity.
- Coil resistance is 290 ohms, consuming 1.1W power.
- Robust industrial terminals ensure durable connections.
- Operating temperature range is -20 to +60°C with a minimum rating of -40°C and maximum 60°C.
- Includes dual function test button for push-to-test or lift-to-latch operations.
Product Description
Releco C12A21X24A PCB Power Relay with 24V AC coil voltage and 5 amp switching current offers reliable electrical switching performance for industrial and automation applications. This relay features a double pole double throw (DPDT) contact configuration, suitable for controlling multiple circuits simultaneously.
The unit is designed for printed circuit board (PCB) mounting and is equipped with quick connect terminals for efficient installation. The relay's coil resistance of 290 ohms and coil power of 1.1 watts ensure low power consumption and efficient operation.
This power relay supports maximum switching voltages of 250V AC and 250V DC, making it ideal for high voltage applications. Contact material is gold plated to provide optimal conductivity and corrosion resistance, ensuring longevity and consistent performance.
Its compact size (28.8 mm length and 35.4 mm height) and robust industrial terminals make it suitable for tight installations and harsh operating environments. The relay operates reliably within a broad temperature range from -20°C up to +60°C and can withstand extreme minimum and maximum temperatures of -40°C and +60°C respectively.
The integrated dual-function test button allows either push-to-test or lift-to-latch functionality, providing convenient testing and manual operation. Compatible accessories include 16 mm wide sockets and bridge bars for linking coil and contact connections, sold separately.
Certified under recognized standards including EN, UL, RoHS, IEC, and CSA, the Releco C12A21X24A is a high-quality power relay suitable for industrial, automation, electrical, and signal conditioning applications.
Operates with 24V AC coil voltage and 5A switching current. DPDT contact configuration for dual circuit control. Gold plated contacts ensure efficient conductivity. Test button enables push-to-test or lift-to-latch operation.
Compact PCB mount with quick connect terminals. Wide operating temperature range of -20 to +60°C. Includes robust industrial terminals for durability. Compliant with EN, UL, RoHS, IEC, and CSA standards. Explore more Power Relays and contactors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V AC.
It supports maximum switching voltages of 250V AC and 250V DC.
This power relay has a switching current rating of 5A.
The relay features a double pole double throw (DPDT) contact configuration.
The coil resistance is 290 ohms.
It has a length of 28.8 mm and a height of 35.4 mm.
The operating temperature range is from -20°C to +60°C, with extreme ratings of -40°C to +60°C.
This unit is designed for PCB mounting with quick connect terminals.
The contacts are made of gold plated material for optimal conductivity and corrosion resistance.
It is certified under EN, UL, RoHS, IEC, and CSA standards.
It includes a dual-function test button for push-to-test or lift-to-latch operations.
Compatible accessories include 16 mm wide sockets and bridge bars for linking coil and contact connections, sold separately.
