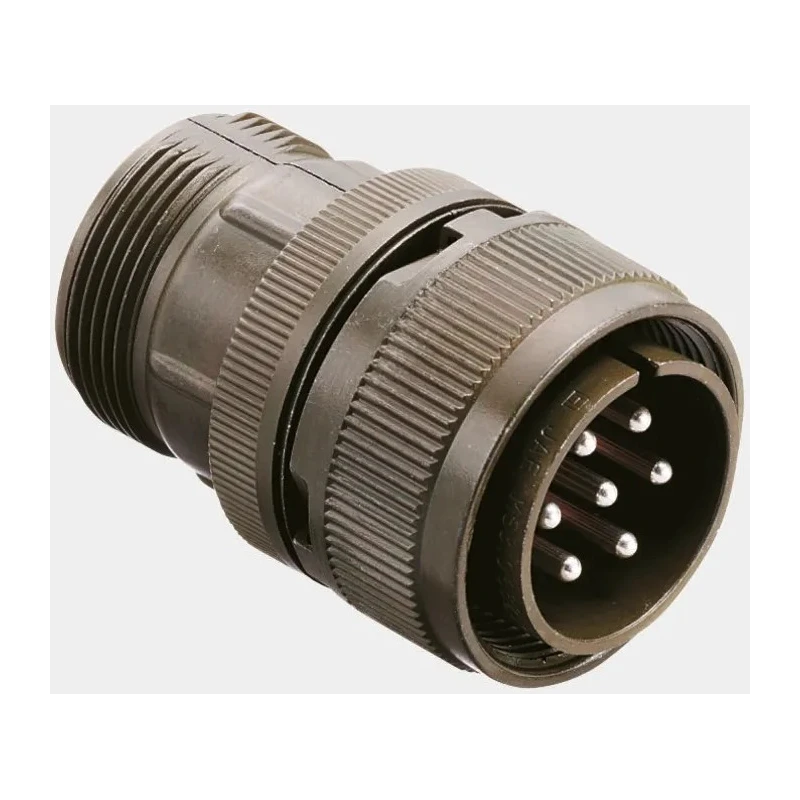

JAE Copper Alloy Straight 10 Way Cable MIL Spec Circular Connector Male Black Silver Plated Contacts Shell N/MS3106B18-1P
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Colour | Black |
| Orientation | Straight |
| Current | 13A |
| Model | N/MS3106B18-1P |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Copper Alloy |
| Series | N/MS |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 18 |
| Military Standard | MIL-5015 |
| Connector Size | Standard |
| Shell Plating | Zinc |
Key Features
- The connector supports 10 contacts with male contact gender.
- Operates at voltage up to 500V and current rating of 13A.
- Designed for solder termination with straight orientation.
- Housing and shell plating are zinc with a black coloration.
- Operating temperature ranges from -30°C to 85°C.
- Military standard compliance MIL-5015 ensures robust performance in demanding environments.
- Contact plating is silver to provide reliable electrical conduction.
- Connector size is standard, ensuring compatibility with industry equipment.
Product Description
The JAE N/MS3106B18-1P is a MIL Spec Circular Connector designed for industrial, military, and electronic applications requiring reliable, robust cable interconnections. This 10-way cable mount connector features male contacts crafted from copper alloy with silver plating for enhanced conductivity and corrosion resistance. The black zinc housing and shell plating provide durability and environmental protection.
This connector operates at a voltage rating of 500V and supports a current of 13A, making it suitable for power and signal transmission in a wide range of electronic components and devices. The solder termination type and straight orientation ensure streamlined cable installation.
Constructed to meet MIL-5015 military standards, the N/MS3106B18-1P can withstand harsh operating conditions, including a temperature range from -30°C to 85°C. This ensures dependable performance in extreme environments typical of industrial, manufacturing, and military use cases.
The shell size 18 and standard connector size facilitate easy integration into existing systems, while the male contact and connector gender provide reliable mating with counterpart connectors. The silver plating on the contacts further enhances signal integrity and longevity.
Manufactured in Japan, this JAE connector combines high-grade materials and precise engineering. It is well-suited for applications in electronics components, power and connectors systems, and specialized military-grade equipment.
The connector supports 10 male copper alloy contacts with silver plating. Voltage rating of 500V and current capacity of 13A. Zinc housing and shell plating with a durable black finish. Compliance with MIL-5015 military standards for harsh environments.
Operating temperature from -30°C to 85°C ensures versatility. Solder termination type with cable mount facilitates installation. Shell size 18, standard connector sizing for compatibility. Manufactured in Japan for assured quality.
Explore more Mil Spec Circular Connectors and related products on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 500V and supports a current of 13A.
It has an operating temperature range from -30°C to 85°C, making it suitable for various environments.
This connector features a solder termination type, designed for cable mounting.
It supports 10 male contacts made from copper alloy with silver plating.
The housing and shell are made of zinc, while the contacts are copper alloy with silver plating.
Yes, it complies with the MIL-5015 military standard, ensuring robust performance in demanding environments.
The shell size for this model is 18, which is a standard size for compatibility with industry equipment.
The housing of this connector is black, providing a durable finish.
This connector is manufactured in Japan.
It is designed for industrial, military, and electronic applications requiring reliable cable interconnections.
The connector is designed with a straight orientation for streamlined installation.
The silver plating on the contacts enhances electrical conduction and corrosion resistance, ensuring reliable performance.
